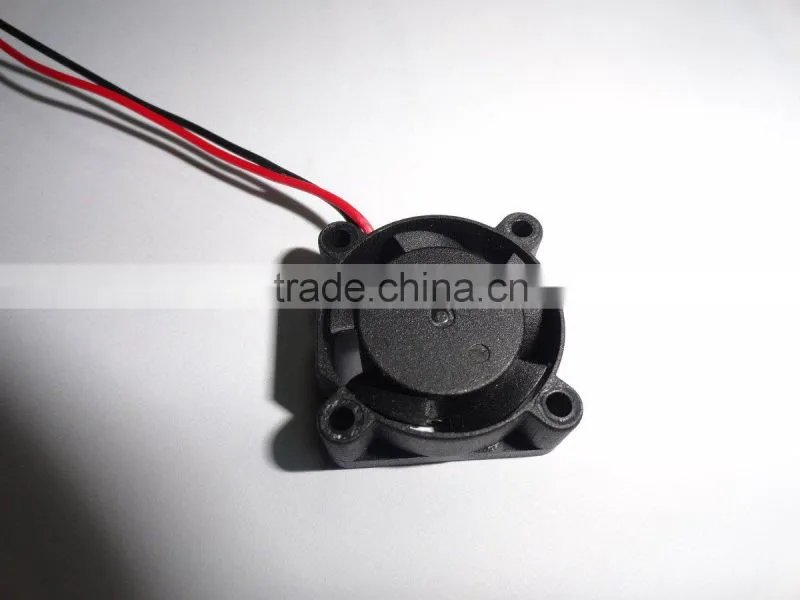

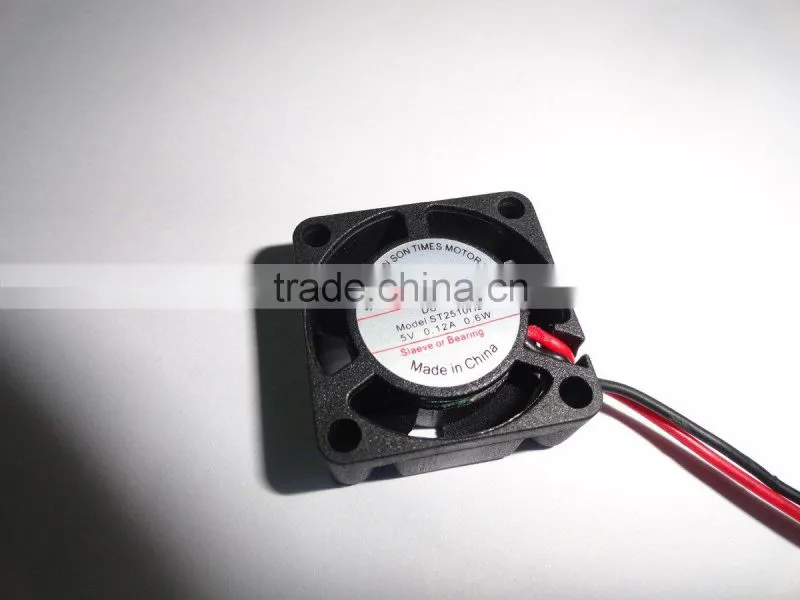

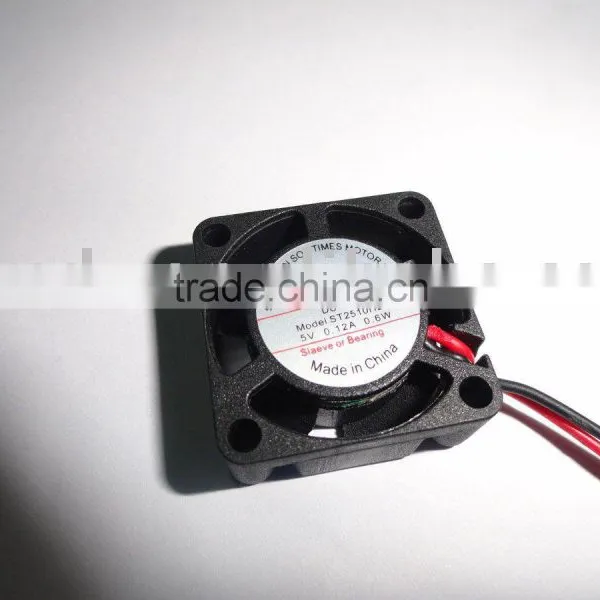

25*10mm Excellent Quality Mini dc Fan

25*10mm Excellent Quality Mini dc Fan thumbnail-1
25*10mm Excellent Quality Mini dc Fan photo-1
US$ 0.5 - 1.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Son Times Electronics & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Free Standing
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name SON TIMES
Model Number ST2510HS(B)
Voltage 5/12V
Power 0.50-1.44W
Air Volume 7-10CFM
Speed 8000-12000RPM
Certification CE

Specifications

1.excellent quality mini dc fan
2.size:25*10mm
3.rated voltage:5/12v 8000-12000RPM
4.ball bearing/sleeve
5.16-20dB



Frame size(mm) 25*25*10mm
Bearing type ball bearing/sleeve
Rated voltage 5/12v
Rated speed 8000-10000RPM
Max air flow 7-10CFM
Max pressure 0.11-0.18inch-H2O
Max noise 16-18dBA
Functions by impedance,FG
Safety approvals CE ROHS
Dielectric Strength  5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance 100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature -10~80 degree C(+14~176 degree F)
Storge temperature -40~75 degree C(-40~167 degree F)
Protection Motor protection and polarity protection
Lead wire  UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material Black PBT (UL94V-0) glass filled
frame material PBT
Weight 6g

 25*10mm excellent quality mini dc fan25*10mm excellent quality mini dc fan
