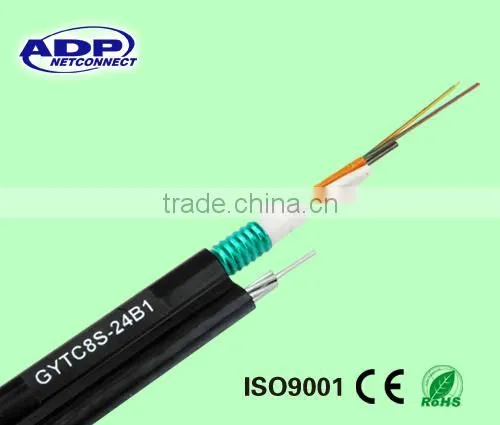

Figure 8 Single Mode Fiber Optic Cable for Aerial (GYTC8S)

Specifications

Figure 8 Single Mode Fiber Optic Cable for Aerial (GYTC8S)
1.Ease construction and less affected
2.Reasonable structure

Figure 8 Single Mode Fiber Optic Cable for Aerial (GYTC8S)







Technical parameters:



Items	Unit	Index
Core No.		2-30	32-36	38-60	62-72
Diameter/Height	mm	10.1/18.1	10.4/18.4	10.7/18.7	11.4/19.4
Unit weight	Kg/km	195	205	210	225
Max. Allowable tension	N	5000/2000 (short term/long term)
Max. Allowable crush	N/100mm	1000/300 (short term/long term)
Attenuation	dB/km	≤0.36dB/km@1310nm, ≤0.22dB/km@1550nm
Minimum bend radius	mm	During installation 20D,During Service 10D
Operating temperature	°C	-40~+60







Structure drawing:



Application
Used for core net, city local net and OAN and applied to aerial.







Product Characteristics:







1. The messenger wire together with OFC as a whole part. OFC installation can be completed at one time. Ease construction and less affected by environment, reducing installation cost.







2. It adopts stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telephone pole.







3. The reasonable structure design and precision control for over length ensure OFC with excellent performances of mechanical tensile strain and environment temperature.







4. The close structure of SZ layer stranding preventing optical fiber from stress under bad environment.







5. It could ensure moisture and water resistant performance of OFC with filling compound filled outside strength member and inside cable core.







6. It could ensure much better moisture resistance and improve side press resistance perform with longitudinal steel plastic tape wrapping cable core.



Cables Pictures:









Packaging details:







Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by







strong wooden battens ;or any other package u see from the market we can make for u as well,







any OEM order is welcome,or as your requirement.











Delivery time:







As for one 4'HQ container,we can finish them 5-8 days after receiving the deposit and we usually







complete the order within 10-15days.It also depends on the items and the order quantities.











Payment terms:







1) L/C at sight







2)T/T: 30% deposit by T/T, 70% balance by T/T before shipment.







3)Can as per client's request.
