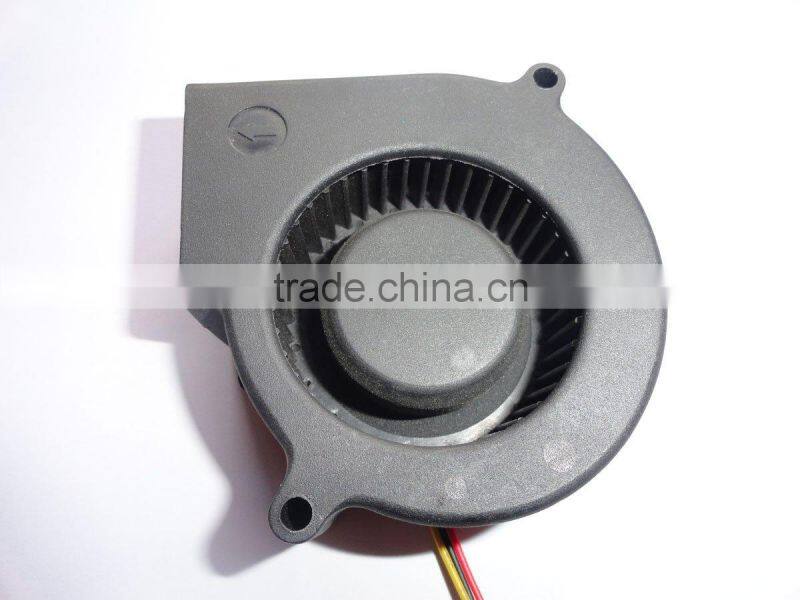

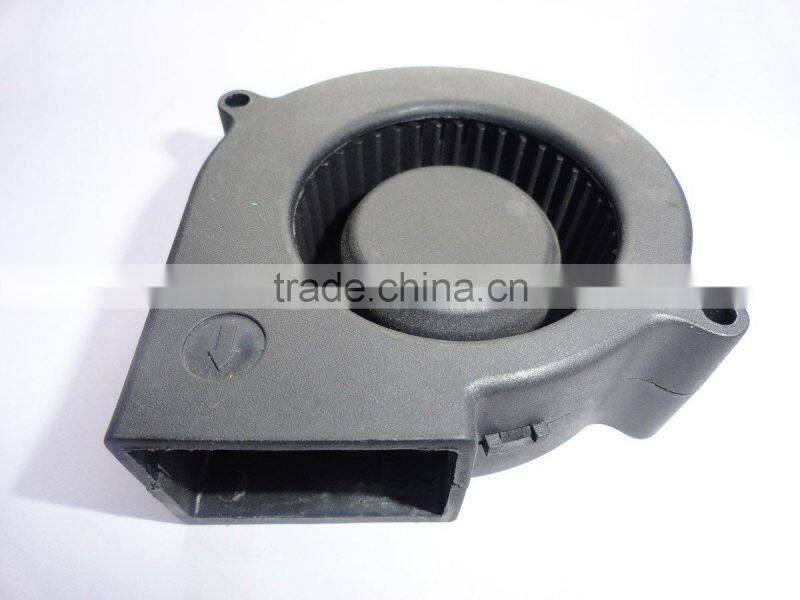

50*15mm dc Axial Blower Fan

50*15mm dc Axial Blower Fan thumbnail-1
50*15mm dc Axial Blower Fan photo-1
US$ 0.5 - 1.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Son Times Electronics & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Free Standing
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name SON TIMES
Model Number ST5015HS
Voltage 5/12/24V
Power 0.7-1.92W
Air Volume 2.47-3.88CFM
Speed 3500-5500RPM
Certification CE

Specifications

1 dc axial .blower fan
2.size:50*15mm
3.ball bearing/sleeve
4.rated voltage:5/12/24v,25-35CFM
5.low noise,long life

50*15mm dc axial blower fan50*15mm dc axial blower fan



  Frame size(mm) 50*50*15mm
  Bearing type ball bearing/sleeve
  Rated voltage 12/24v/48v
  Rated speed 3500-5500RPM
  Max air flow 25-35CFM
  Max pressure 0.28-0.46inch-H2O
  Max noise 27-30dB
  Functions by impedance,FG
  Safety approvals CE ROHS
  Dielectric Strength  5mA max at 1500VAC for 1 min between lead wire and frame
  Insulation resistance 100M ohm between lead wire and frame(DC 500V)
  Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
  Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
  Operation temperature -10~80 degree C(+14~176 degree F)
  Storge temperature -40~75 degree C(-40~167 degree F)
  Protection Motor protection and polarity protection
  Lead wire  UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
  fan blade material Black PBT (UL94V-0) glass filled
  frame material PBT
  Weight 30g
