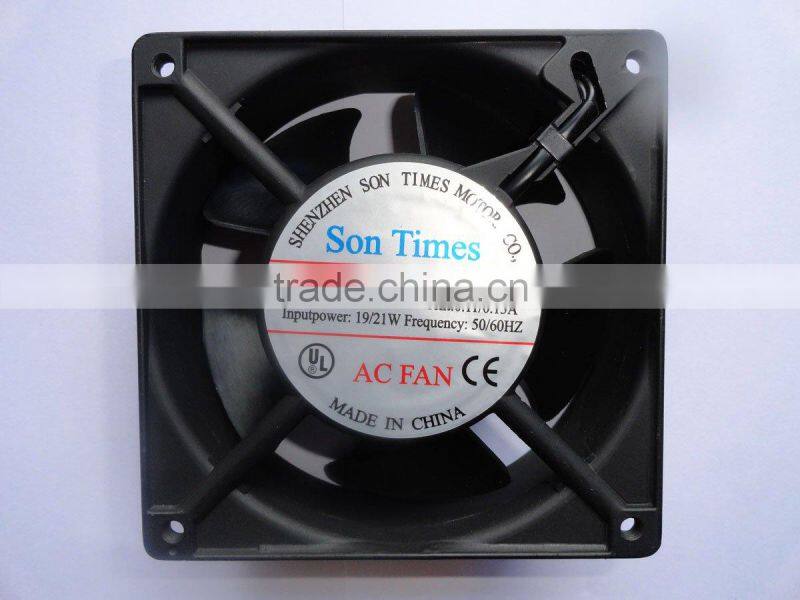

120*120*38mm Brushless Cooling Fan
US$ 3.18 - 4.2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Axial Transformer Cooling FanUS$ 4.14 - 4.5MOQ: 1000 Pieces -
AC Mini Fan 220v 80X80X25MMUS$ 1.5 - 2MOQ: 500 Pieces
-
Super Large Airflow 110v to 230v ac Fan 172*50mmUS$ 7 - 10MOQ: 500 Pieces
-
80*80*38mm Excellent Quality 110-380V AC Ventilator FanUS$ 4 - 5MOQ: 500 Pieces
-
Excellent Quality ac Axial Fan 110v 230vUS$ 3 - 6MOQ: 500 Pieces
Electric Current Type
AC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
Son Times
Model Number
ST12038A1HBL
Voltage
110v
Power
26.4/23.1w
Air Volume
77/92cfm
Speed
2600/3000rpm
Certification
CE
Specifications
1.high quallity computer cooling fan2.current:0.24/0.21amp
3.speed:2600/3000rpm
4.sleeve/ball bearing
5.hot sale, high spee
high quallity computer cooling fan
| Frame size(mm) | 120*120*38mm |
| Bearing type | ball bearing/sleeve |
| Rated voltage | 12/24v/48v |
| Rated speed | 2400-3000RPM |
| Max air flow | 95-120CFM |
| Max pressure | 0.33-0.42inch-H2O |
| Max noise | 31-33dBA |
| Functions | by impedance,FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~80 degree C(+14~176 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 |
| fan blade material | Black PBT (UL94V-0) glass filled |
| frame material | PBT |
| Weight | 262g |
