Machinery Instrument ac Axial Fan 20020060mm

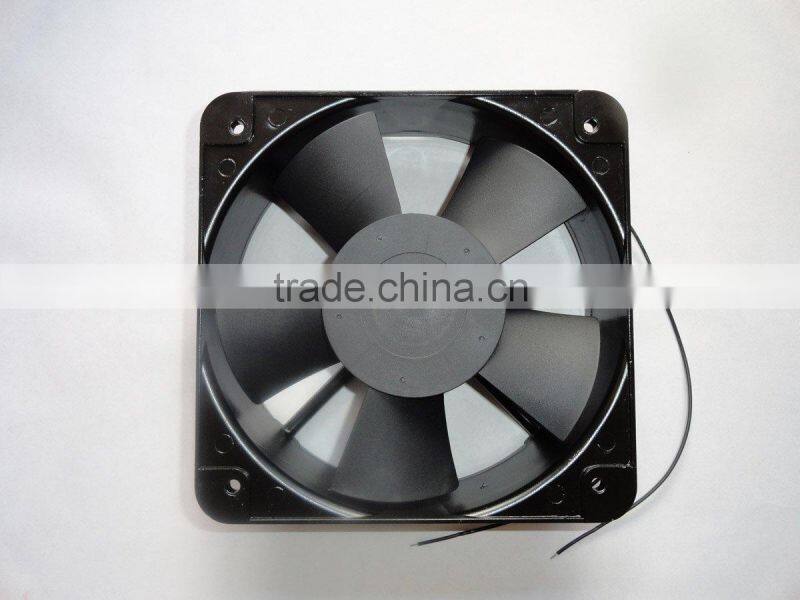

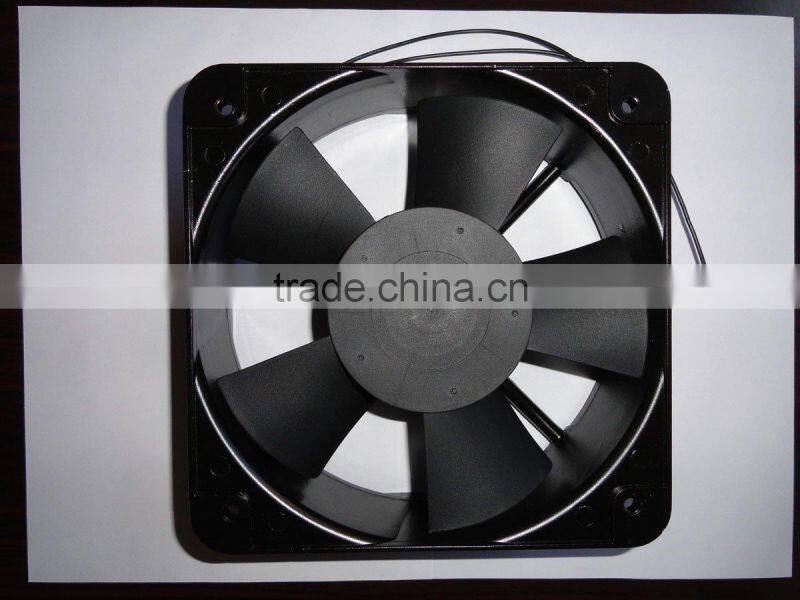

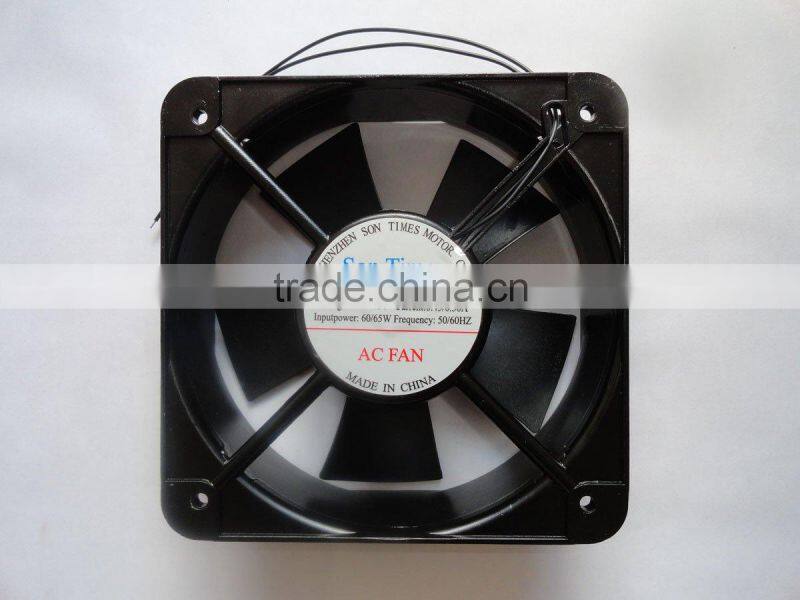

Name: Machinery Instrument ac Axial Fan 200*200*60mm
Brand: son times
SKU: 100829395
Availability: InStock

US$ 8 - 10 MOQ: 500 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type AC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name son times

Model Number ST20060H2B

Voltage 110-220V

Power 50-72W

Air Volume 350CFM

Speed 2500-2600RPM

Certification CE

Specifications

1.machinery instrument ac axial fan
2 size:200*200*60mm
3. ball bearings
4.rated voltage:110/220v
5.high speed,long life

instrument ax axial fan 200*60mm

Frame size(mm)	20020060mm
Bearing type	ball bearing
Rated voltage	115V/50,60HZ, 230V/50,60HZ
Rated speed	2500-2600RPM
Max air flow	335-350CFM
Max pressure	17-19mmH2O
Max noise	64-66dBA
Functions	by IC,by IC with FG,by IC with RD,PWM,PWM+FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic material	Black PBT (UL94V-0) glass filled
