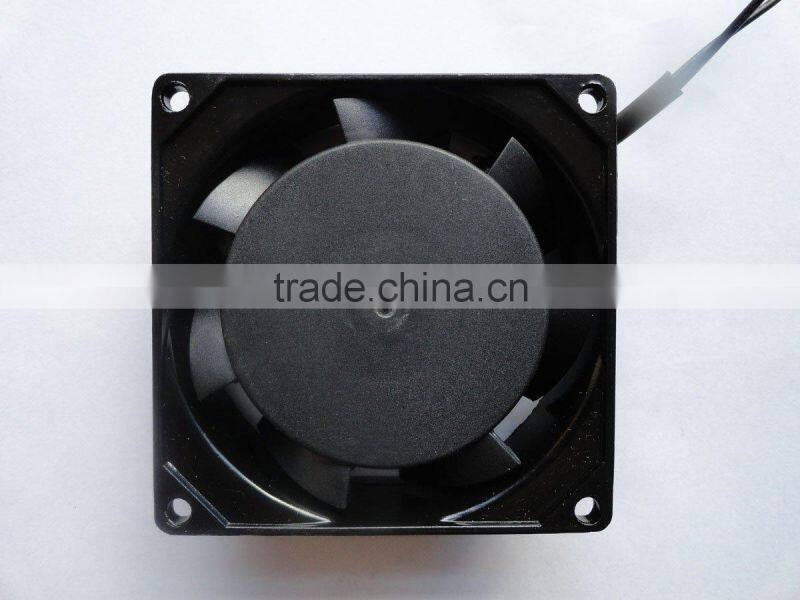

Excellent Quality,good Price ac Axial Fan

Name: Excellent Quality,good Price ac Axial Fan
Brand: son times
SKU: 100829347
Availability: InStock

US$ 1.5 - 2 MOQ: 500 Pieces

Key Specifications

Application:

Power Supply

Type:

Fan

Heatsink Material:

Aluminum

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Application Power Supply

Type Fan

Heatsink Material Aluminum

Brand Name son times

Model Number ST8025HB

Place of Origin Guangdong, China

Specifications

1.excellent quality good price ac axial fan
2.size;80*80*25mm
3.ball bearing/sleeve
4.long life
5.rated voltage:115 230v

excellent quality good price ac axial fan

good petitive price axial ac fan 8025

Frame size(mm)	808025mm
Bearing type	ball bearing/sleeve
Rated voltage	115V/50,60HZ, 230V/50,60HZ
Rated speed	2300-2800RPM
Max air flow	45-55CFM
Max pressure	3.0-4.5mmH2O
Max noise	29-34dBA
Functions	by IC,by IC with FG,by IC with RD,PWM,PWM+FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic material	Black PBT (UL94V-0) glass filled
