10/100Mbps Single Mode Optical Ethernet Fiber Optic to RJ45 Fiber Media Converter 1310/1550nm SC 20KM
Features:
10/100Base-TX to 100Base-FX Media Converter
1)5 ports 10/100M ethernet switch with built in transceivers and memory;
2)Build in SRAM for frame buffer;
3)Build in storage of 1K MAC address;
4)Compliance with IEEE802.3, 802.3u, 802.3x standard;
5)Compliance CSMA/CD Protocol;
6)Converter twisted-pair cable to 100Base-Fx fiber;
7)Support 10/100Mbps auto-negotiation for RJ45 ports;
8)Support auto MDI/MDI-X function for RJ45 ports;;
9)Passed maximum frame size 1536 bytes;
10)Broadcast storm protection;
11) Fiber Port SC/PC (single/multi-mode ),the transmission distance can up to 120Km.RJ45 Port: 100m for 100Base-Tx UTP Cat.5 cable.
12) Inside power: AC 220/110V
13) Power Consume: < 5W.
Technical Specifications :
1. Standard Protocol: IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
2.Connector:Four RJ-45 connector,one SC/ST fiber connector .
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter: outside: 5V DC 3A
built-in: 110-265V AC 48V DC 12V DC
5. Environmental temperature: 0℃-60 ℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8.Fiber:50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
9. Dimensions: 40mm x 110mm x 140mm

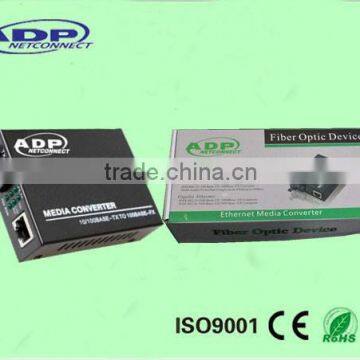

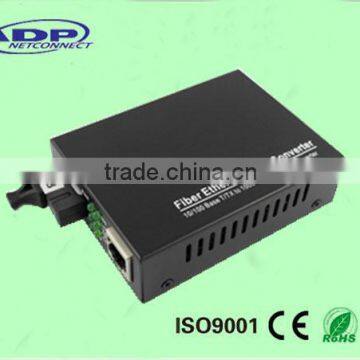

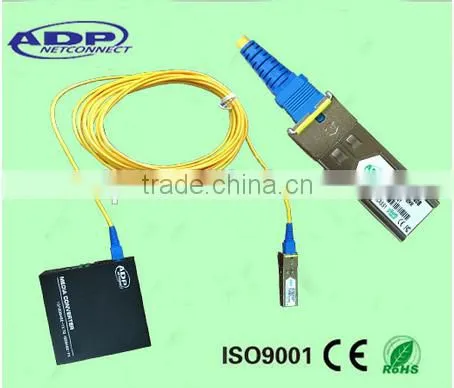

Photos :
Factory and company photos :
Certificates :
