10/100M 1 Fiber Ports + 4 Rj45 Ports Fiber Optical Media Conveter

10/100M 1 fiber ports + 4 rj45 ports fiber optical media conveter

Features:

10/100Base-TX to 100Base-FX Media Converter

1)5 ports 10/100M ethernet switch with built in transceivers and memory;

2)Build in SRAM for frame buffer;

3)Build in storage of 1K MAC address;

4)Compliance with IEEE802.3, 802.3u, 802.3x standard;

5)Compliance CSMA/CD Protocol;

6)Converter twisted-pair cable to 100Base-Fx fiber;

7)Support 10/100Mbps auto-negotiation for RJ45 ports;

8)Support auto MDI/MDI-X function for RJ45 ports;;

9)Passed maximum frame size 1536 bytes;

10)Broadcast storm protection;

11)  Fiber Port SC/PC (single/multi-mode ),the transmission distance can up to 120Km.RJ45 Port: 100m for 100Base-Tx UTP Cat.5 cable.

12)  Inside power: AC 220/110V

13)   Power Consume: < 5W.

Technical Specifications :

1. Standard Protocol: IEEE802.3 10 Base-T standard

                                       IEEE 802.3u 100Base-TX/FX standard

2.Connector:Four RJ-45 connector,one SC/ST fiber connector .

3. Operation mode: full duplex mode or half duplex mode

4. Power supply parameter: outside: 5V DC 3A

             built-in: 110-265V AC 48V DC  12V DC

5. Environmental temperature: 0℃-60 ℃

6. Relative humidity: 5%-90%

7. TP cable: Cat5 UTP cable

8.Fiber:50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.

9. Dimensions: 40mm x 110mm x 140mm

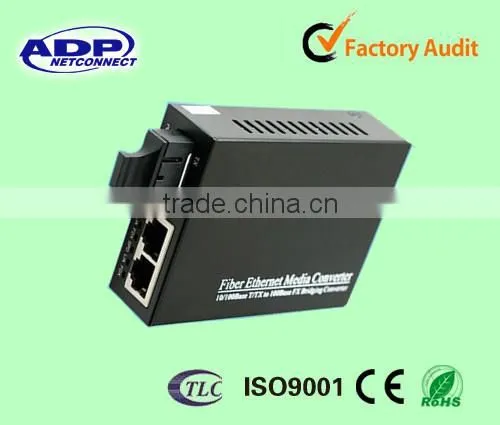

Photos :
