92*38mm Competitive Price AC Axial Fan

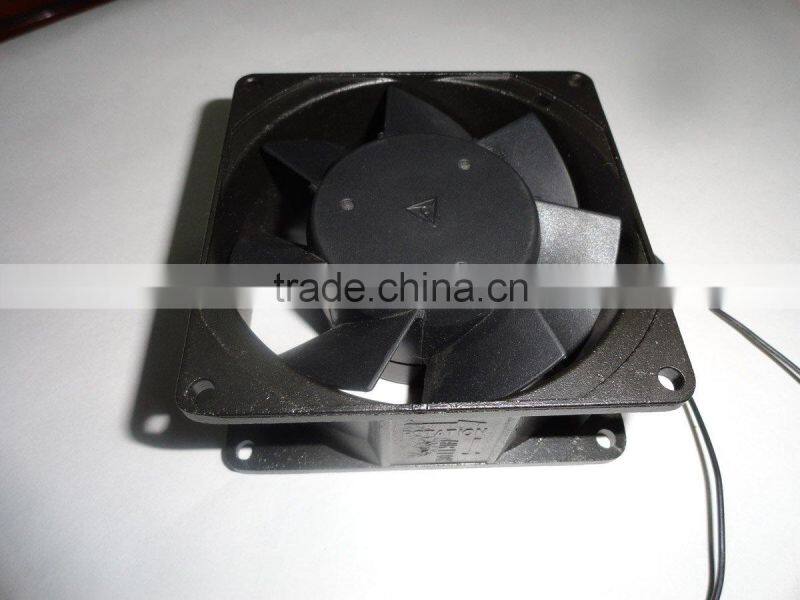

92*38mm Competitive Price AC Axial Fan thumbnail-1

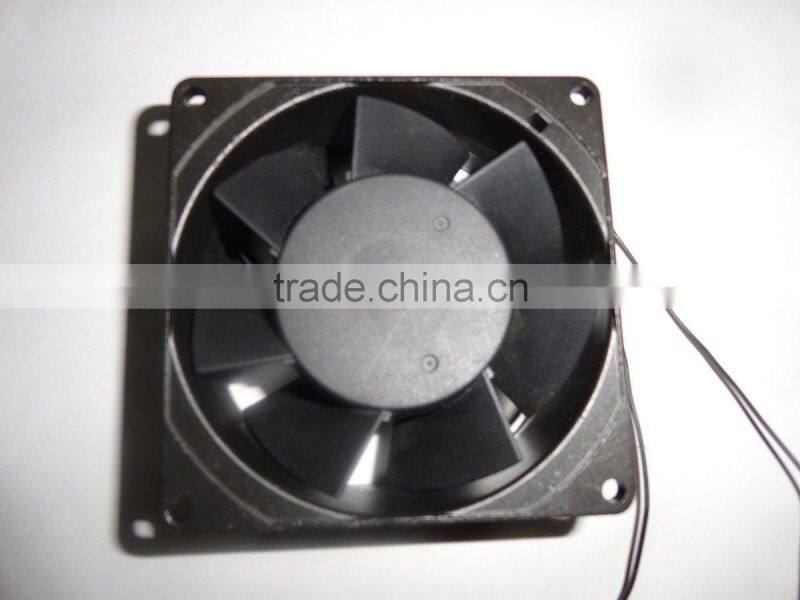

92*38mm Competitive Price AC Axial Fan photo-1
US$ 4 - 6 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Son Times Electronics & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Free Standing
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name SON TIMES
Model Number ST9238HB
Voltage 110V/220V
Power 11.4-16.5W
Air Volume 60-85CFM
Speed 2300-2800RPM
Certification CE

Specifications

1. competitive price ac axial fan
2.size:92*92*38MM
3..ball bearing /sleeve
4..large ariflow
5.rated voltage:110v 220v 380v



92*38mm competitive price AC axial fan92*38mm competitive price AC axial fan92*38mm competitive price AC axial fan



  Frame size(mm) 92*92*38mm
  Bearing type ball bearing
  Rated voltage 115V/50,60HZ, 230V/50,60HZ
  Rated speed 1000~2700RPM
  Max air flow 60-85CFM
  Max pressure 3.0-4.5mmAq
  Max noise 31-32dBA
  Functions by impedance,FG
  Safety approvals CE ROHS
  Dielectric Strength  5mA max at 1500VAC for 1 min between lead wire and frame
  Insulation resistance 100M ohm between lead wire and frame(DC 500V)
  Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
  Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
  Operation temperature -10~80 degree C(+14~176 degree F)
  Storge temperature -40~75 degree C(-40~167 degree F)
  Protection Motor protection and polarity protection
  Lead wire  UL1571 AWG18,20; UL1007 AWG18,22; UL1061 AWG22
  fan blade material Black PBT (UL94V-0) glass filled
  frame material Aluminium alloy
  Weight 340g
