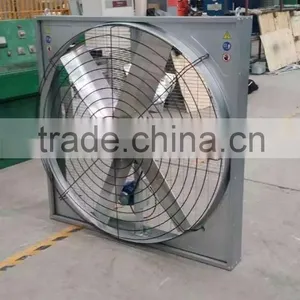

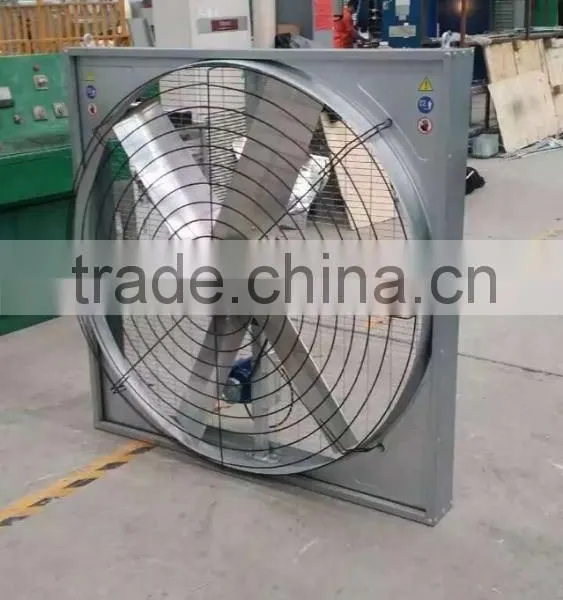

Driect Drive Exhaust Fan for Cowhouse
Features:
Frame adopts advanced automatic equipment processing technology , high degree of accuracy. Microcomputer aided manufacturing system can make maximun efficiency of fan. Adopting 380V special motor ,CAD design optimization. After five times strict quality checks:
1.noise detection
2.vibration test
3.turn the performance testing
4.rotational speed detection
5.the whole machine efficiency testing
Fan blade is made of stainless steel by punch forming , no dust , attractive and durable. Special blades shape design ensure large air volume , no defornation , no broken .
Motor:Both Chinese famous motor and Siemens motor are available . Motor voltage and frequency could be customized . Chinese famous motor , special design for fan , the first one put forward the phase lack protection device which could power off when shortage of electricity. motor protection grade IP55 , insulation class : grade F.
Fan belt pulley is made of high strength aluminum alloy by die-casting which reduces the weight of blade impeller complete ,high corrosion resistance . Special three reinforced ribs pulley design .Blast-sanding treatment for attractive appearance , eliminate internal stress to improve its own rigidity and stability ,never broken.
Fan bearing adopts imported double-row bearing with special waterproof design ,water can't enter .High strength ,lower noise maintenance free and long service life.
TECHNICAL DETAILS:
Model ZY-720, Size: 830x830x420 mm, Motor: 0.55kw/380V/3ph/50Hz or 60Hz.
Model ZY -750, Size: 900x900x420 mm, Motor: 0.37kw/380V/3ph/50Hz or 60Hz.
Model ZY -900, Size: 1000x1000x420 mm, Motor: 0.75kw/380V/3ph/50Hz or 60Hz.
Model ZY -1000, Size: 1100x1100x420 mm, Motor: 0.75kw/380V/3ph/50Hz or 60Hz.
Model ZY -1100, Size: 1220x1220x420 mm, Motor: 0.75kw/380V/3ph/50Hz or 60Hz.
Model ZY -1250, Size: 1380x1380x420 mm, Motor: 1.1kw/380V/3ph/50Hz or 60Hz.
Model ZY -1400, Size: 1530x1530x420 mm, Motor: 1.5kw/380V/3ph/50Hz or 60Hz.
