Specifications
Wire diameter: 0.1-0.55mmAperture size: 2x3mm-12x6mm
Width 40mm 80mm 100mm 150mm 200mm 300mm 400mm
Flat type,Corrugated type

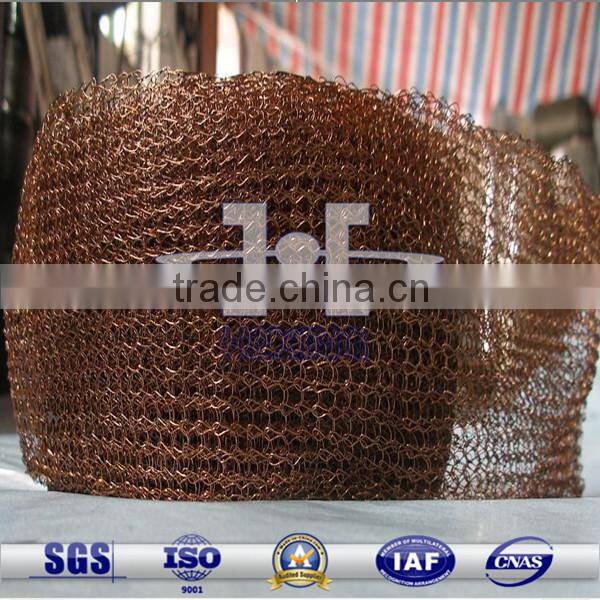

Damping pattern vapor-liquid filter mesh
Material: SUS AISI 201 202 301 302 304 304L 321 316 316L, pure Nickel, pure Ti, Monel, galvanized wire, redrawing wire, stainless steel wire and cotton thread/ plastic, PP, PC, PE, PVC, PTFE.
Wire diameter: 0.1mm-0.55mm (common wire 0.2mm-0.25mm), besides, use multistrand to weave.
Aperture size: from 2mmx3mm (4mmx5mm) to 12mmx6mm.
Width: 40mm 80mm 100mm 150mm 200mm 300mm 400mm 500mm 600mm etc.
Surface shape: Flat type and Corrugated type
Use: mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; metal structured packing, sealing material; damping; Electromagnetic interference shielding device, etc.
Pattern |
Specification |
Standard type |
40-100 60-150 105-300 140-400 160-400 210-570 252-800 330-1050 |
Highly effective |
60-100 80-100 80-150 90-150 800-400 |
150-300 200-400 300-600 800-400 | |
High penetration |
20-100 30-150 70-400 170-560 170-600 |
Damping pattern |
30-30 33-30 20-40 26-40 30-40 38-40 |
30-50 48-50 30-60 30-80 40-80 40-120 50-120 |
Standard steam fluid strainer technical parameter | ||||||
Filament diameter |
Net wide permission |
Stack density |
Compared to surface area |
Percentage of voids |
||
Flat wire |
Round wire |
±20 |
150 |
Flat wire |
Round wire |
0.981 |
0.1×0.4 |
0.23 |
475 |
320 |
|||
Highly effective steam fluid strainer technical parameter | ||||||
Filament diameter |
Net wide permission |
Stack density |
Compared to surface area |
Percentage of voids |
||
Flat wire |
Round wire |
±20 |
182 |
Flat wire |
Round wire |
0.977 |
0.1×0.28 |
0.19 |
626 |
484 |
|||
High penetration steam fluid strainer technical parameter | ||||||
Filament diameter |
Net wide permission |
Stack density |
Compared to surface area |
Percentage of voids |
||
Flat wire |
Round wire |
±20 |
98 |
Flat wire |
Round wire |
0.9875 |
0.1×0.4 |
0.23 |
313 |
217 |
|||
Pattern code number |
Volumetric weight kg/m3 |
Compared to surface area m2/m3 |
Percentage of voids Epsilon |
SP |
168 |
529.6 |
0.9788 |
HP |
128 |
403.5 |
0.9839 |
DP |
186 |
625.5 |
0.9765 |
HR |
134 |
291.6 |
0.9832 |
