Specifications
Type D Sintered wire mesh:Material: SUS304, SUS316, SS316L
Standard sizes: 500x1000mm, 600x1200mm,
1000x1000mm, 1200x1200mm

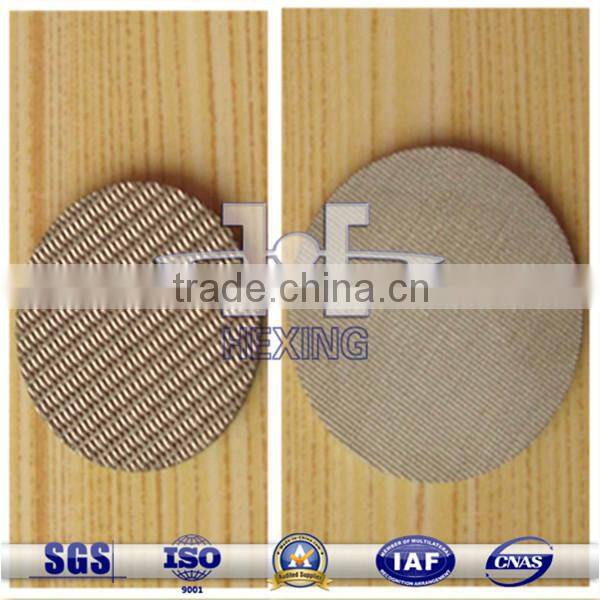

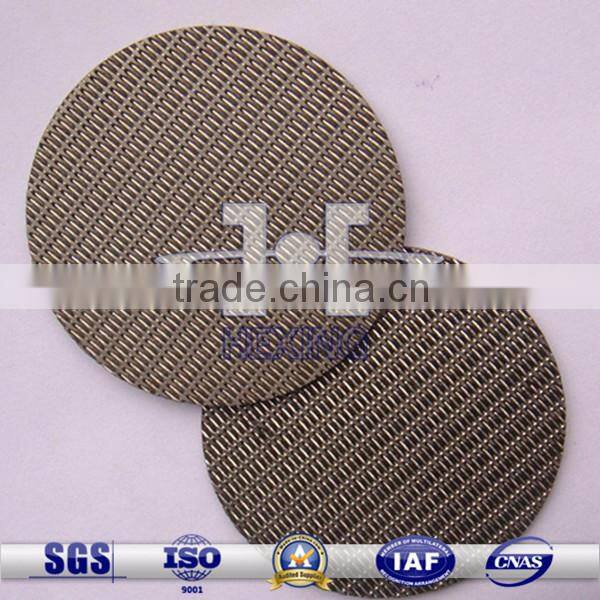

Stainless Steel Type D Sintered Wire Mesh

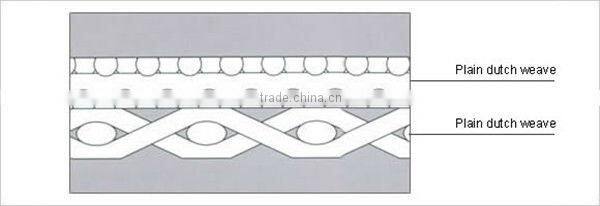

The Structural Drawing of Type D Sintered Wire Mesh:
Material:
The standard materials are SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
Special Alloy Steel Hastelloy, Monel, Inconel are available base on customer's requirement.
Specification:
The standard sizes are 500x1000mm, 600x1200mm and 1000x1000mm, 1200x1200mm, and special size in this range can be supplied as requirement.
Product Structure:
Type D sintered laminate is overlapped and stacked up by 2 or 3 layers of plain dutch woven wire mesh with equal hole size, after vacuum sintering, pressurizing and rolling. It has the average pore size and steady air permeability. This kind of material can be widely used in powder transport, laboratory fluid bed, driers and coolers.
Product Application:
Centrifugal Separator
It can be produced into dynamic filter elements with effective filtration and separation. It is mainly used in chemical, pharmaceutical and beverage industries.
Conical Filter Element
Mainly used in chemical, pharmaceutical and beverage industries, it brings better diversion, filtration and separation.
