Specifications
2-200 micronApplication: Air Fluidized Plate; Cylinder Tube and Basket Filter
Dimension 500x1000 600x1200 1000x1000 1200x1200
Stainless Steel 304 Sintered Wire Mesh Filter Element

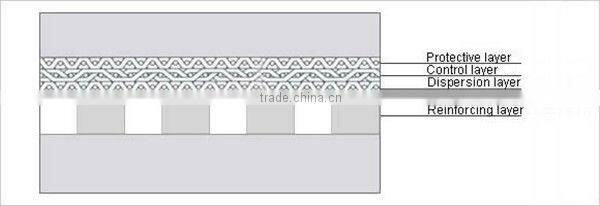

Type C Sintered Wire Mesh is sintered by perforated plate and multi-layer stainless steel wire mesh. Due to the support of perforated plate, the sintered wire mesh has higher compressive and mechanical strength. Type C sintered wire mesh is mainly used in food, beverage, water treatment, dust removing, pharmaceutical, polymer, etc. It can be processed into various filters including tube, disc and sheet. The thickness of the perforated/punching plate and the structure of the wire mesh can be customized according to the user's requirements.
Material
The material of the perforated plate is SUS304(AISI 304), material of the wire mesh is SUS316( AISI316) or SUS 316L(AISI316L).
Special Alloy Steel Hastelloy, Monel, Inconel are acceptable base on customer's requirement.
Dimension
The standard sizes are 500x1000mm, 600x1200mm, 1000x1000mm, 1200x1200mm, and any size within the above ranges can be customized according to the customer's requirement.
Application
Air Fluidized Plate
Cylinder Tube and Basket Filter
Technical Parameters
Model |
Filter Rating (μm) |
Structure |
Thickness(mm) |
Weight(kg/m2) |
Porosity(%) |
C4-2.0T |
2-200 |
30+Filter layer+30+φ4×5p×1.0T |
2.0 |
6.7 |
57 |
C4-2.5T |
2-200 |
30+Filter layer+30+φ5×7p×1.5T |
2.5 |
9.8 |
50 |
C5-3.0T |
2-200 |
60+Filter layer+60++20+φ6×8p×2.0T |
3.0 |
11.8 |
50 |
C5-3.5T |
2-200 |
20+Filter layer+20+10+φ8×10p×2.0T |
3.5 |
12.6 |
54 |
C5-4.0T |
2-200 |
20+Filter layer+20+10+φ8×10p×2.5T |
4.0 |
14.2 |
55 |
C5-4.3T |
5-200 |
20+Filter layer+20+10+φ10×13p×3.0T |
4.3 |
16.9 |
50 |
C5-5.3T |
5-200 |
20+Filter layer+20+10+φ10×13p×4.0T |
5.3 |
20.6 |
51 |
