Home > Construction & Decoration > Wire Mesh > Filter Screen > 5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh

5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh

Name: 5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh
Brand: Hexing
SKU: 100811413
Availability: InStock

5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh thumbnail-1

5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh photo-1

US$ 200 - 500 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Hexing

Model Number:

SSWM-500-1000

Contact Supplier Request Quote Chat Now

Anping County Hexing Wire Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Hexing

Model Number SSWM-500-1000

Usage Other, liquid filter and gas filter

Type Other, Filter Element; Filter Disc

Material Metal

Filter Rating 1 micron-100 micron

Thickness 1.7mm

Length 1000mm 1200mm

Width 500mm 600mm 1000mm 1200mm

Specifications

Stainless Steel Sintered Wire Mesh
1. Good quality
2. Competitive price
3. Manufacturer
4. ISO9001 & SGS certificated

5-layer Type A Stainless Steel Sintered Wire Mesh/Filter Mesh

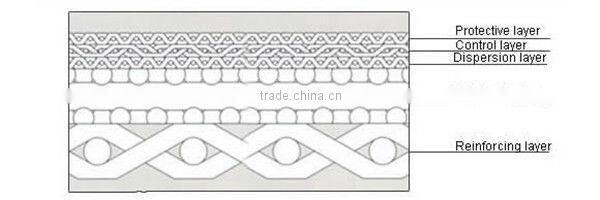

The Structural Drawing of Type A Sintered Wire Mesh, 5-Layer Sintered Wire Mesh:

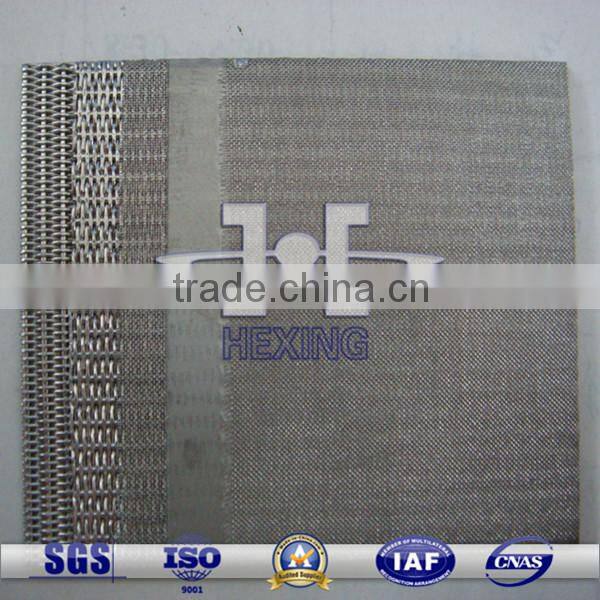

Type A Sintered Wire Mesh is a standard combination of 5-layer sintered wire mesh which has the widest application. Five different layers of stainless steel wire mesh are combined, and then sintered together through vacuum sintering, compressing, and rolling, forming a porous product.

Material:

The standard materials are SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
Special Alloy Steel Hastelloy, Monel, Inconel are acceptable base on customer's requirement.

Dimension:

The standard dimensions are 500x1000mm, 600x1200mm and 1000x1000mm, 1200x1200mm, and other dimensions in between are also available.

Characteristics:

Wide Range of Filtering Rate

It has the steady filtering rate from 1 micron to 100 micron.

Steady Filtering Rate

Due to the two protective layers, the mesh of the filter layer is not easy to deform.

High Mechanical Strength

Owing to the support of fourth and fifth reinforcing layers, it has higher resistance to pressure and mechanical strength.

Easy to be Cleaned

It is very easy to be washed, especially to reverse wash, by virtue of adopting the surface layer filtration material

Heat Resistance

It can resist the heat up to 480°C.

Corrosion Resistance

It has the property of anti-corrosion as a result of adopting the material of SUS316L.

Tractability

It suits for many kinds of machining, such as cutting, bending, punching, stretching, welding and so on.

Technical Data:

Model	Nominal Filter Rating ( u)	Structure	Thicknes s (mm)	Air Permeability (L/min/cm2)	Bubble Pressure (mm H2O)	Weight (kg/m²)	Porosity (%)
A5-1	1	100+400×2800+100+12×64+64×12	1.7	1.81	360-600	5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4)	37%
A5-2	2	100+325×2300+100+12×64+64×12	1.7	2.35	300-590
A5-5	5	100+200×1400+100+12×64+64×12	1.7	2.42	260-550
A5-10	10	100+165×1400+100+12×64+64×12	1.7	3.00	220-500
A5-15	15	100+165×1200+100+12×64+64×12	1.7	3.41	200-480
A5-20	20	100+165×800+100+12×64+64×12	1.7	4.50	170-450
A5-25	25	100+165×600+100+12×64+64×12	1.7	6.12	150-410
A5-30	30	100+450+100+12×64+64×12	1.7	6.7	120-390
A5-40	40	100+325+100+12×64+64×12	1.7	6.86	100-350
A5-50	50	100+250+100+12×64+64×12	1.7	8.41	90-300
A5-75	75	100+200+100+12×64+64×12	1.7	8.7	80-250
A5-100	100	100+150+100+12×64+64×12	1.7	9.1	70-190

Note: The 6-layer sintered wire mesh is to be added one layer of 12 mesh to the 5-layer sintered mesh. Its thickness is 3.5mm, it has the higher anti-pressure ability.
