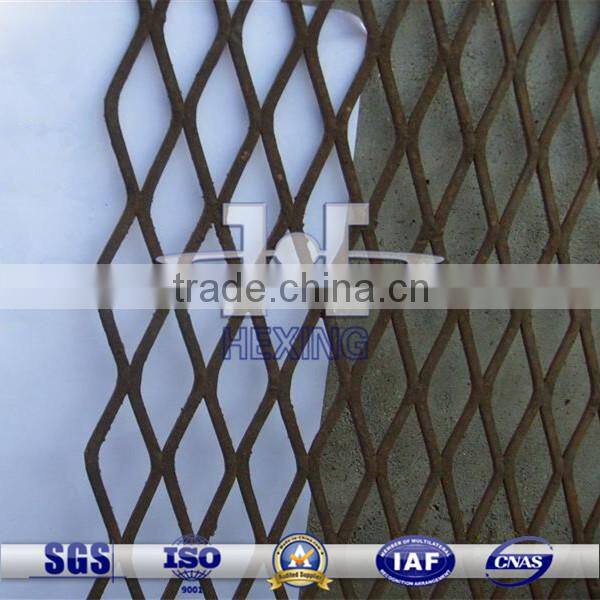

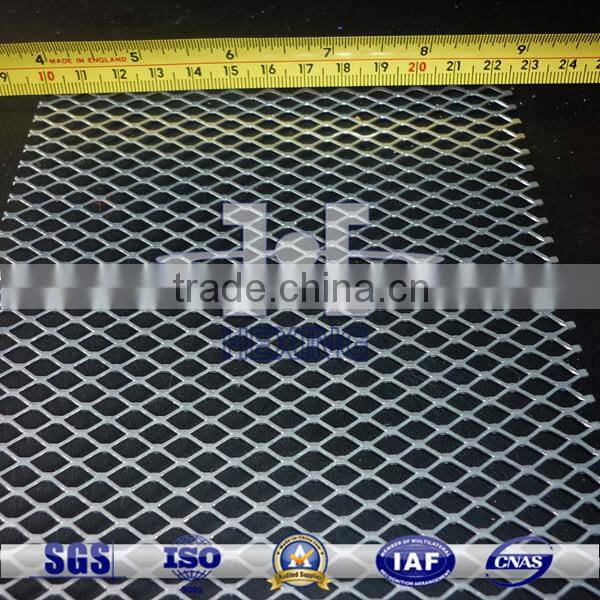

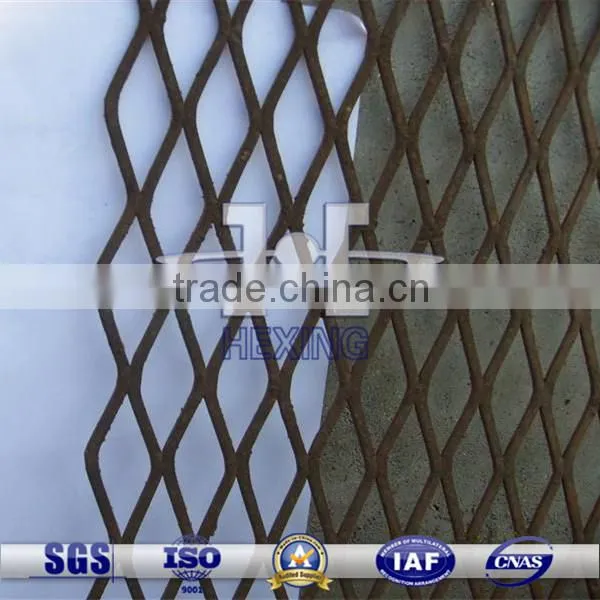

Diamond Hole Flattened Low Carbon Steel Expanded Metal Mesh

Name: Diamond Hole Flattened Low Carbon Steel Expanded Metal Mesh
Brand: Hexing
SKU: 100810357
Availability: InStock

US$ 0.5 - 18.5 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Hexing

Model Number:

DFEM-80-40

Anping County Hexing Wire Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Hexing

Model Number DFEM-80-40

Material Galvanized Sheet

Specifications

Expanded metal mesh
1.LWM: 4.5-80mm,
2.SWM: 2.5-40mm,
3.Thickness: 0.5mm-8.0mm
4.Width: 0.5m-2.4m

Diamond Hole Flattened Expanded Metal Mesh

Galvanized Flattened Expanded Metal offered by Anping County Hexing Wire Product Co., Ltd.

Hole shape: diamond mesh, hexagonal mesh.

Material of Expanded metal: Galvanized Plate.

Main Process of Expanded metal: Punching and Pulling.

Mesh Types of Expanded metal: Mini-hole, Standard and Heavy type.

Application: Protecting mesh; step mesh of oil tanks, working platform; BBQ grill mesh etc.

Style	Lbs. per 100 Sq. Ft.		Standard Sheet Size in Feet		C/C of Bond in Inches		Diamond Opening Size in Inches		Strand Size in Inches		Overall Thickness	% Open Area
	Lbs. per 100 Sq. Ft.		Width	Length	C/C of Bond in Inches		Diamond Opening Size in Inches		Strand Size in Inches
	Bare	Galv	SWD	LWD	SWD	LWD	SWO	LWO	Width	Thickness
1/2" #20F	40	51	4, 8	8, 4	0.500	1.250	0.375	1.000	0.079	0.029	0.029	65
1/2" #18F	66	83	4, 8	8, 10, 4	0.500	1.250	0.312	1.000	0.097	0.039	0.039	60
1/2" #16F	82	98	4, 8	8, 10, 4	0.500	1.250	0.312	1.000	0.096	0.050	0.050	63
1/2" #13F	140	161	4, 8	8, 10, 4	0.500	1.250	0.265	1.000	0.107	0.070	0.070	52
3/4"- #16F	51	57	4, 8	8, 10, 4	0.923	2.100	0.750	1.750	0.111	0.048	0.048	74
3/4" #13F	75	88	4, 5, 8	8, 10, 10, 4	0.923	2.100	0.688	1.781	0.106	0.070	0.070	74
3/4" #10F (13 ga)	114	128	4, 8	8, 4	0.923	2.100	0.637	1.755	0.160	0.070	0.070	68
3/4" #9F	171	188	4, 5, 8	8, 10, 10, 4	0.923	2.100	0.563	1.688	0.165	0.120	0.120	63
1" #16F	41	50	4, 8	8, 10, 4	1.000	2.300	0.813	2.250	0.098	0.050	0.050	78
1" #14F	63	72	4, 8	8, 10, 4	1.000	2.300	0.790	2.000	0.125	0.070	0.070	80
1" #12F	98	113	4, 8	8, 10, 4	1.000	2.300	0.785	2.000	0.156	0.085	0.085	74
1" #10F	165	179	4, 8	8, 10, 4	1.000	2.300	0.750	1.900	0.160	0.110	0.110	58
1-1/2" #16F	38	46	4, 8	8, 10, 4	1.330	3.200	1.062	2.750	0.119	0.048	0.480	83
1-1/2" #13F	57	66	4, 8	8, 10, 4	1.330	3.200	1.062	2.750	0.116	0.070	0.070	80
1-1/2"#10F	165	179	4, 8	8, 4	1.330	3.200	0.900	2560	0.188	0.110	0.110	63
1-1/2" #9F	114	125	4, 5, 8	8, 10, 10, 4	1.330	3.200	1.000	2.563	0.158	0.110	0.110	75
