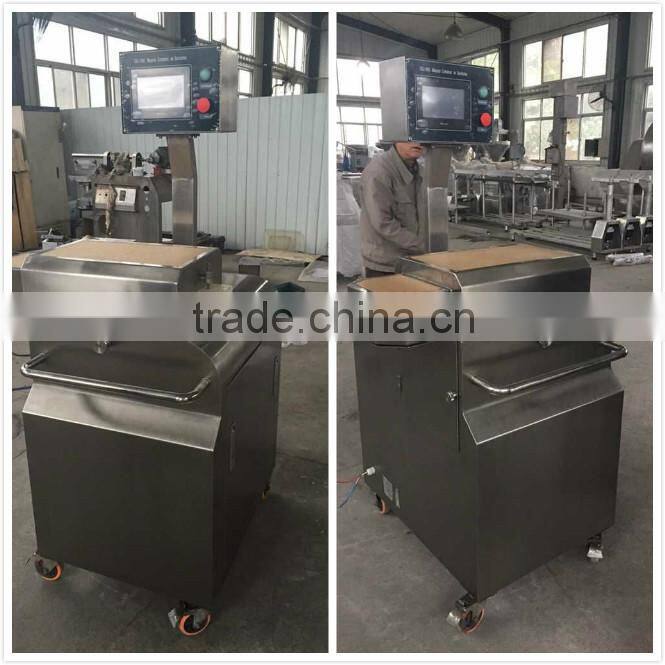

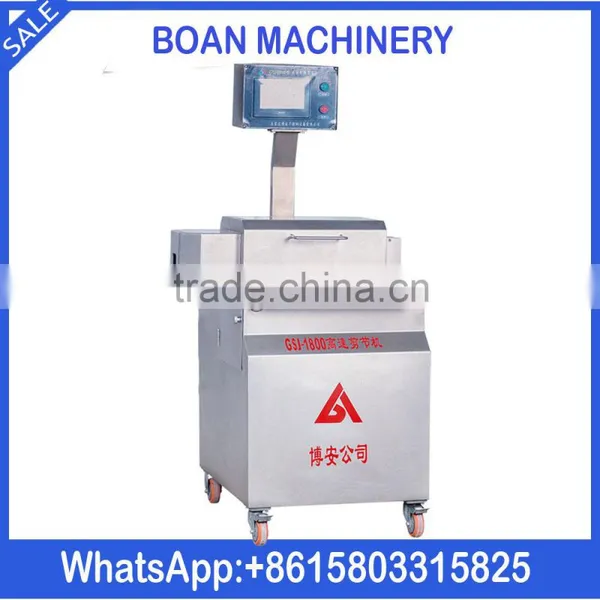

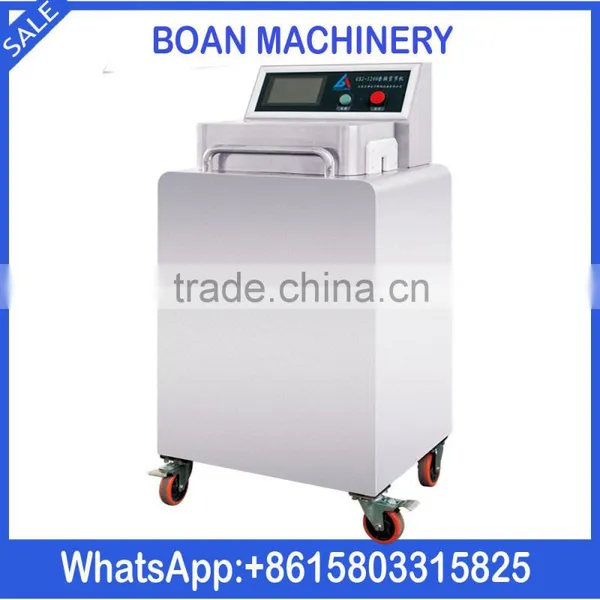

Sausage Cutter Machine
The machine can cut a hand of cooked sausage ,it cut various kinds of casing (natural, collagenic, cellulose, nylon etc) in the kink position .
1, Cutting into single sausage and two sausages ,ect. According to the demand quantity setting range 1-40 root .
2, There are two sets of servo motor drive in the machine , the conveyor belt operation of a motor reduction drive , the conveyor speed can be adjusted ; another group of motor directly driven cutter rotation .
3, The operating system is independent of the invention ,cutting more stable ,and in the case of
Product relative to the eligibility criteria .broken rate is zero .
4,The machine can cut long sausage (no kinks) into equal length segment .Each cutting Length
Can be adjusted separately,ranging from 1mm to 5mm .cutting length adjustment range is from 30mm-512mm .
Main technical parameters :
*Machine must include sausages quantity counter and it must provide changeable settings for different quantity of cut sausages
*Conveyor speed – 0-96 m/min
*Cutting speed – (sausage length 60 mm) – up to 1600 cuts/min
*Casing size – 10-50mm
*Machine size: about 800*790*1650mm, weight 180 kg

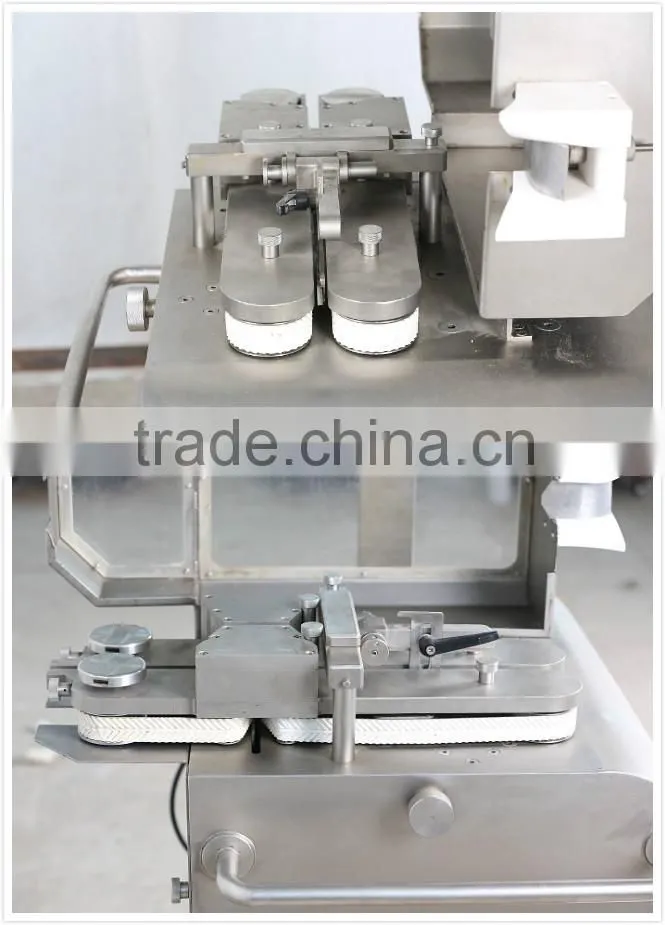

*cutting mechanism type – two-edge scissors (2 pcs),
*slide bushingof cutting mechanism (2pcs), conveyor (2 pcs),
*sausage size: diameter – 10-50 mm, length min 30 mm
*220 V, 50 Hz, 1 phase
*Electromotor proection index – min IP54
*Gear driver – servo motor
*Total power max 2.5 kw
please contact with us
