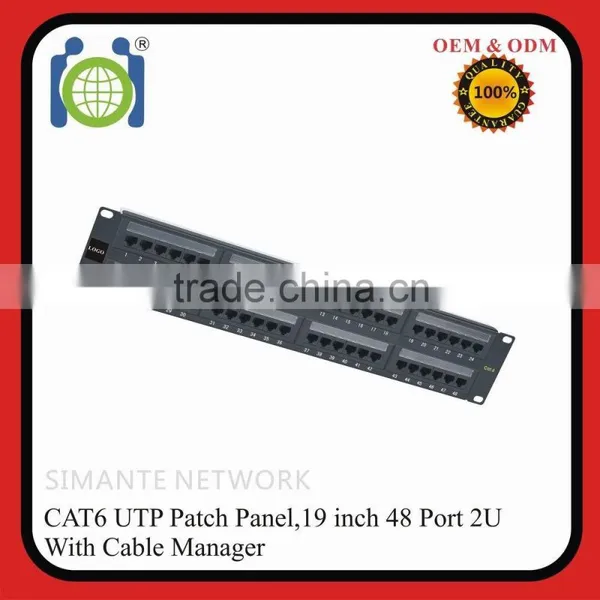

Help CenterRJ45 CAT6 48 Port Patch Panel With Back Bar
Related Products
-
24 Port CAT.5e FTP Shielded Krone Patch PanelUS$ 1.2 - 30MOQ: 200 Pieces -
CAT.5E 24 Port FTP Patch Panel LSA IDCUS$ 1.2 - 30MOQ: 200 Pieces
-
24 Port CAT.5e FTP Krone Patch PanelUS$ 15 - 25MOQ: 200 Pieces
-
CAT.3 25 Port Network Patch PanelUS$ 0.1 - 25.1MOQ: 200 Pieces
-
Network Equirement RJ45 CAT5E 24 Port Patch PanelUS$ 12 - 17.9MOQ: 200 Pieces

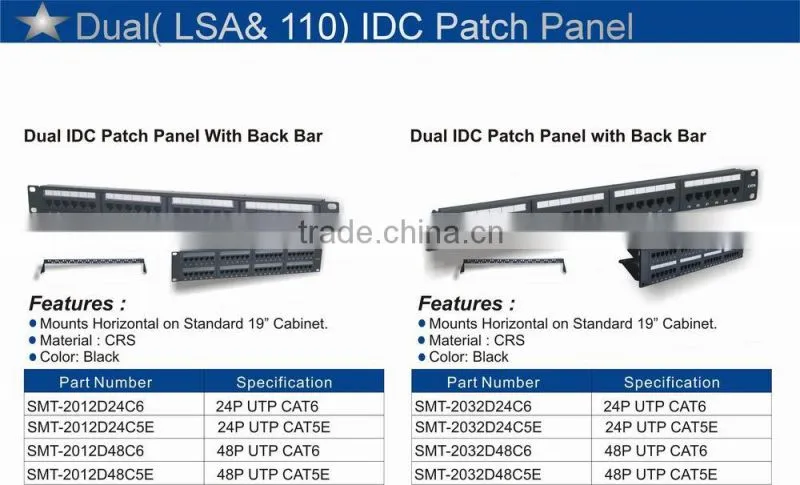

RJ45 CAT6 48 Port Patch Panel ,Dual IDC
Factory Advantages:
- OEM & ODM Services
- 25 years warranty
- 100 % Tester, 100% Pass Fluke Test ( DTX-1800)
- Shortest Leading Time
Technical Details:
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Contact Resistance | 20 Mili-ohm |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | — 60~80 °C |
| Humidity | 10%-90% RH |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/B |
Material:
| Panel | Cold rolled steel(thickness1.5mm) |
| Back Bar | Cold rolled steel(thickness1.5mm) |
| Housing | ABS |
| Spring Wire | Phosphor Bronze With Gold-plated 3u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity. .
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 15-20days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
