Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > H.264 IP Camera Board,1.3 Megapixel CMOS Sensor,support Dual Stream,AVI Format,with 3G Wifi

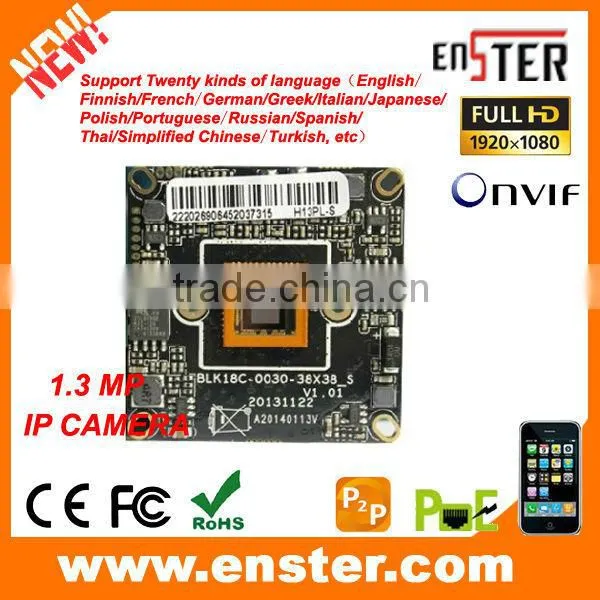

H.264 IP Camera Board,1.3 Megapixel CMOS Sensor,support Dual Stream,AVI Format,with 3G Wifi
US$ 73 - 78
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ENSTER
Model Number:
IP-T013-A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SONY IMX225 960P AHD Camera Board 1.3Megapixels Camera Support OSD Menu Module IR CUT Quality ChoiceUS$ 8.2 - 9.7MOQ: 100 Pieces -
960P 1200TVL AHD Camera Board 1.3Megapixels 1/3" CMOS OSD Menu Module Switch AHD and CVBS Analog Signal Lightning ProtectionUS$ 6.5 - 7.5MOQ: 100 Pieces
-
Enster 1080P ATC Camera Board 2000TVL 2.0MP 1/2.8" SONY IMX323 CMOS AHD/CVI/TVI/CVBS 4 in 1Camera Module +Lens/cableUS$ 11.99 - 12.9MOQ: 50 Pieces
-
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera BoardUS$ 11.00 - 11.36MOQ: 50 Pieces
-
Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUTUS$ 9.99 - 11.69MOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
ENSTER
Model Number
IP-T013-A
Type
Analog Camera
Style
Other, BOARD
Sensor
CMOS
Technology
Other, WIFI
Special Features
Other, IP Camera
| Model No. | H20 | H13 | H10 | |
| Camera Type | IP Camera | |||
| System | Embedded RTOS design | |||
| Camera | Effective Pixels | 2.0 Mega Pixels | 1.3 Megapixels | 1.0 Mega Pixels |
| Main Main stream:1080P(1920*1080);720P(1280*720) | Main stream:960P(1280*960);720P(1280*720) | Main stream:720P(1280*720);D1(704*576) | ||
| Sub stream:D1(704*576),CIF(352*288) | Sub stream:D1(704*576),CIF(352*288) | Sub stream:D1(704*576),CIF(352*288) | ||
| Frames Rates | PAL:25fps(1920*1080)/(1280*720) | PAL:25fps(1280*960)/(1280*720) | PAL:25fps(1280*720) | |
| NTSC:30fps(1920*1080)/(1280*720) | NTSC:30fps(1280*960)/(1280*720) | NTSC:30fps(1280*720) | ||
| Image Sensor | 1/2.8" SONY Exmor IMX222 CMOS Sensor | 1/3" Aptina AR0130 CMOS Sensor | 1/4" OV9712 CMOS Sensor | |
| 2.48 megapixel resolution (2000H*1241V) | 1.3 megapixel resolution (1280H*960V) | 1.0 megapixel resolution (1280*800) | ||
| DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
| (Hi3516) | (Hi3518C) | (Hi3518E) | ||
| Min. Illumination | Color 0.01Lux/F1.2 | Color 0.01Lux/F1.2 | Color 0.6Lux/F1.2 | |
| B/W 0.001 Lux/F1.2 | B/W 0.001 Lux/F1.2 | B/W 0.08 Lux/F1.2 | ||
| Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |
| Video | Compression | H.264 Main profile | H.264 Main profile | H.264 Main profile |
| Stream | support dual stream,AVI format | support dual stream,AVI format | support dual stream,AVI format | |
| Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
| Frame Rates | support 1~30fps adjust | support 1~30fps adjust | support 1~30fps adjust | |
| Audio | Input and output | Optional 1ch input( micphone),1ch output( Speaker&micphone) | ||
| Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
| Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
| Smart Analysis | NA | Optional | Optional | |
| Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
| Smart Phone | mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian) | |||
| CMS Software | Uniform CMS Software(multiple devices management system) | |||
| Cloud P2P | ,MYEYE platform and other program,Offer SDK | |||
| Network | 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
| ONVIF | Support (ONVIF 2.0) | |||
| POE | Support(optional) | |||
| WIFI | Support(optional) | |||
| General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
| IR Cut Filter | Set of double light switch IR-CUT filter | |||
| Lens Mount | Board Lens/CS Lens/Varifocal Lens | |||
| I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network),2*RCA Connector(Audio,Option),1*BNC connector( CVBS,Option ) | |||
| Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
| Working Enviroment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
| Dimensions | 38*38mm | |||
| Weight | 10g | |||
....
