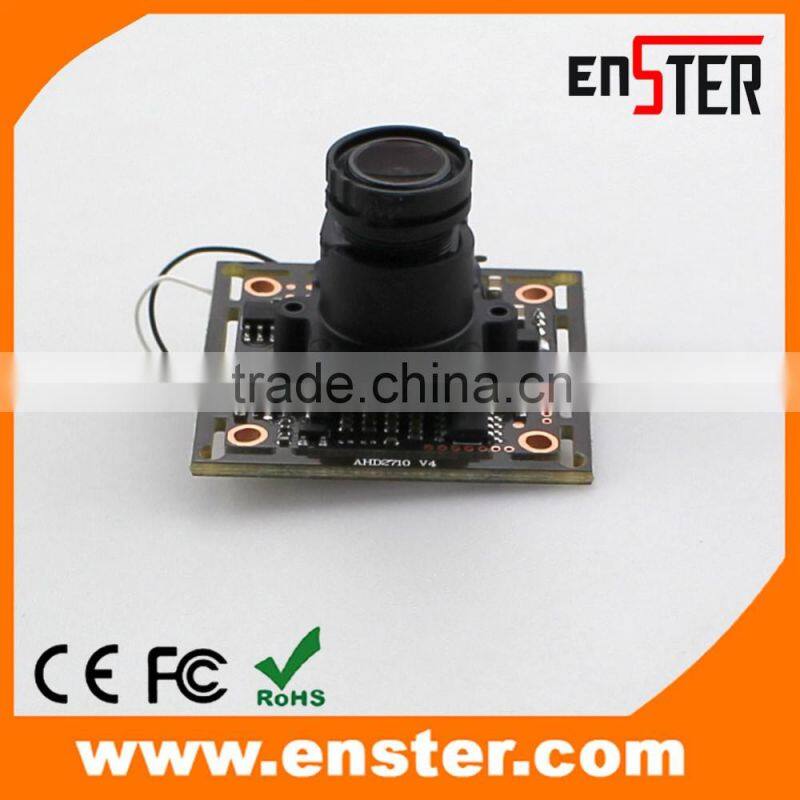

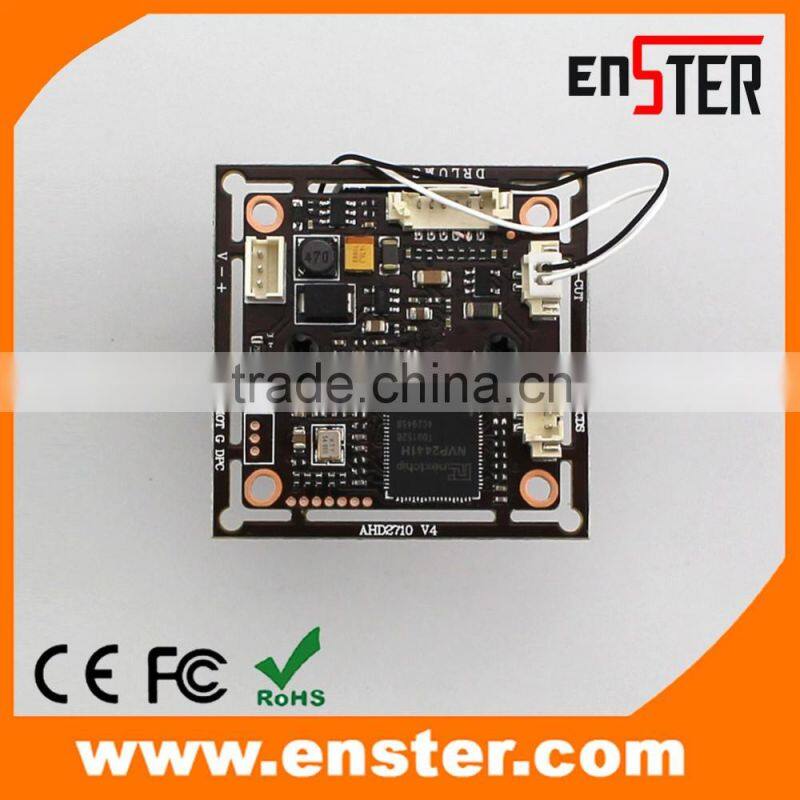

Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT

Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT photo-1
Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT photo-2
Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT photo-3
US$ 9.99 - 11.69 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ENSTER
Model Number:
NST-AHD020
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ENSTER
Model Number NST-AHD020
Type Other, AHD Camera
Style Mini Camera
Sensor CMOS
Technology Infrared
Special Features Other, Full hd

Welcome to Shenzhen Enster Electronics Co.,Ltd (Subject to Enster Industrial Limited)!

1080P 2.0MP AHD Camera Board 2.0Megapixels

1/2.8" CMOS OSD Menu Module

 Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUTEnster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT





We are the fastest growing manufacturer & exporter specilizing
in versatile security cameras for homecommercial uses!





Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT



Model No. NST-AHD020

Sensor

1/2.8"  SONY IMX323 CMOS

System

PAL

NTSC

Effective Pixel

PAL : 1920 ( H ) x 1080 (V)

NTSC : 1920 ( H ) x 1080 (V)

Illumination

0.001 LUX / F1.2

Lens Mount

Board Lens 3.6mm

Resolution

AHD : 2.0MP 1080P , Analog : 2000TVL

Scanning Frequency

50Hz 60Hz

Gamma

0.45

Electronic Shutter

1/50 ~ 1/100000s

1/60 ~ 1/100000s

S/N

>46dB

Video Output

1.0V p-p

Operation Temperature

-20 ºC to 50 ºC

Working Humidity

Relative humidity less than 95%

Power

DC12V (±10%)

I / O Connector

Power : DC Power Jack,Video Output : BNC

Size

38 x 38mm

Weight

0.15KG





Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT

1pcs Camera module.
1pcs 3.6mm lens

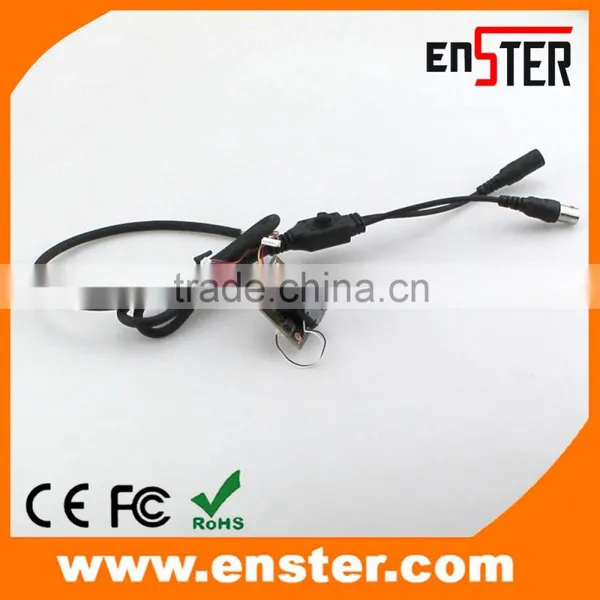

1pcs BNC + DC cable (approximate 60cm).
1pcs ICR (IR-Cut-Off filter switcher).
1pcs ICR triggering wire.







Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT



Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT



Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT

(1) Ordered products will be shipped within 3 days after payment verified.
(2) We ship products to the address that mentioned at aliexpress.
(3)  If ordered products not reach you over 15 days, please be patient contact us, we will implement priority international tracking.
(4) DHL / UPS / TNT / FedEx is suggested.
(5) Buyer may need to pay extra for the goods import to their country (if have, such as custom clearance fees, import TAX etc).
(6) If request invoice or special declaration, please message on the order.







Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT

(1) We provide 7 day (date upon receiving) testing period for all of our products,
if un-satisfy of the product, please return it with original state (product , item ,
package , accessories etc.) within 30 days, we full refund you total amount of the
order, but buyer have to pay the return shipping fees. We NOT ACCEPT fully or partially
refund for keep the products.

(2) We provide 24 months (2 years) warranty of all our selling products (date upon
receiving), including repair , replacement , maintenance etc. Please be noted that
if the damage of the product is cause by un-proper usage, we have to charge buyer
for components cost (if has), repairing fee is free during 36 months. During warranty
period, buyer have to pay all transportantion fees (including return, send back,
import TAX, export TAX etc).







Enster 1080P AHD Camera Board Analog 200TVL 2.0Megapixels 1/2.8" SONY IMX323 CMOS Camera Module Support OSD Menu IR CUT

1.Please Message us from 9:00am. to 18:00pm. (GMT+8) of Monday to Saturday.
2.If you have any questions, please message us and give us a chance to assist you.
All messages will be answered within 1 business day (except Public holidays in China).
If you do not receive our reply, please kindly re-sent your message and we will
reply to you as soon as possible.
3.We apologize for the late reply during holidays (included Sundays).
