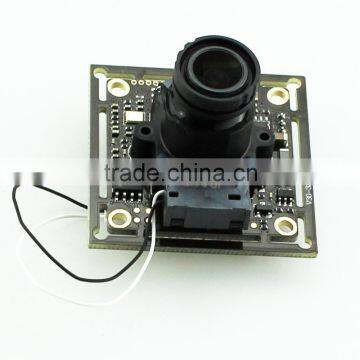

1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board

1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board thumbnail-1
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board thumbnail-2
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board thumbnail-3
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board thumbnail-4
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board thumbnail-5
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board photo-1
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board photo-2
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board photo-3
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board photo-4
1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 In1 Camera Board photo-5
US$ 11.00 - 11.36 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ENSTER
Model Number:
NST-ATC020E
Contact Supplier Request Quote Chat Now
Shenzhen Enster Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ENSTER
Model Number NST-ATC020E
Type Other, AHD Camera
Style Mini Camera
Sensor CMOS
Technology Infrared
Special Features Other

Welcome to Shenzhen Enster Electronics Co.,Ltd (Subject to Enster Industrial Limited)!

1080P 2.0MP ATC Camera Board 2.0Megapixels

1/3" CMOS OSD Menu Module

 1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

We are the fastest growing manufacturer & exporter specilizing
in versatile security cameras for homecommercial uses!





1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board



Model No. NST-ATC020E

Sensor

1/2.7 " Aptina AR0230 CMOS+V30

System

PAL

NTSC

Effective Pixel

PAL : 1920 ( H ) x 1080 (V)

NTSC : 1920 ( H ) x 1080 (V)

Illumination

0.001 LUX / F1.2

Lens Mount

Board Lens 3.6mm

Resolution

AHD : 2.0MP 1080P , Analog : 2000TVL

Scanning Frequency

50Hz 60Hz

Gamma

0.45

Electronic Shutter

1/50 ~ 1/100000s

1/60 ~ 1/100000s

S/N

>46dB

Video Output

1.0V p-p

Operation Temperature

-20 ºC to 50 ºC

Working Humidity

Relative humidity less than 95%

Power

DC12V (±10%)

I / O Connector

Power : DC Power Jack,Video Output : BNC

Size

38 x 38mm

Weight

0.15KG





1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

1pcs Camera module.
1pcs 3.6mm lens
1pcs BNC + DC cable (approximate 60cm).
1pcs ICR (IR-Cut-Off filter switcher).
1pcs ICR triggering wire.







1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board



1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board



1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

(1) Ordered products will be shipped within 3 days after payment verified.
(2) We ship products to the address that mentioned at aliexpress.
(3) Ship by Postal Air Mail usually not provide door to door services, have to pickup
      the parcel at your local postal office.
(4) If ordered products not reach you over 30 days, please be patient contact us,
      we will implement priority international tracking.
(5) Urgent needs of the products, please consider DHL / UPS / TNT / FedEx.
(6) Buyer may need to pay extra for the goods import to their country (if have,
      such as custom clearance fees, import TAX etc).
(7) Not provide invoice, description & value direct print on label outside the package.
      If request invoice or special declaration, please message on the order.







1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

(1) We provide 7 day (date upon receiving) testing period for all of our products,
if un-satisfy of the product, please return it with original state (product , item ,
package , accessories etc.) within 30 days, we full refund you total amount of the
order, but buyer have to pay the return shipping fees. We NOT ACCEPT fully or partially
refund for keep the products.

(2) We provide 24 months (2 years) warranty of all our selling products (date upon
receiving), including repair , replacement , maintenance etc. Please be noted that
if the damage of the product is cause by un-proper usage, we have to charge buyer
for components cost (if has), repairing fee is free during 36 months. During warranty
period, buyer have to pay all transportantion fees (including return, send back,
import TAX, export TAX etc).







1/3" AR0230 CMOS Surveillance AHD/CVI/CVI/CVBS 4 in1 Camera Board

1.Please Message us from 9:00am. to 18:00pm. (GMT+8) of Monday to Saturday.
2.If you have any questions, please message us and give us a chance to assist you.
All messages will be answered within 1 business day (except Public holidays in China).
If you do not receive our reply, please kindly re-sent your message and we will
reply to you as soon as possible.
3.We apologize for the late reply during holidays (included Sundays).
