Help CenterCnc Spindle 8kw Short Nose Air Cooled ATC Spindle ISO30/BT30 380V Spindle Gdz143*133-8kw
Related Products
-
Cnc ATC Spindle 5.5kw Water Cooled ATC Spindle ISO30/BT30 Spindle 120TD18Z5.5KW Quality ChoiceUS$ 2,130 - 2,500MOQ: 1 Piece -
Cnc ATC Spindle 1.5kw Water Cooled ATC Spindle ISO20/BT20 220V Spindle 80TD24/30Z1.5ATCUS$ 2,000 - 2,300MOQ: 1 Piece
-
Cnc ATC Spindle 6kw Water Cooled ATC Spindle ISO30/BT30 380V Spindle 125TD09/15Z6B ATCUS$ 2,180 - 2,500MOQ: 1 Piece
-
Auto Tool Changing Wood Cnc Carving Spindle 1.5kw ATC Water CooledUS$ 2,000 - 2,300MOQ: 1 Piece
-
ATC Wood Cnc Carving Machine 2.2kw Water Cooling SpindleUS$ 2,050 - 2,400MOQ: 1 Piece
Type:GDZ143*133-8
Technical parameter:
| GDZ143*133-8 |
| Rev(rpm): 12000-24000rpm |
| Power(kw): 8kw |
| Voltage(V): 380V |
| Current(A): 18A |
| Frequency(HZ): 400-800Hz |
| Cool: cooled by air |
| Torque: 6.4Nm |
| Repair time: bearing(half year),spindle(one year) |
| Brand: changsheng |
| 10.weight: 30kg |
| It can use as HSD ,or can replace HSD straightly |
| The tool we use is ISO30/BT30,aircooling |

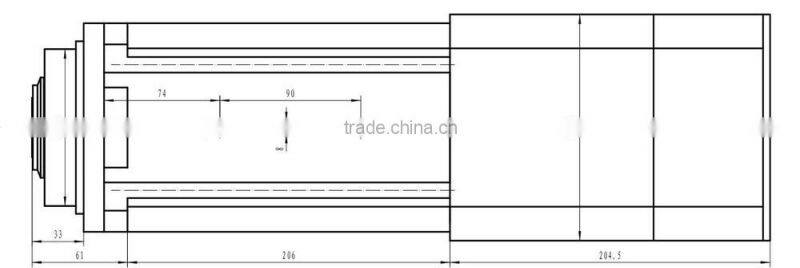

Size picture:

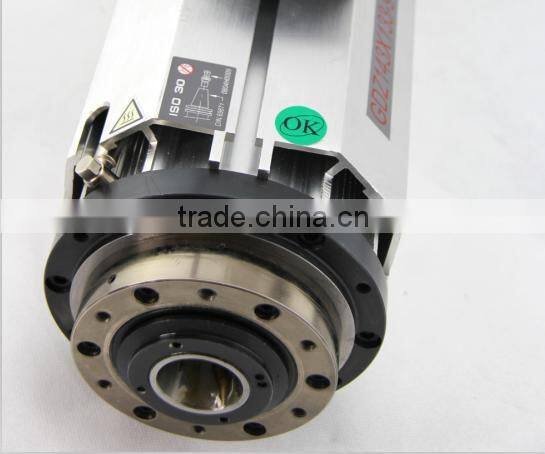

Picture:
Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
oled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.
Payment:
We could accept bank T T, Western Union, Paypal etc.
After payment, please tell us your details address, zip code and phone NO.
Shipping:
Parts cargo will be packed in carton with foams.
Parts cargo will be packed in wooden with foams.
Changzhou ChangLong Motor Co.,Ltd
( original Changzhou LINNAN Special Motor Factory)
With 20 years’ hard working on developing , designing and manufacturing the high-speed electrical spindle, we have got our new GDZ-series electrical spindle, which is well recognized by clients for its great and stable quality after being put large quantities to the market. We provide quality guarantee and after-sales service for all of our products with the free manual work and the cost price for the materials or fittings.
How about the warrantly about your company?
bearings=half a year, other parts a year
Which kinds of bearing you are using?
It will according to your order. We have different price range for you with different bearing.
Do you have other spare parts for spindle motor, just like gripper, VFD, collet ?
We have all kits.And we can let engineers help you to program them.
Can I visit your factory?
Yes, welcome to our factory.
Do you have installation page?
Yes,we have.
Can you show me the inspection report ?
Yes We will send you inspection report of spindle after you send me full money before despatch.
The reasen is that I'm not sure which spindle will be sent to you.Every spindle have it's inspection report .And they are different in details.Only if you pay the money,we can decide which spindle to deliver you.
