Titanium flange

Item name

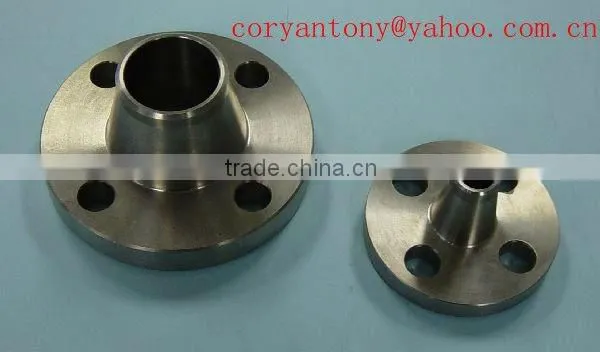

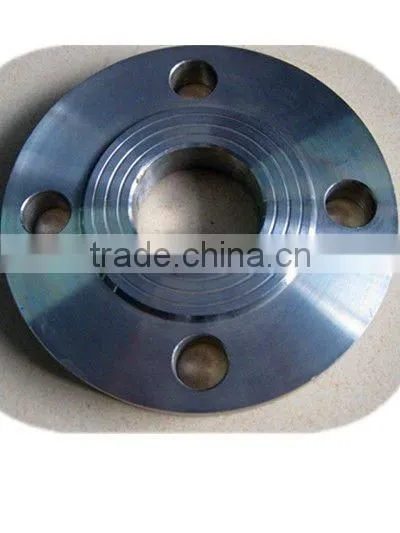

Titanium pipe flange

Standard

ASME/ANSI B16.5,DIN2630~2633,BS etc

Material

Gr1,Gr2,Gr5,Gr7,Gr9,Gr12

Size

1/2''~80''(DN10~600)

Pressure rating

0.6~32Mp

(DIN)   PN6,PN10,PN16,PN25 though PN250

(ASNI) CL150,CL300,CL600,CL900,CL1500

Working temperature

-60°C~250°C

Flange surface

FF,RF,TG,RJ etc

Quality control

Ultrasonic Testing & Material Test Report

Packaging

Plywood case line with foam or as per clients request

N

C

H

Fe

O

Al

V

Pa

Mo

Ni

Ti

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15

12

70

438

50

345

18
