Specifications
nitinol guide wire ASTM F2063Af temperture:0~100C

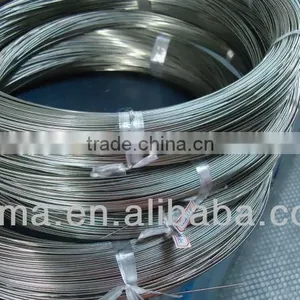

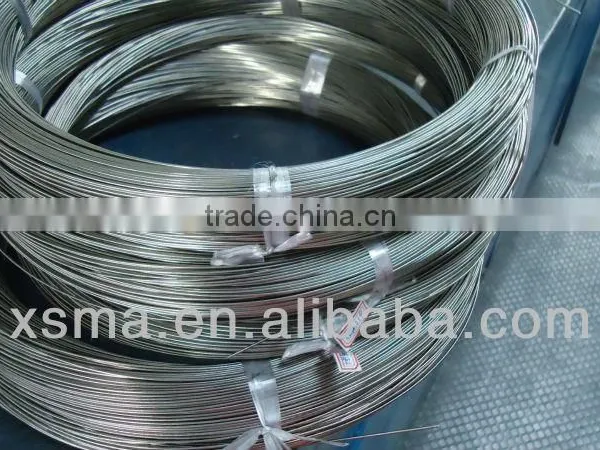

nitinol guide wire ASTM F2063
Material: mainly Nickel and titanium alloy
Shape Memory Nitinol wire: TiNi-01 TiNi-02
Super elastic Nitinol wire: TiNi-SS
Medical Nitinol alloy: TiNi-SS
Narrow Hysteresis Nitinol Alloy: TiNiCu alloy
Wide Hysteresis Nitinol Alloy: TiNiNb TiNiFe
Usation: ORTHOPAEDIC MEDICAL DEVICES,
1. SMAs are "ideally suited for use as fasteners, seals, connectors, and clamps". Tighter connections and easier and more efficient installations result from the use of shape memory alloys
2. Many of the current applications of Nitinol have been in the field of medicine. Tweezers to remove foreign objects through small incisions were invented by NASA.
3. Anchors with Nitinol hooks to attach tendons to bone were used for shoulder surgery.
4. Orthodontic wires made out of Nitinol reduces the need to retighten and adjust the wire. These wires also accelerate tooth motion as they revert to their original shapes.
5. Titanium nickel shape memory alloy urine road expansion support
6. Memory alloy esophagus support
7. Memory alloy as forgery-proof material application
8. Medical high strength memory alloy orthopedic stick
9. One kind of memory alloy thin walled tube inner support
10. Grid shape memory alloy super-elasticity bra to hold cup
11. Memory alloy human body centrum
12. One-sided bone cerebral cortex memory alloy to sew
13. One kind of memory alloy easily to disassemble surrounds the type to add the compression connection
Wire/bar diameter: φ 0.1mm-φ 8.0mm
Optional Surface: Polished Bright Surface, Pickling Etched Surface or Black Oxide Surface.
Tolerance: From ± 0.015mm to ± 0.05mm.
Transition temperature: -30° C~90° C
We provide customer shape setting of components with nitinol wire, bar, tube and sheet.
Typical products include super-elastic springs, thermo-mechanical springs, super-elastic clip rings, super-elastic shims and discs, etc.
We can supply the shape-setting, micro-machine processing of nitinol products as your special requirements.
Standard: ASTM F 2063-05 Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants.Please free to contact us with your special requirements.
Contact:titanexport at c-nin dot com
