linear MEDIUM series phased array probe

Specifications

1.Electronic beam steering/angulation
2.Electronic focal length adjustments
3.EN12688-2 approved

Overview

Doppler’s ultrasonic probe production line includes normal probes, narrow-pulse normal probes, angle probes, variable-angle probes, dual normal probes, immersion probes and phased-array probes, etc. Besides, OEM orders are acceptable according to probe specification and quantity. Doppler’s  probes can meet your demands for perfection





Key Feature

1.Tiny outline

2.Cable top of side leads

3.Electronic controls beam angle ,focusing,and scanning step size

4.Fixed angle & focused probes, without the need of multiple detections

5.Can detect conventional undetectable areas from one detect point

6.Replaceable two types of wedges, flatted & curved surface



Key benefits

1.Probes are designed to have a low-profile probe/wedge combination for easier access in        restricted areas.
2.Wave layers with acoustic adaptation to Rexolite
3.Captive anchoring screws are provided with the probe.
4.A wide selection of wedges is available to suit any angle beam

5.Reduced manual manipulation.

6.Reduced scanning surface contact area necessary (footprint).

7.Reduced need for multiple inspections with specifically angled  or focused probes.

8.Increased inspection speed and efficiency.

9.Increased coverage of inspection area.



Application

1:Power system: conventional welding inspection, pressure vessels, turbine blades and rotor

2:Aviation / Aerospace: Welding, landing gears inspection

3:Automotive: engine parts, frames, axles, brake discs.

4:Conventional: Weldings, Forgings, Castings, Pipes, Bridges & construal steels



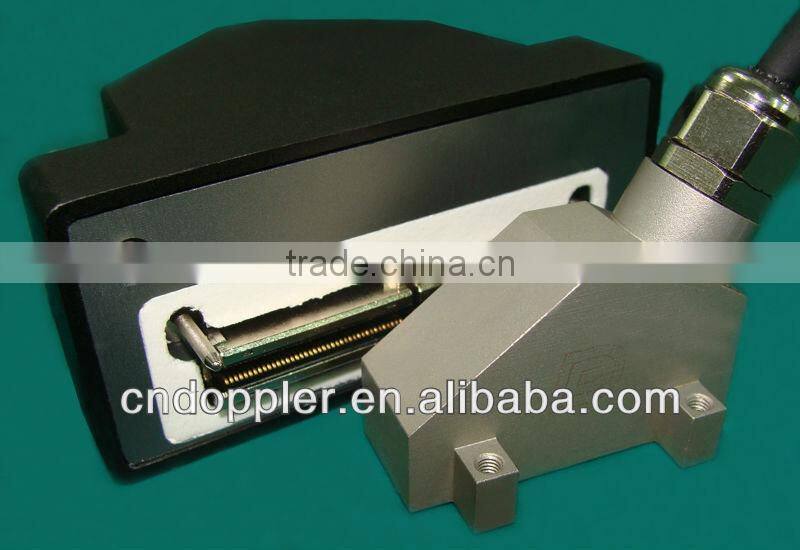

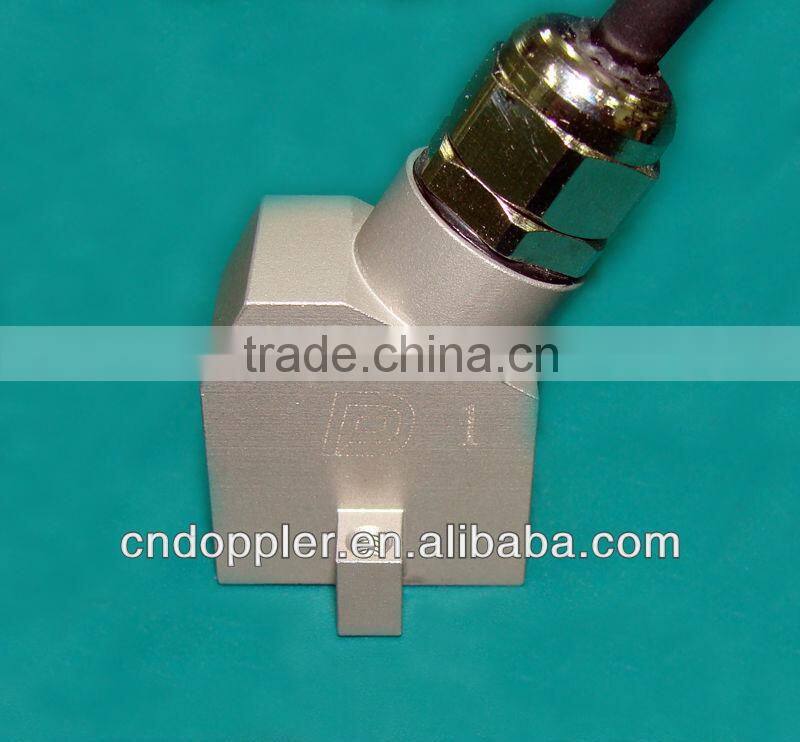

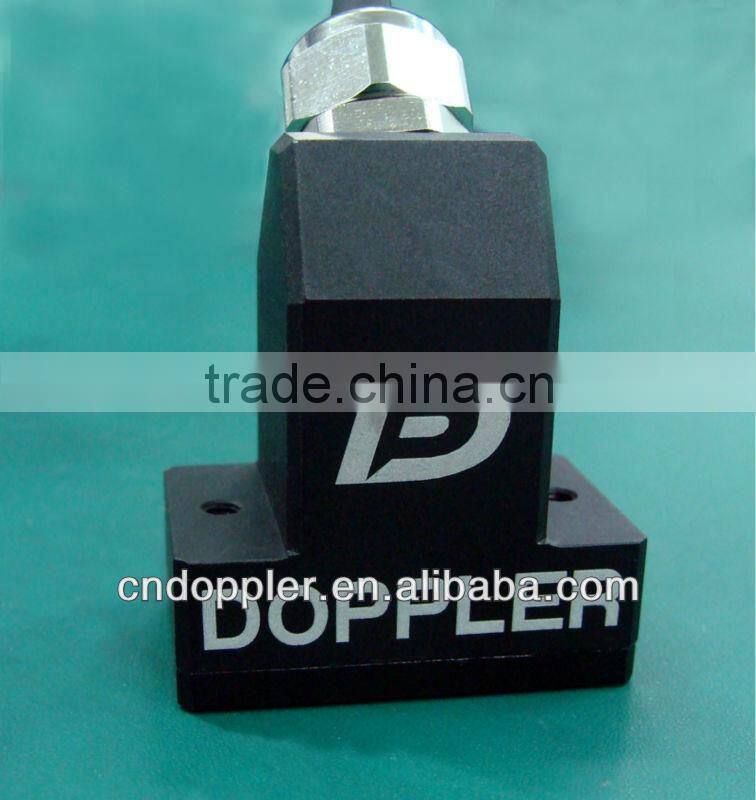

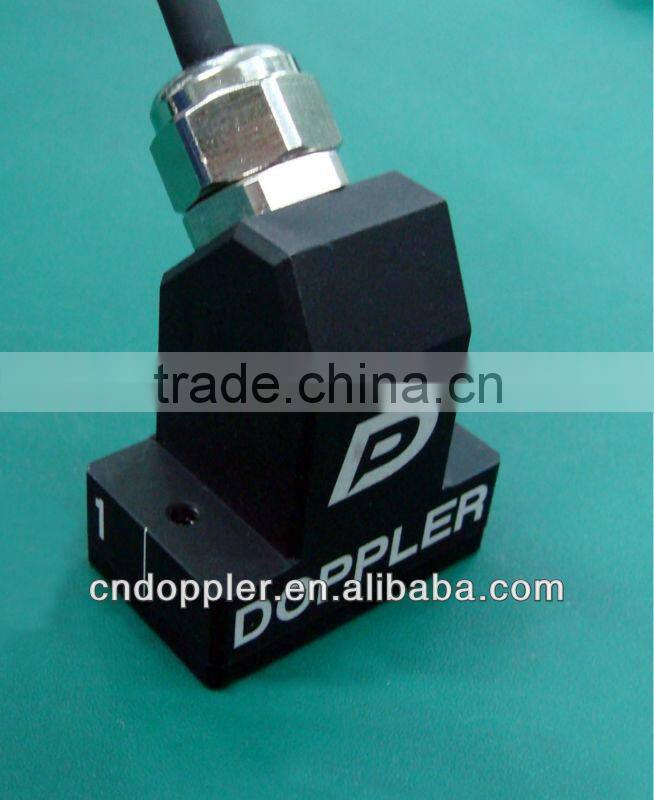

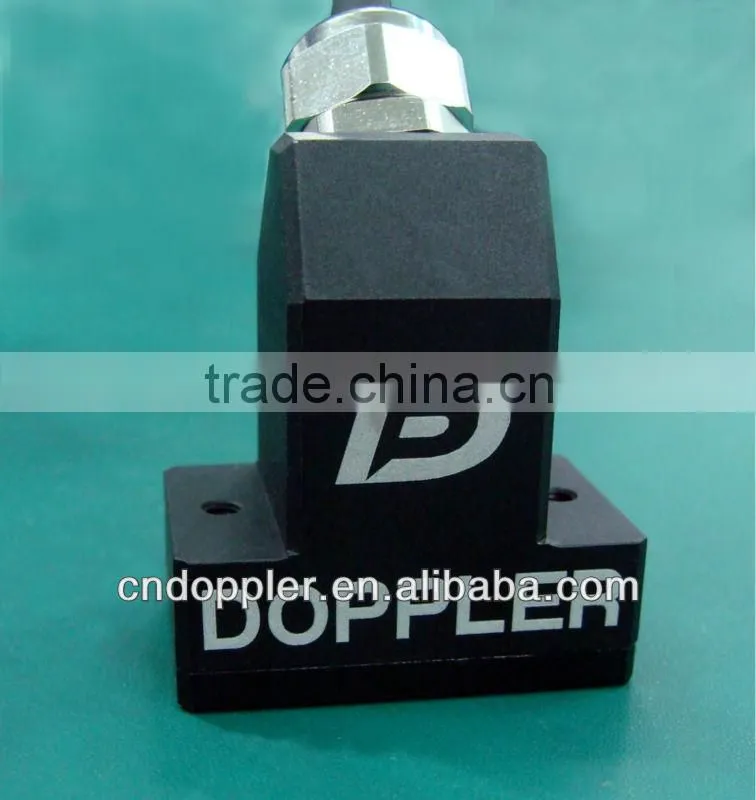

The picture of linear MEDIUM series phased array probes(transducers)









1-3 piezo composite material







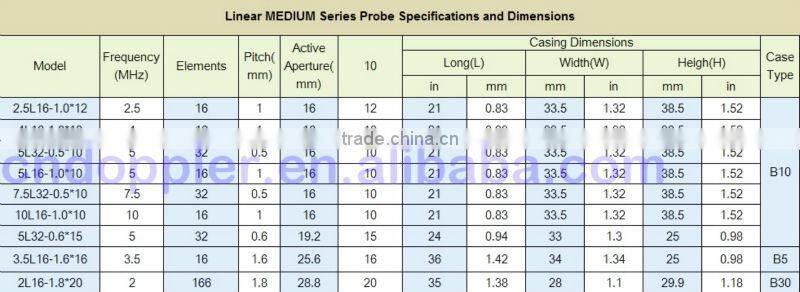

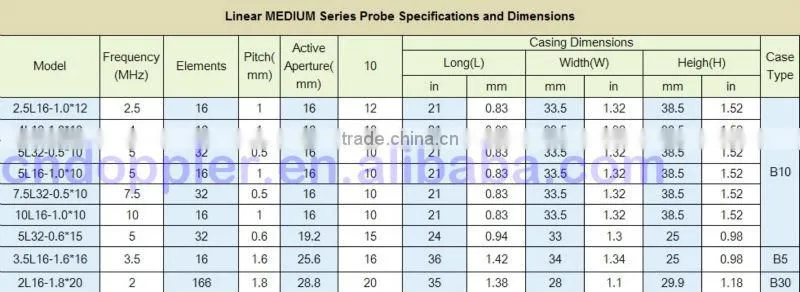

Linear Small series probe specifications and dimensions





 Suitcase for probes





Certificates
