DOPPLER Phased Array Wedge Integrated Probe

Specifications

1.Electronic beam steering/angulation
2.Electronic focal length adjustments
3.EN12688-2 approved

Overview

Doppler’s ultrasonic probe production line includes normal probes, narrow-pulse normal probes, angle probes, variable-angle probes, dual normal probes, immersion probes and phased-array probes, etc. Besides, OEM orders are acceptable according to probe specification and quantity. Doppler’s  probes can meet your demands for perfection





Key Feature

1.Electronic controls beam angle,focusing and scanning step size

2.Fixed and & focused probes,without the need of multiple detections

3.Can detect conventional undetectable areas

4.Replaceable two type of wedges-flatted & curved surfaces

Key benefits

1.Probes are designed to have a low-profile probe/wedge combination for easier access in        restricted areas.
2.Wave layers with acoustic adaptation to Rexolite
3.Captive anchoring screws are provided with the probe.
4.A wide selection of wedges is available to suit any angle beam

5.Reduced manual manipulation.

6.Reduced scanning surface contact area necessary (footprint).

7.Reduced need for multiple inspections with specifically angled  or focused probes.

8.Increased inspection speed and efficiency.

9.Increased coverage of inspection area.



Application

1:Power system: conventional welding inspection, pressure vessels, pipelines,rotor inspection

2.Petroleum:pipelines,tanks

3:Aviation / Aerospace: Welding, Composites delamination & abhesion lan ding gears inspection

4:Transportation:Composites delamination & abhesion,planks

5:Conventional: Large conventional scanning,plank,sticks,pipelines thickness measurement

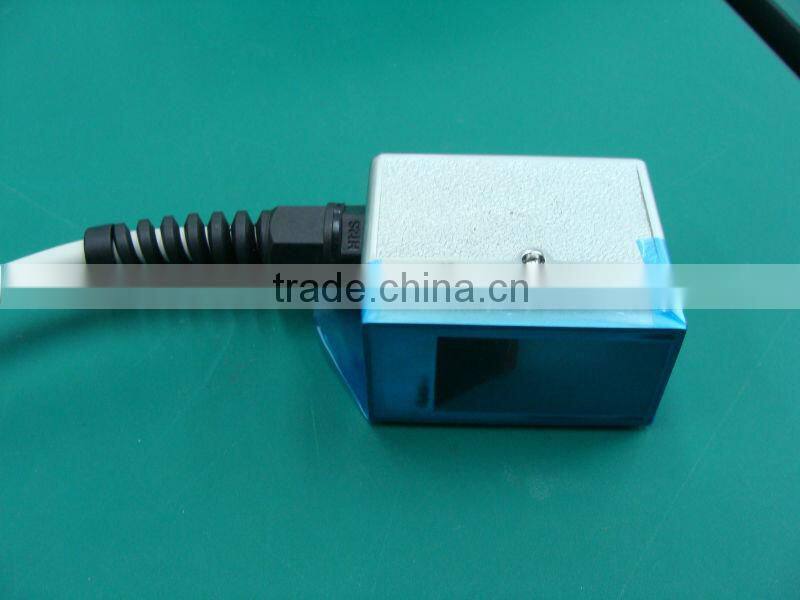

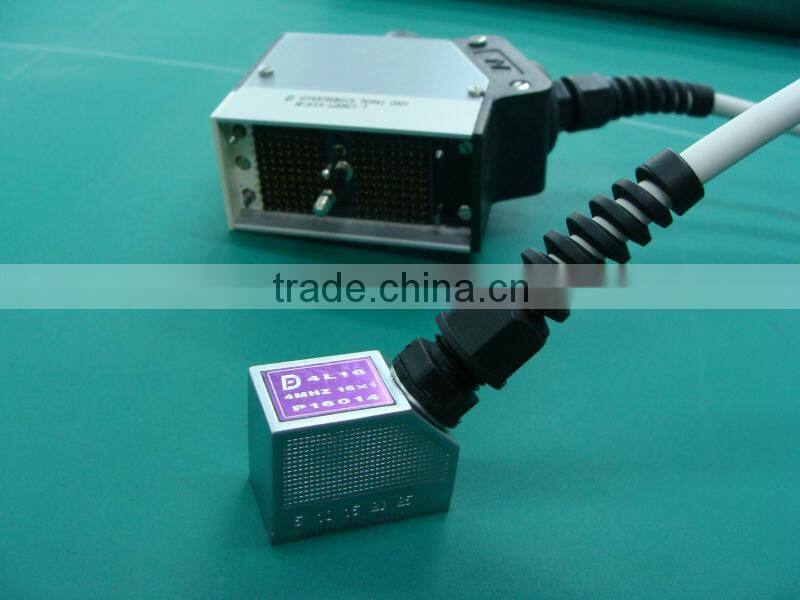

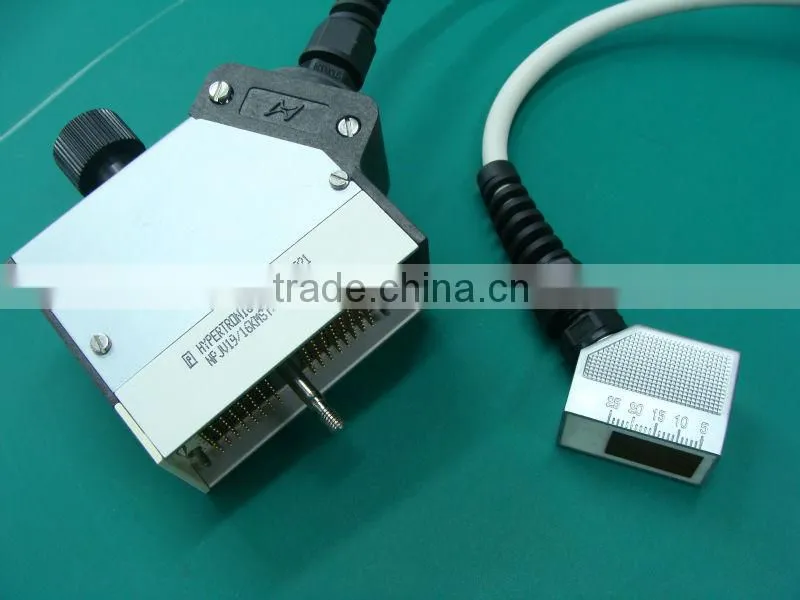

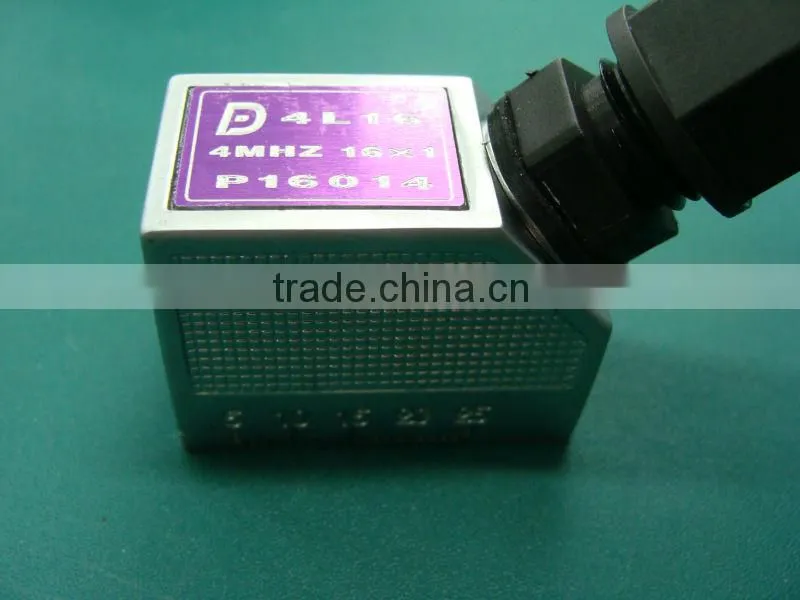

The picture of  phased array wedge integrated probes(transducers)

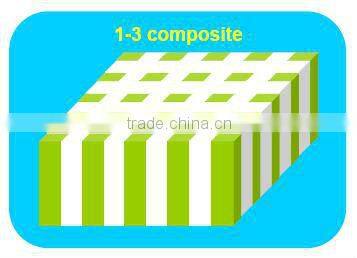

1-3 piezo composite material

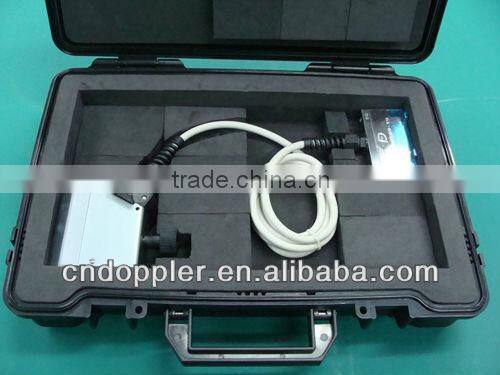

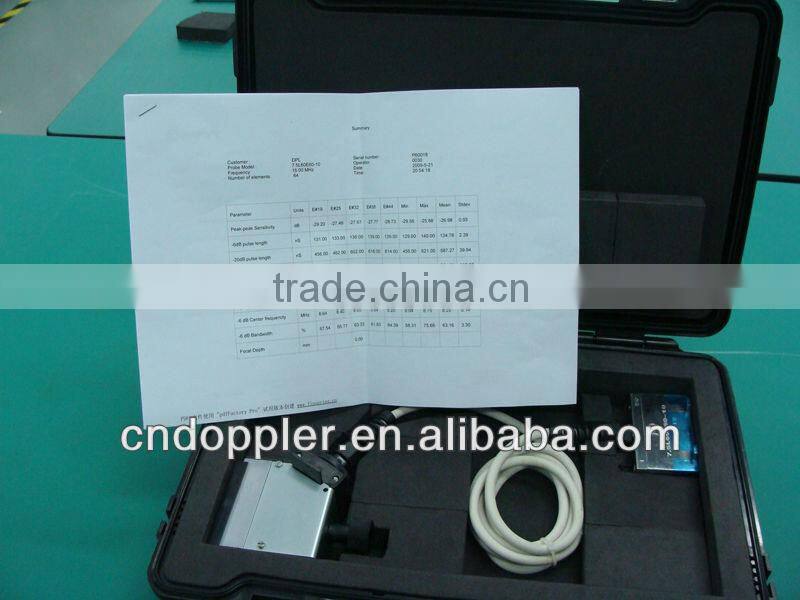

 Suitcase for probes

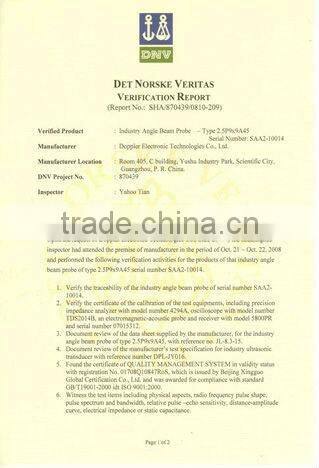

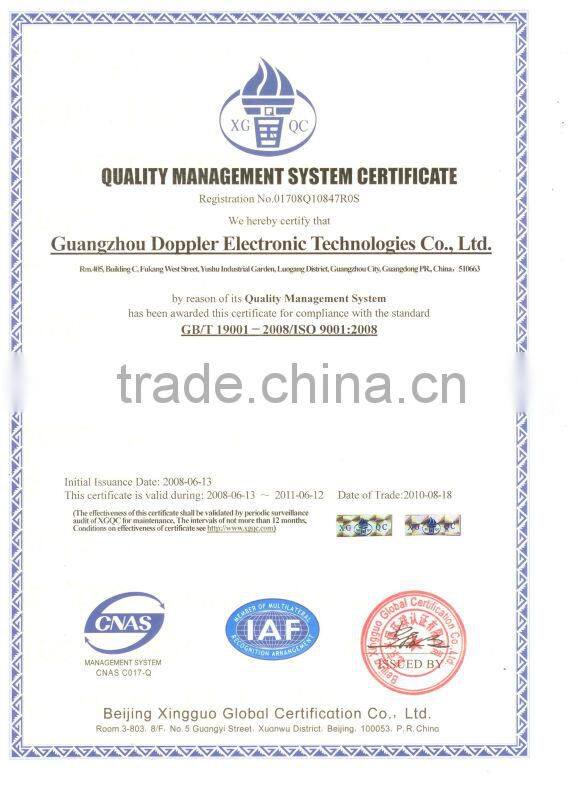

Certificates



Ordering Instructions

Conventional Ultrasonic Phased Array transducer frequency is 1MHz~15MHz.Element quantity is from1 to 128,custom order can be up to 1024 elements.Our company can provide all kinds of array types of transducer including Linear(L),Matrix(M),Annular(A),Concave(C),Wedge Integrated and so on.Other type of transducer can be customize according to custom's requirement.Wedge,connectors,connector switchs and extension cables also can be customized.
