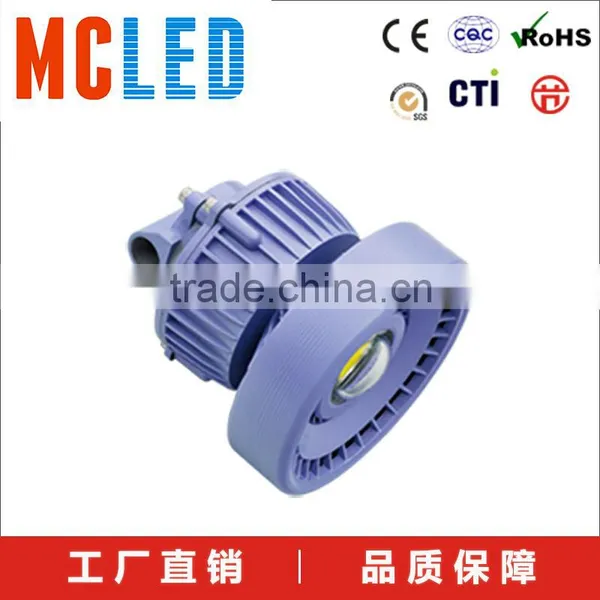

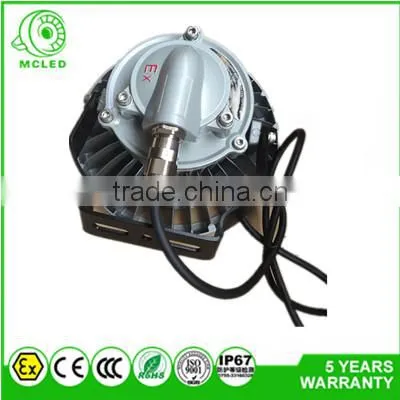

MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting

MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting thumbnail-1
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting thumbnail-2
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting thumbnail-3
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting thumbnail-4
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting thumbnail-5

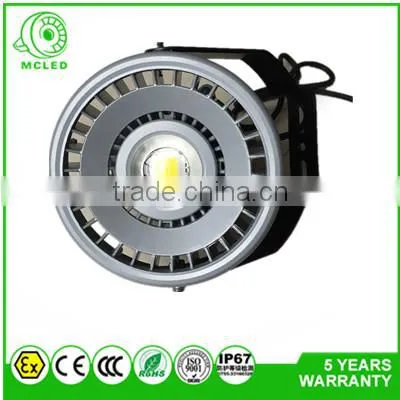

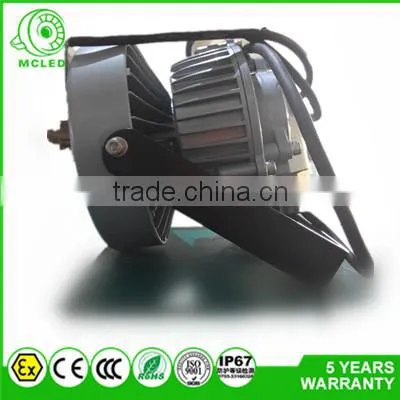

MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting photo-1
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting photo-2
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting photo-3
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting photo-4
MCLED ATEX 30W COB MOSO Explosion-proof Led Industrial Explosion Proof Lighting Fixtures Zone1 and Zone 2 Lighting photo-5
US$ 80 - 90 MOQ: 1 Set
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
AC85-265V
Lamp Power(W):
30
Contact Supplier Request Quote Chat Now
Zhejiang Mingchuang Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux
Input Voltage(V) AC85-265V
Lamp Power(W) 30
Lamp Luminous Flux(lm) 3300
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Cool White
Working Temperature(℃) -25, 45
Working Lifetime(Hour) 50000
IP Rating IP67
Certification CCC, CE, CQC, EMC, GS, LVD, PSE, VDE
Emitting Color Warm White
Base Type Other, MCLED
Place of Origin Zhejiang, China
Brand Name MCLED
Model Number MF04-30W
MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting
Product Description





Model

Item

MF04-3W



LED Consumption

30W



System Consumption

Power*1.1



Input Voltage

85-265V



Working Power Frequency  Range

50Hz/60Hz



Power Factor

 >0.95



Total Harmonic Distortion

 <20%



Working Environment

working temperature:  -25℃-45℃

Woking Humidity:0-100%



Average Temperature in 24 hrs

 <35°



Surface Highest Temperature

<60°



Junction Temperature(TJ)

 <70°



Lamp Luminous Efficacy(Lm/W)

>110lm/w



LED Initial Flux (Lm)

 LED consumption*110lm/w



Lamp Efficiency(%)

 >90%



Color Temperature

 2700-7000K



Color Rendering Index(CRI)

>70



LED Life Span

 >50000



Protection Grade

 IP67



Lens Light Transmittance

 >90%



Beam Angle

                           60-120°



Net weight

 3.4kgs



Gross weight

 4.2kgs



Packing size

 31*31*29.5cm







Note:Lens can be changed according to client's specific requirement.



 MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lightingMCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting



Main products

 MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting

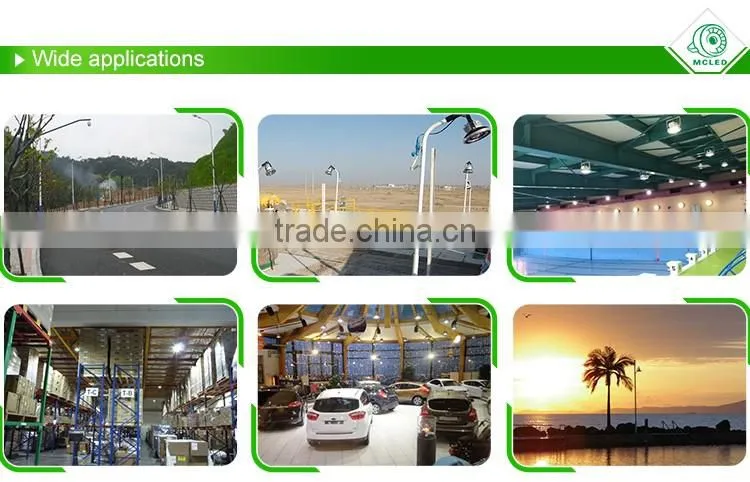

Wide applications

 MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting

MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting

FAQ



8. FAQ

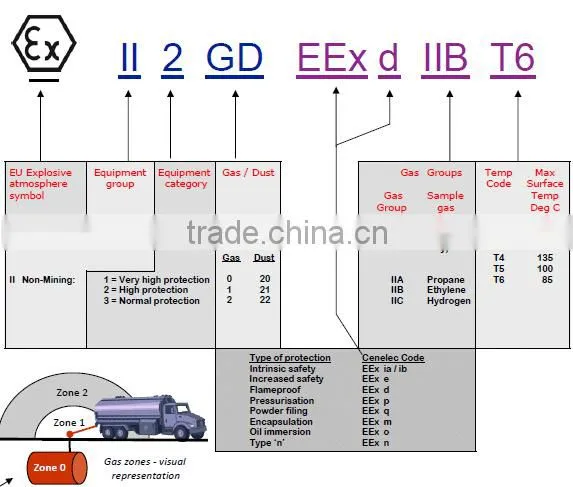

Q1: What is your Ex Grade?



A: It is ExII2GIIC T6 Gb
MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting



Q2:What the meaning of the T6 in Ex Grade?



A: T means the highest surface temperature. T6 maens that the highest temperature is 85degrees. This means that those inflammable and explosive gas (which will eaplore under temperature 85 degrees)will not explore even toch with MCLED explosion proof light.



Q3:Which brand of LED chip MCLED use?

A: Amercial bridgelux

Q4: Can we have the sample for testing?

A: Of course the samples are possible. But we will charge for it. However, if the quantity is more than 250pcs, we will return the sample charge to you.

Q5: How long we can get the sample.

A: The lead time for samples ia usually 3 days.

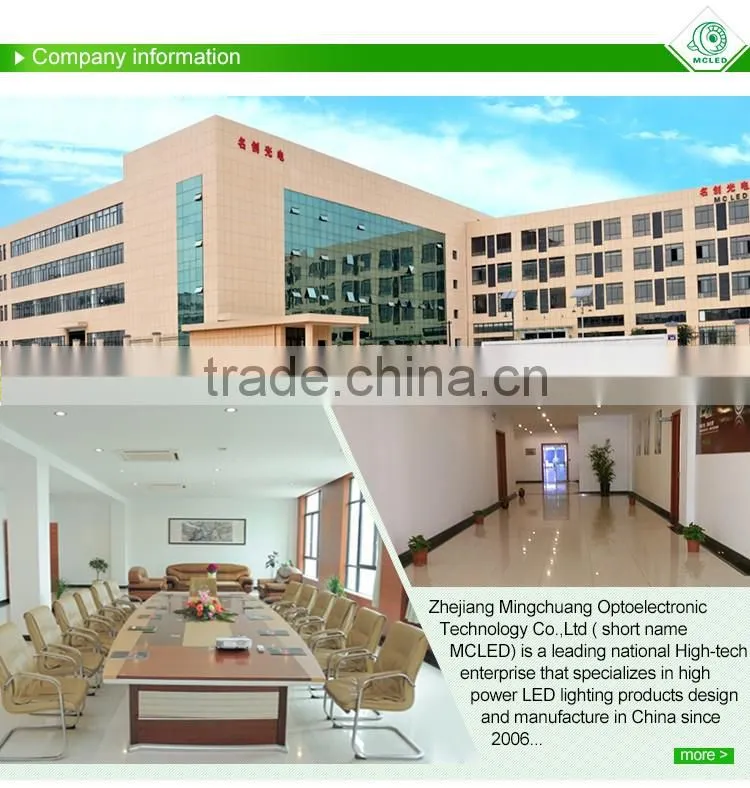

Company information

 MCLED ATEX 30W COB MOSO Explosion-proof led industrial explosion proof lighting fixtures Zone1 and Zone 2 lighting

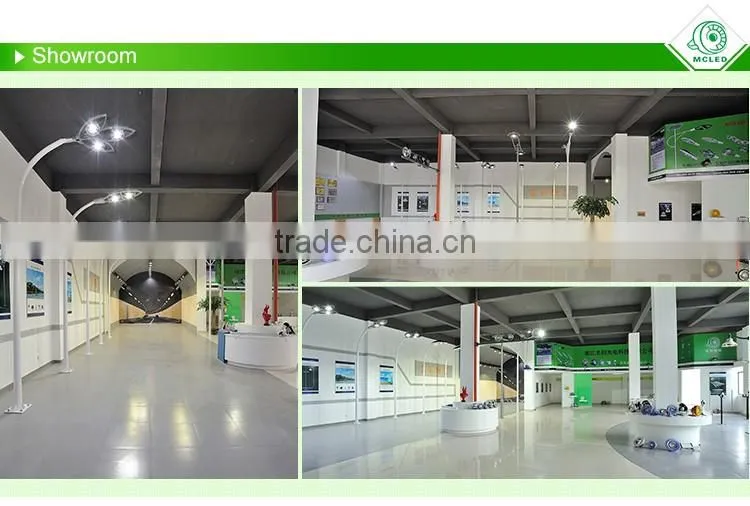

Exhibition show
