Zhejiang Mingchuang Optoelectronic Technology Co., Ltd.: Jinhua, Zhejiang, China; Main products: led street light, leld explosion proof lamp, led flood light, led high bay, led work light

Home > Products > LED Explosion proof lamp > MCLED High quality 30W COB AC85-265V led explosion-proof light led flood lamp

MCLED High quality 30W COB AC85-265V led explosion-proof light led flood lamp

Name: MCLED High quality 30W COB AC85-265V led explosion-proof light led flood lamp
Brand: MCLED
Availability: InStock

FOB Price

US$ 80 - 85 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Bridgelux	Input Voltage(V)	AC85-265V
Lamp Power(W)	20	Lamp Luminous Flux(lm)	2200
Lamp Luminous Efficiency(lm/w)	110	Color Temperature(CCT)	Cool White
Working Temperature(℃)	-25, 45	Working Lifetime(Hour)	50000
IP Rating	IP67	Certification	CCC, CE, CQC, EMC, LVD, PSE, VDE
Emitting Color	White	Base Type	Other, Round
Place of Origin	Zhejiang, China	Brand Name	MCLED
Model Number	MF04-20W

Product Description

MCLED High quality 30W COB AC85-265V led explosion-proof light led flood lamp

Product Description

Model Item	MF04-20W
LED Consumption	30W
System Consumption	Power*1.1
Input Voltage	85-265V
Working Power Frequency Range	50Hz/60Hz
Power Factor	>0.95
Total Harmonic Distortion	<20%
Working Environment	working temperature: -25℃-45℃ Woking Humidity:0-100%
Average Temperature in 24 hrs	<35°
Surface Highest Temperature	<60°
Junction Temperature(TJ)	<70°
Lamp Luminous Efficacy(Lm/W)	>110lm/w
LED Initial Flux (Lm)	LED consumption*110lm/w
Lamp Efficiency(%)	>90%
Color Temperature	2700-7000K
Color Rendering Index(CRI)	>70
LED Life Span	>50000
Protection Grade	IP67
Lens Light Transmittance	>90%
Beam Angle	60-120°
Net weight	3.4kgs
Gross weight	4.2kgs
Packing size	313129.5cm
Note:Lens can be changed according to client's specific requirement.

Main products

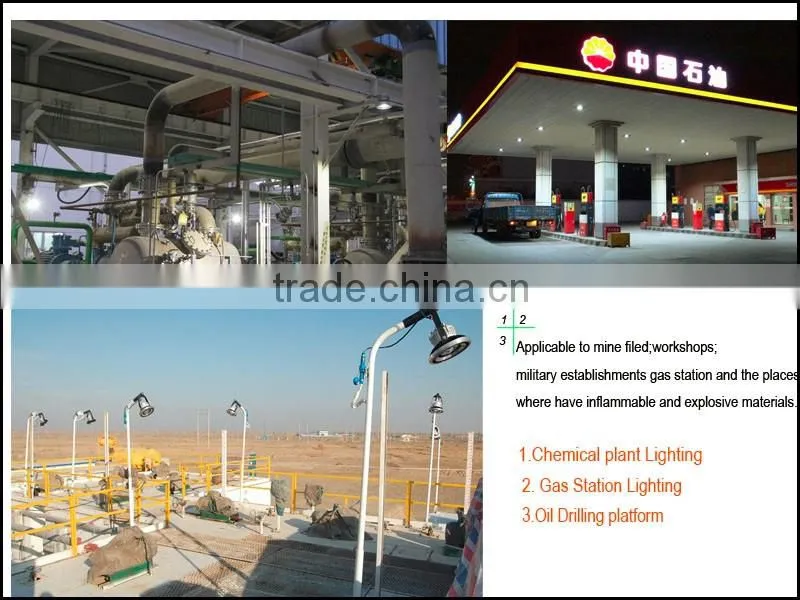

Wide applications

FAQ

8. FAQ

Q1: What is your Ex Grade?

A: It is ExII2GIIC T6 Gb

Q2:What the meaning of the T6 in Ex Grade?

A: T means the highest surface temperature. T6 maens that the highest temperature is 85degrees. This means that those inflammable and explosive gas (which will eaplore under temperature 85 degrees)will not explore even toch with MCLED explosion proof light.

Q3: Can we have the sample for testing?

A: Of course the samples are possible. But we will charge for it. However, if the quantity is more than 250pcs, we will return the sample charge to you.

Q4: How long we can get the sample.

A: The lead time for samples ia usually 3 days.
