2U 8*2.5''/3.5'' HDD With 500W Power Supply and Sliding Kit Storage Server Case

Guangzhou Daoqin Electronic Technology Co., Ltd.
2U 8*2.5''/3.5'' HDD With 500W Power Supply and Sliding Kit Storage Server Case thumbnail-1
2U 8*2.5''/3.5'' HDD With 500W Power Supply and Sliding Kit Storage Server Case photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Rack
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Rack
Form Factor ATX
Material Aluminum Alloy, Acrylic, Steel, Other, Aluminum Alloy, Acrylic, Steel, 1.2mm SGCC/ Stainless Steel/ Alunimum
Style With Fan, With Power Supply
Front Ports USB
Brand Name DAOHE/OEM
Model Number R2308-03A-600P-S
Place of Origin Guangdong, China

Specifications

1. Support 8*2.5''/3.5'' External and 2*2.5'' Internl

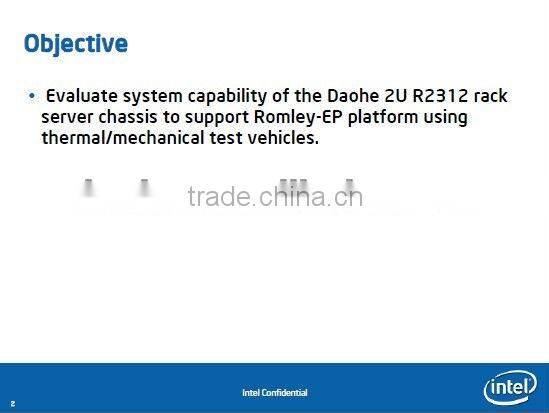

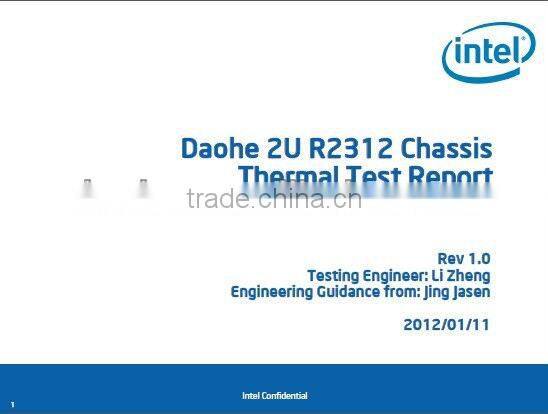

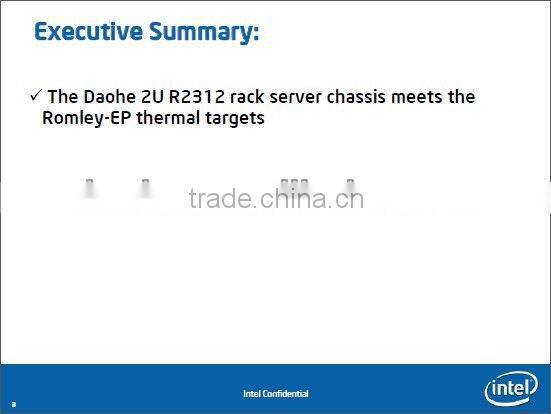

2. This chassis passed Intel Thermal Test Report
3. PSU: 500W

2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case



2U R2308-03A 8 bays Storage Server Rackmount Chassis



Specific Parameter
Name of Commodity: 2U 8 bays Storage Server Rackmount Chassis
Model No. : R2308-03A
GeneralityMetal materialSGCC
Metal thickness1.2mm
Panel materialABS
M/B supportEEB(12"*13") / CEB(12"*10.5") / ATX
CPUDP Xeon(Intel) / DP Opteron(AMD) / Core(Intel)
SizeD*W*H(mm)680*430*88
D*W*H(inch)26.7"*16.9"*3.5"
Drive   Bay3.5''/2.5''HDD8 (hot swap)
Slim CD-ROM1
Slim FDD0
Power support2U 500W
Front   panelcontrol buttonpower on/off / reset
indicatorpower   status / HDD Activity / Lan Activity
I/O ports0
Expansionswitchable rear door
7   half-length slots
Riser   card(optional)
Backplane2 (Mini-SAS)
System coolingmiddle4*8cm
Applications1.security servers, VOD servers
2.Web servers (website/email/fire   wall/VPN/storage)
game   server(DB/Game/Gate/Log-in/web/SQL)
4.high server group
5.NAS and SAN

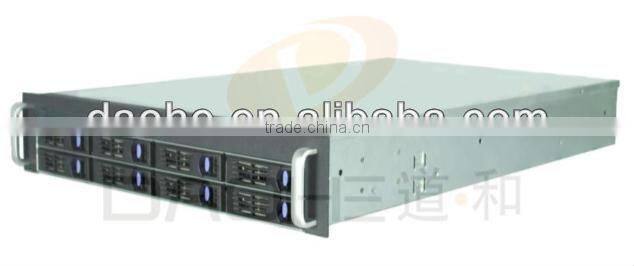

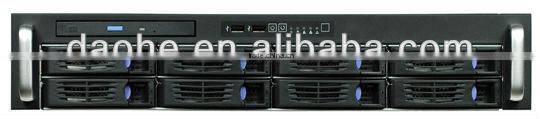

R2308 Front Side



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

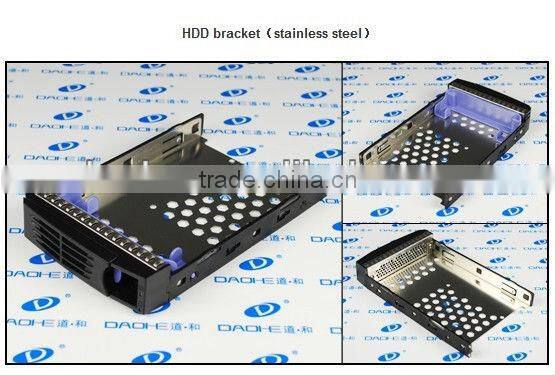

 R2308 HDD Bracket (Stainless Steel)



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

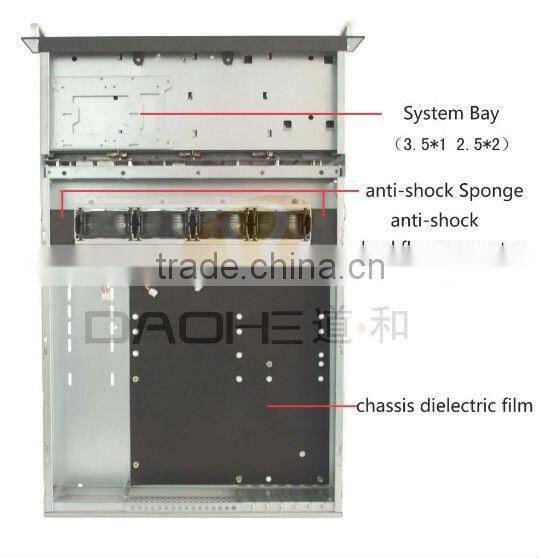

R2308 System Layout Overview

 2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

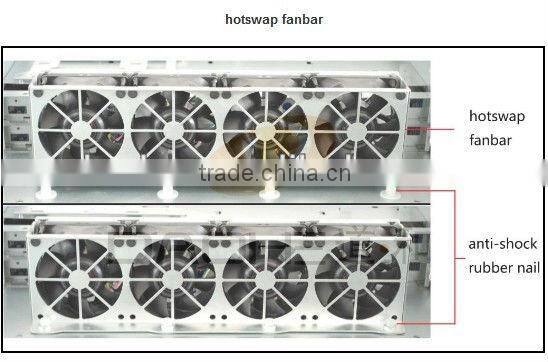

R2308 Cooling System



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

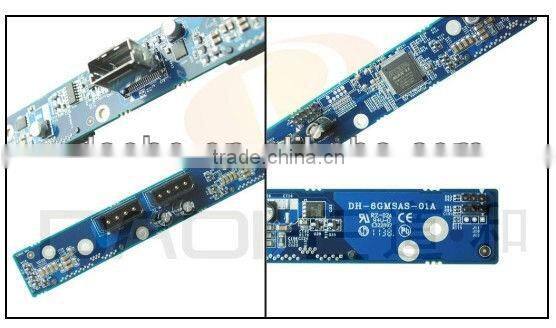

Mini Sas Backplane 01A



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

01A Series Backplane Features:



-Mini-SAS backplane pass Intel transmission Speed test,
  6GB SAS connector make the transimission more stable.

-Mini-SAS backplane adopts lead-free Silver Pastering Technology,
15U  gilded connector make the bakplane more stable and work longer.

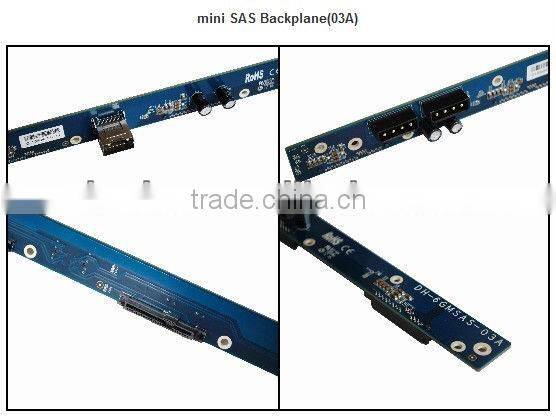

Mini Sas Backplane 03A
2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

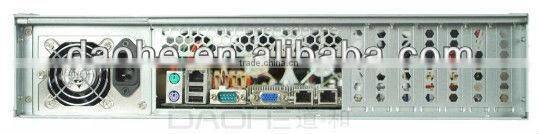

R2308 Rear Window



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case





 R2308 Apprearance



2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case



 Package: Double Carton

2U 8*2.5''/3.5'' HDD with 500W Power Supply and sliding kit Storage Server Case

   Daohe's Hot Swap Series Best Selling Points:



    1. Passed Intel Thermal Test Report



    2. Intel ATX sever chassis supplier



    3. DIY Server users' first choice



    4. CE Certificate



     5. OEM Service Provider



     6. 1 year Warranty



     7. Payment Terms: L/C/T/T/Western Union



     8. Fast Delivery
