Product Details
Brand Name: | CONQUEROR | Model Number: | GS-100 | Place of Origin: | Fujian, China |
Product Description

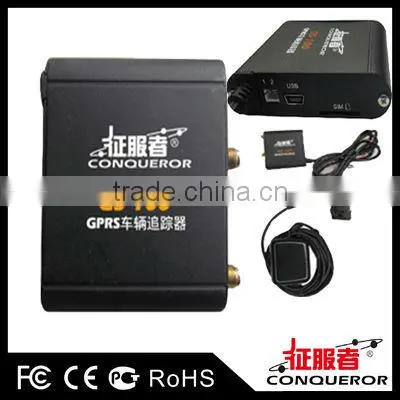

GPS Tracker Car GPS Tracking System GS 100 With Google GPRS Tracker
Main functions
Live tracking by time interval,by distance or car moving veer
Geo-fencing alarm
Low power alarm
Speeding alarm
Vibration/shocking alarm
Power off alarm
Engine cut/stop car moving/enable car moving remotely
Alarm when tracker enters/exits GPS blind area
Built-in motion sensor for power saving
GPS Data logging:Position logging capacity up to 260,000+ waypoints
I/O: 5 digital inputs and 5 outputs.
Hands-free phone for two way communication.
Door opening alarm
Windo opening alarm
Get detail actual address via SMS directly.
Fuel monitoring via centre system (Optional)
Google map link to show location via SMS
Arm/disarm and Open/close car door by SMS remotely
ACC detecting: Car door on/off stats, Engine on/off status,by SMS and Web-based GPS tracking systemArm&disarm and lock&unlock car door by Remotes/transmitter(Optional)
GPS Camera monitoring
Voice content edition for assignament dispatch from Web tracking platform
Fuel leveo report (optional,it needs fuel sensor)
Tempreture monitoring (optional,it needs tempreture sensor)
Power voltage level monitoring/alarm
RFID control for engine or car door, drviver identify
Smoking alarm (Optional, it needs smoking sensor)
Smart card for driver identity/school bus control (Optional)

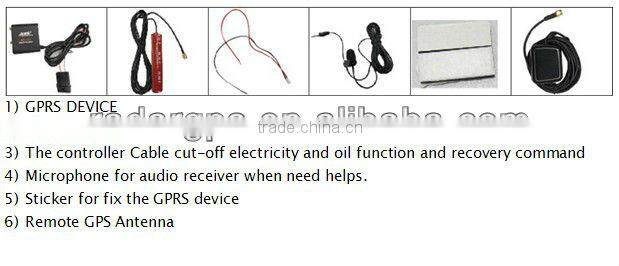

Packing List
GPRS Specification
GPRS Hardware | GSM | 850/900/1800/1900 MHz |
GPRS | Class 12, TCP/IP build in GSM Module | |
GPS | 1.57542GHz±1.023MHz | |
Channels | 51 | |
Tracking sensitivity | -159dBm | |
Wireless RX module | 390Mhz ( 433.1Mhz) | |
Capturing sensitivity | -144dBm | |
Locating time | Hot start<2sec(open sky) | |
Warns start<15sec | ||
Cool start<36sec (open sky) | ||

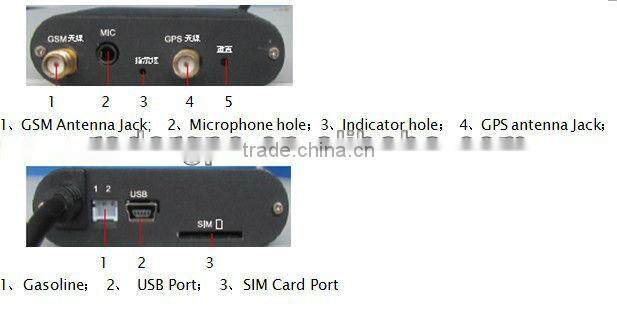

Build in antenna | GSM antenna, GPS antenna | |
LED indicator | 2 LED indicators: GPS/GSM | |
Power | 12-24 DC from vehicle power supply | |
Size | 63 L×53.5(w)×17(H)mm | |
Application environment | Working temperature -25°C to +80°C | |
Storage temperature -30°C to +85°C | ||
Working humility 45% to 80% RH | ||
Storage humility 30% to 90% RH |
Tracking logger: Tracks inquiries

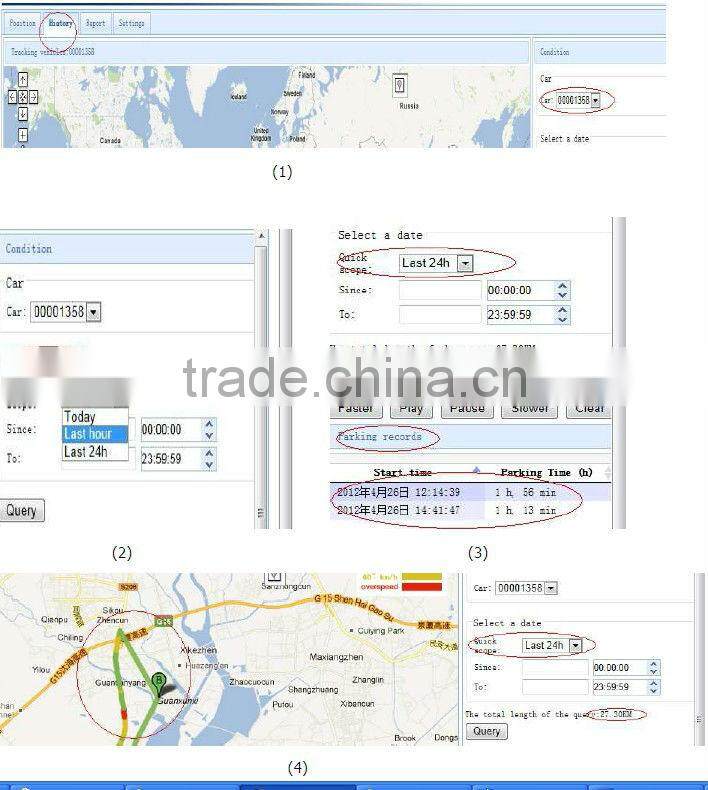

1)Select the car in the checking condition box (as below picture 1 )
2)Check by time: can choose quick inquiry or specific time inquiry
3) Quick inquiry by Today, the latest 1 hr, yesterday, recent 2 days, recent 1 week
and recent 1 month.
4)Specific time inquiry: Customers can select the starting time and ending time.
5)Click the inquiry button after choose the car and time, the tracks requested will
show in the map. (as below picture 2 )
6)Parking records show in the parking list. At the same time, system will show the
mileage of the car within the selected time. (as below picture 3,4)
7)Click the parking list and choose the time, the map will show the landmark S and
the screen of the landmark. The screen will show the parking address, longitude and
latitude, starting and ending time of the parking and the duration.
(as below picture 5 )
8)In the map, A stands for the starting of the tracks, B stands for the ending of the
tracks.
9)Click PLAY button after inquiry setting, the landmark of the car will move from A to
B.

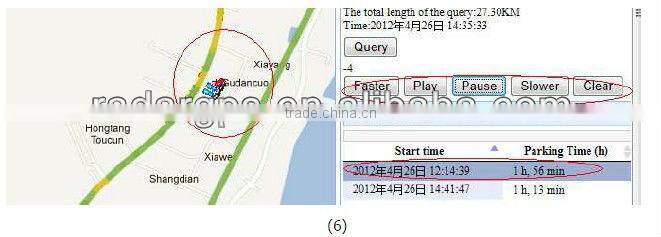

10)choose certain button(faster, slower, play, pause) to set the function of
acceleration, deceleration and pause. (as below picture 6)
11)Click delete button can cancel the track line and landmark in the map.
