Gps Car Tracker, Vehicle Gps Tracker, GPRS Tracker Real-time Vehicle Tracking System 4S-666

Gps Car Tracker, Vehicle Gps Tracker, GPRS Tracker Real-time Vehicle Tracking System 4S-666 thumbnail-1
Gps Car Tracker, Vehicle Gps Tracker, GPRS Tracker Real-time Vehicle Tracking System 4S-666 photo-1
Negotiable MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
2.5 inch
Contact Supplier Request Quote Chat Now
Xiamen Jiayin Technical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size 2.5 inch
Place of Origin Fujian, China
Brand Name CONQUEROR
Model Number 4S-666
Warranty 1 Years

GPS + GPRS Real-time Tracking System 4S-666 gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666

Main functions
Geo-fencing alarm
Speeding alarm
Alarm when tracker enters/exits GPS blind area
GPS Data logging:Position logging capacity up to 260,000+ waypoints
Power voltage level monitoring/alarm

gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666

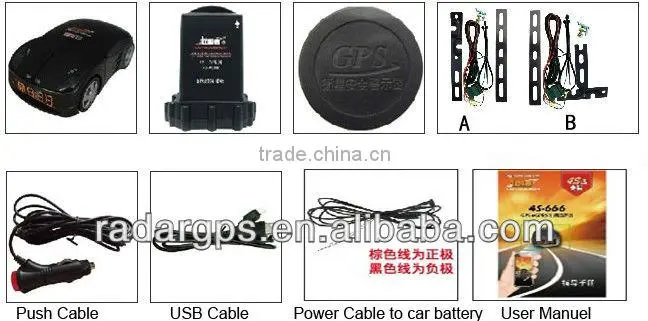

Packing List

gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666

1. GPRS Specification

GPRS Hardware

GSM

850/900/1800/1900 MHz

GPRS

Class 12, TCP/IP build in GSM Module

GPS

1.57542GHz±1.023MHz

Channels

51

Tracking sensitivity

-159dBm

Wireless RX module

390Mhz ( 433.1Mhz)

Capturing sensitivity

-144dBm

Locating time

Hot start<2sec(open sky)

Warns start<15sec

Cool start<36sec (open sky)

Build in antenna

GSM antenna, GPS antenna

LED indicator

2 LED indicators: GPS/GSM

Power

12-24 DC from vehicle power supply

Size

63 L×53.5(w)×17(H)mm

Application environment

Working temperature -25°C to +80°C

Storage temperature -30°C to +85°C

Working humility  45% to 80% RH

Storage humility 30% to 90% RH

2. Wireless radar detector Specification( Optional)

radar Hardware

Wireless TX Module

390Mhz ( 433.1Mhz)

VCO Radar Module

Multi-radar detector module

X-BAND

10.525GHz+/-100MHz

K-BAND

24.150GHz+/-175MHz

K-BAND

24.125GHz+/-175MHz

KA-BAND

34.700GHz+/-1300MHz

KA-BAND

33.400GHz+/-1300MHz

LASER BEAM

904mn+/-33MHz

INPUT VOLT.

DC 12V-24V

INPUT CURRENT

150-300mA

WORKING TEMPERATURE

-25·C~75·C~

MAX BEARABLE TEMPERATURE

100·C~125·C~

Tolerance

+/- 10M

Power

12-24 DC from vehicle power supply



Tracking logger: Tracks inquiries

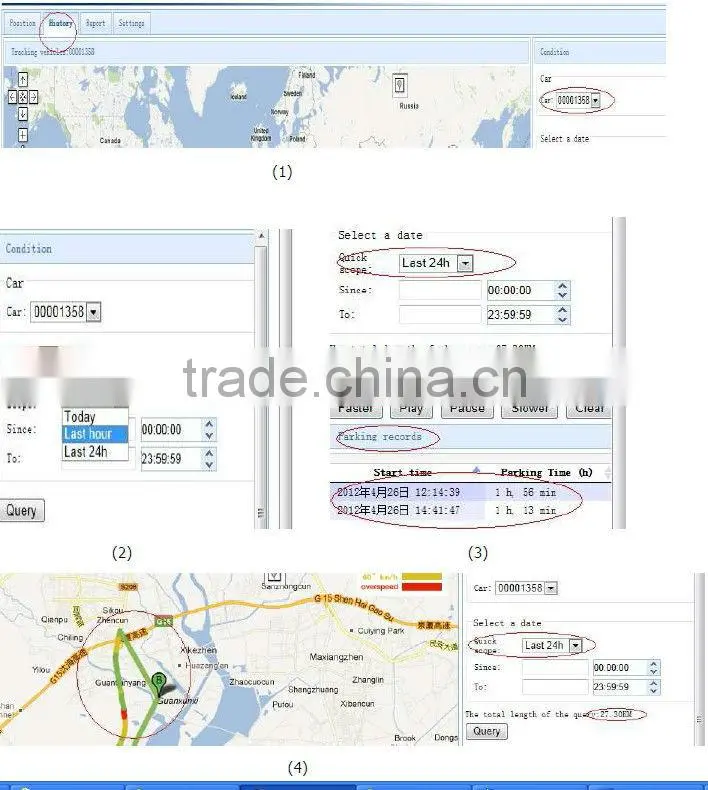

1)Select the car in the checking condition box (as below picture 1 )
2)Check by time: can choose quick inquiry or specific time inquiry
3) Quick inquiry by Today, the latest 1 hr, yesterday, recent 2 days, recent 1 week
and recent 1 month.
4)Specific time inquiry: Customers can select the starting time and ending time.
5)Click the inquiry button after choose the car and time, the tracks requested will
show in the map. (as below picture 2 )
6)Parking records show in the parking list. At the same time, system will show the
mileage of the car within the selected time. (as below picture 3,4)
7)Click the parking list and choose the time, the map will show the landmark S and
the screen of the landmark. The screen will show the parking address, longitude and
latitude, starting and ending time of the parking and the duration.
(as below picture 5 )
8)In the map, A stands for the starting of the tracks, B stands for the ending of the
tracks.
9)Click PLAY button after inquiry setting, the landmark of the car will move from A to
B.

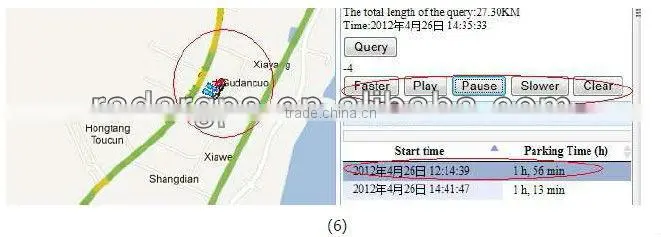

10)choose certain button(faster, slower, play, pause) to set the function of
acceleration, deceleration and pause. (as below picture 6)
11)Click delete button can cancel the track line and landmark in the map.

  gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666

gps car tracker, vehicle gps tracker, GPRS tracker Real-time Vehicle Tracking System 4S-666
