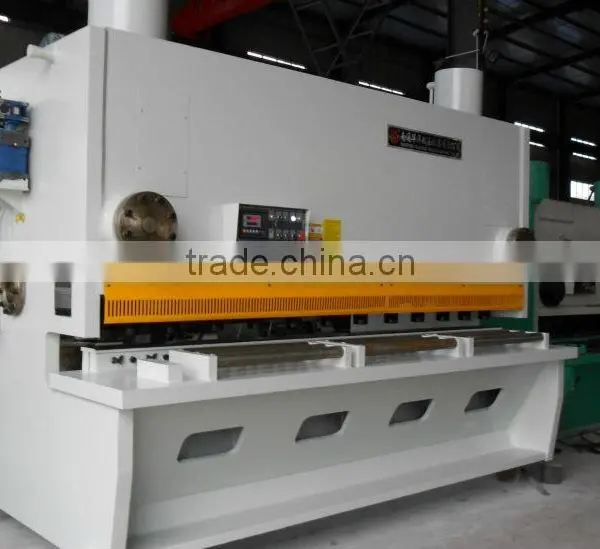

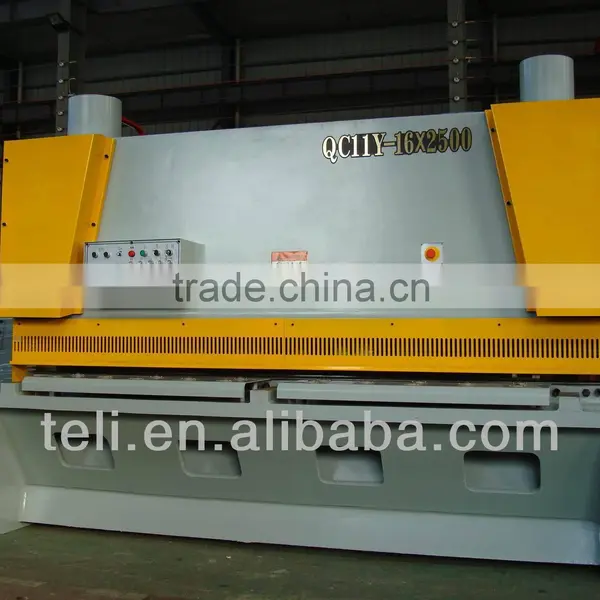

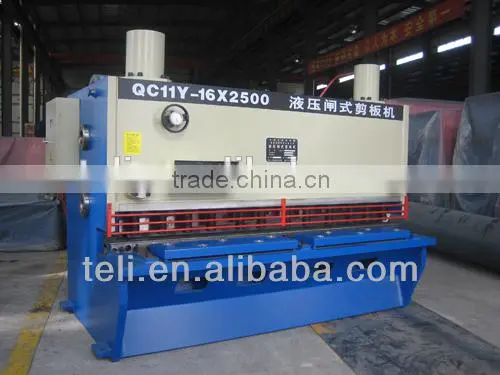

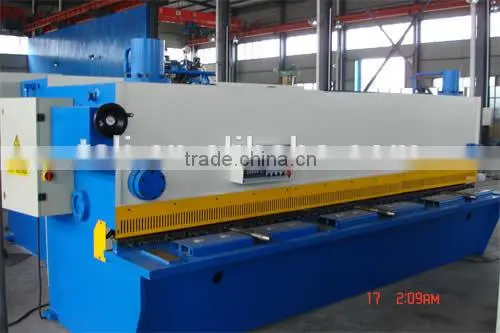

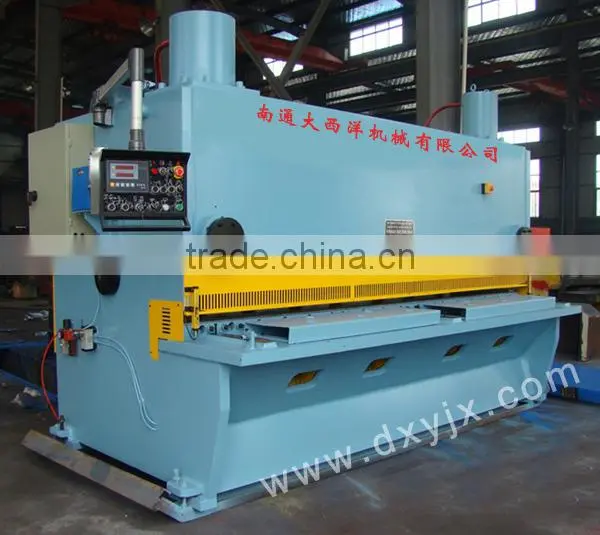

cnc hydraulic guillotine shearing machine
Name |
Data |
Unit |
Remarks |
|
Max cutting thickness carbon steel |
16 |
mm |
|
|
Max cutting thickness stainless |
8 |
mm |
|
|
Max cutting width |
2500 |
mm |
|
|
Cutting angle |
0.5-2.5° |
|
|
|
Intensity of sheared material |
450 |
N/mm2 |
|
|
Distance of back gauge |
20-800 |
mm |
|
|
Times of stroke |
6-20 |
Times |
|
|
Depth of throat |
120-300 |
mm |
|
|
Distance between vertical columns |
2730 |
mm |
|
|
Length of blade |
2600 |
mm |
|
|
Height of working table |
900 |
mm |
|
|
Main motor |
Type |
Y160L-4 |
|
B5 |
Power |
22 |
KW |
|
|
Speed |
1470 |
rpm |
|
|
Back gauge motor |
Type |
Y711-4 |
|
|
Power |
0.5 |
KW |
|
|
Speed |
1500 |
rpm |
|
|
Gear pump |
Type |
NB4-G63F |
|
|
Speed |
63 |
L/min |
|
|
Pressure |
32 |
MPa |
|
|
Weight |
8.8 |
T |
|
|
Size |
3100*2100*2200 |
mm |
|
|
Price |
15200 |
USD |
FOB shanghai |
|
1,main construction :
steel-welded construction, vibration to eliminate stress with high strength and good rigidity
2,advanced technology
2-1,integrated hydraulic transmission system with good reliability.
2-2, triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
2-3, mechanical rear stopper with manual fine tuning and digital indication.
2-4, clearance in between shearing blades adjusted by hand wheel to be quick accrete and convenient.
2-5, rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
2-6,upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece.
2-7,function of shearing in sections function of aligning with light.
2-8,optional:rear material holding device.
2-9,protective grating controlled by electrical system.
3,main parts :
A, main electrical parts supply by siemens
B, hydraulic system : China
C, seals : Japan
D, main motor: China
E, blade: China material 6CrW2Si
4,inspect standard: National standard : GB/T 14349-93
