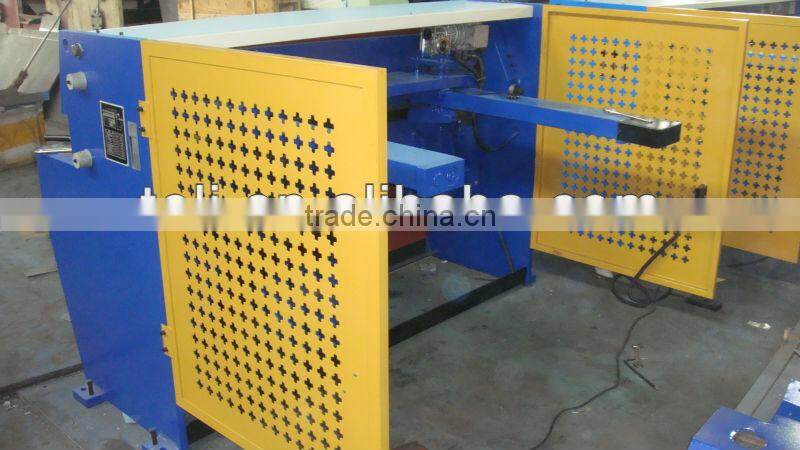

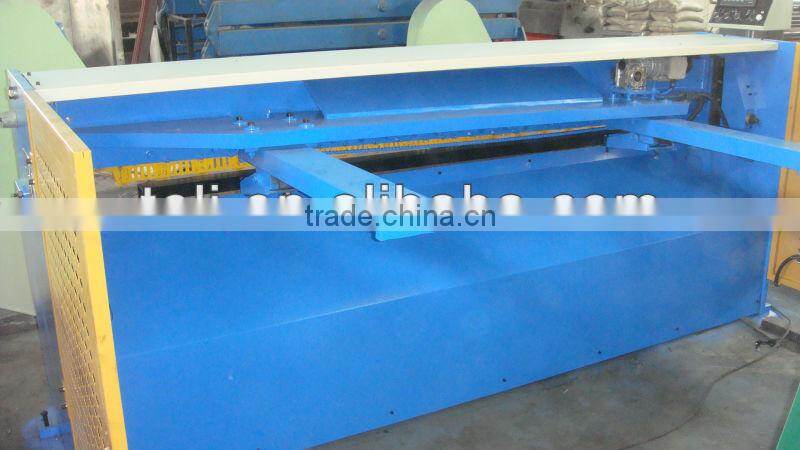

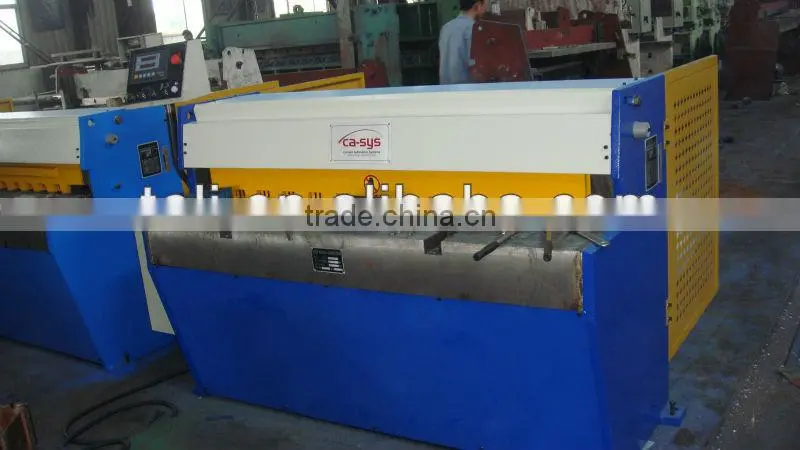

electric sheet metal shearing machine

Specifications

electric sheet metal shearing machine
foot pandel operated
high speed and precision
long working life

  electric guillotine shearing machine



1)This machine uses single-side mechanical strive of beautiful appearance simple construction,
easily operation, safe and reliable.

2)It's widely used in motor, electrical,
automobile industries and all shops of other industries where sheet metalcutting is required.

3)This machine is of simple construction, nice design, sensitive and reliable control
and easy maintenance, low energy consumption.

4) It's widely used in motor, electrical,
automobile industries and all shops of other industries where sheet metalcutting required.

5)Packing:steel pallet

 main parts :

A, main electrical parts supply by siemens

D, main motor: China

E, blade: China material 6CrW2Si

3,inspect standard: National standard : GB/T 14349-93

4,documents additional:

4-1,operation manual ( electricity principle drawing and foundation drawing )

4-2,quality certification

4-3,packing list(include the spare parts)

Specification	Max.shearing thickness	Max.shearing width	Shearing angle	Stroke times	Backgauge range	Motor power	Dimension
	mm	mm	°	min	mm	kw	mm(L*W*H)
Q11-2*1000	2	1000	1°40	55	350	1.5	1575*1405*1073
Q11-3*1300	3	1300	2°14	54	350	2.2	2080*1505*1245
Q11-3*1500	3	1500	2°	54	350	2.2	2280*1505*1245
Q11-4*2000	4	2000	1°30	55	500	4	3000*1970*1250
Q11-4*2500	4	2500	1°30	55	500	5.5	3500*1970*1250
Q11-4*3200	4	3200	1°14	50	500	7.5	4200*1970*1300
Q11-4*4000	4	4000	1°14	50	500	7.5	5000*1970*1350
Q11-6*2000	6.3	2000	2°	40	500	7.5	3175*1765*1530
Q11-6*2500	6	2500	1°45	40	500	7.5	3675-1765*1530
Q11-6*3200	6	3200	1°30	40	500	7.5	4450*2165*1520
Q11-8*2500	8	2500	1°57	45	700	11	3690*2165*1520
Q11-13*2500	13	2500	3°	30	700	15	3680*2330*2500
