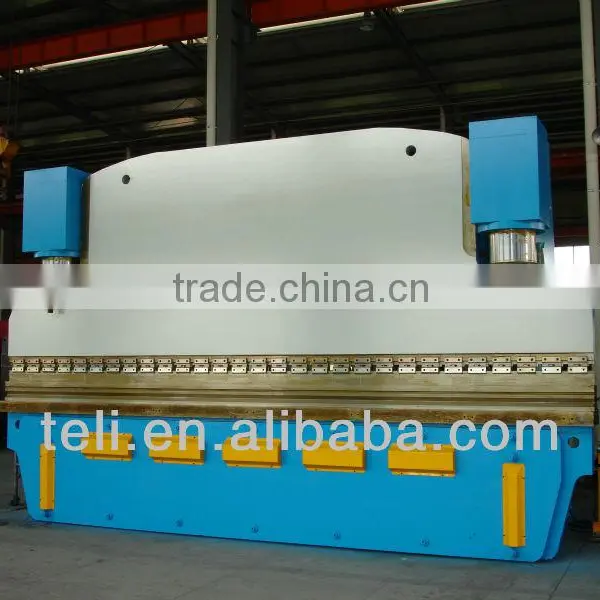

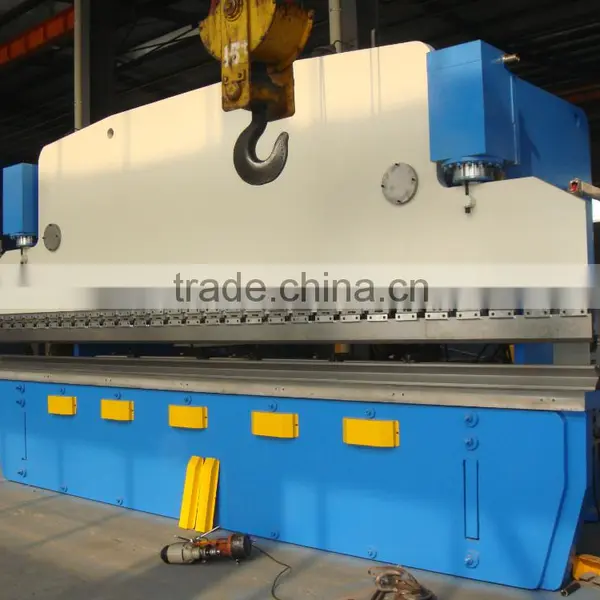

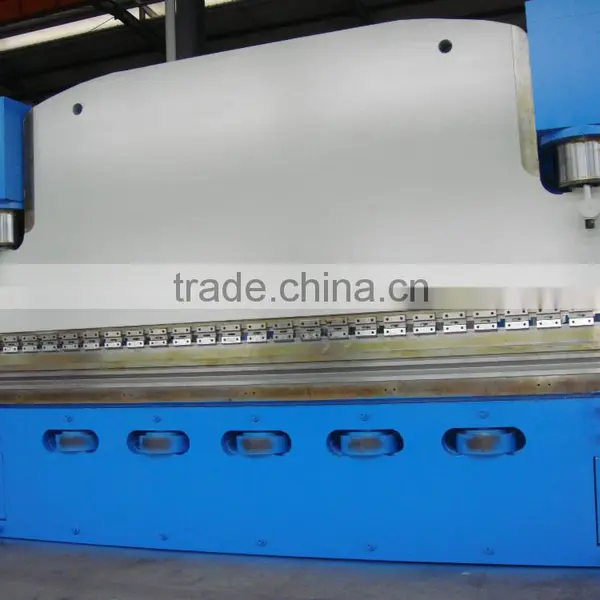

cnc press brake machine
technical data:
No | Name | Data | Unit | Remarks | |
1 | Nominal pressure | 2500 | KN |
| |
2 | Length of working table | 6300 | mm |
| |
3 | Plate strength | ≤450 | N/mm2 |
| |
4 | The distance of column | 4600 | mm |
| |
5 | Ram stroke | 150 | mm |
| |
6 | Max opening height | 470 | mm |
| |
7 | Depth of throat | 540 | mm |
| |
8 | Working table height | 1100 | mm |
| |
9 |
Ram speed | Free | 80 | mm |
|
Running | 8 | mm |
| ||
Return back | 60 | mm |
| ||
10 | Main | Type | Y180M-4 B5 |
| |
Power | 22 | KW |
| ||
Speed | 1460 | rpm |
| ||
11 | Max pressure of system | 26 | Mpa |
| |
12 | Gear pump | Type | NB2-G63F |
| |
Speed | 63 | L/min |
| ||
Pressure | 32 | Mpa |
| ||
13 | Out size | Length | 6000 | mm |
|
Width | 2050 | mm |
| ||
Height | 3050 | mm |
| ||
14 | Weight | 22.5 | T |
| |
Main part supplier :
1,bearing YSD famous brand of China
2,main motor siemens
3,seals NOK from Japan
4,electrical parts siemens
5,cylinder shandong from brand of china
6 mold shanghai
7,servo valves Bosch from Germany
8,pressure valves Bosch from Germany
9,pump shanghai
10,main cylinder seals NOK from Japan
11,CNC system Holland
12,grating HEIDENHAIN from Germany
13,servo motor ESTUN
3, Performance:
3-1 All steel welded structure, vibrating treatment of aging for removal of internal stress with high strength and good rigidity.
3-2 Electro-hydraulic synchronization of mechanical limit stopper balance with high precision.
3-3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.

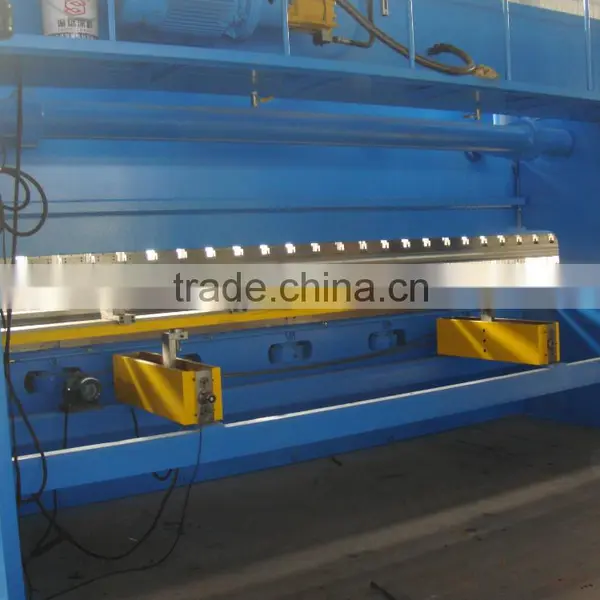

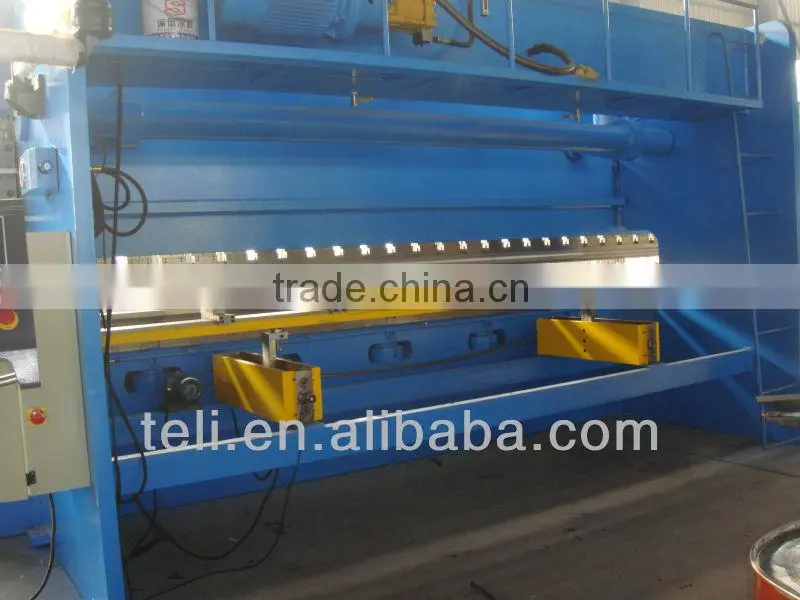

3-4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
