Specifications
1. four column2.PLC control
3.hydraulic system

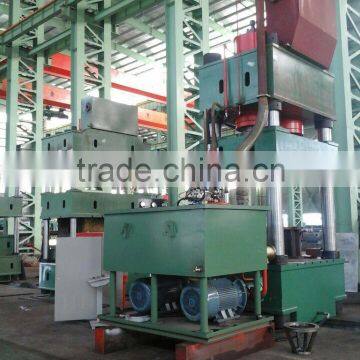

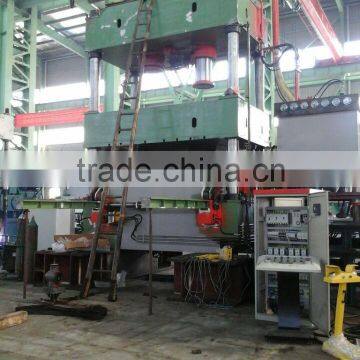

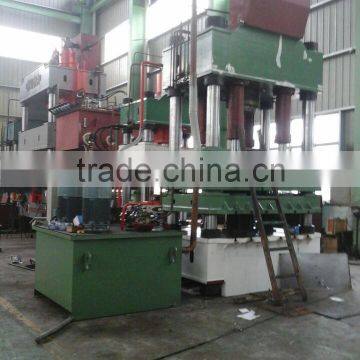

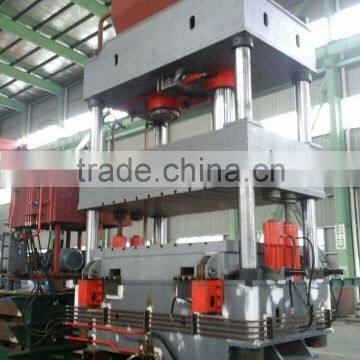

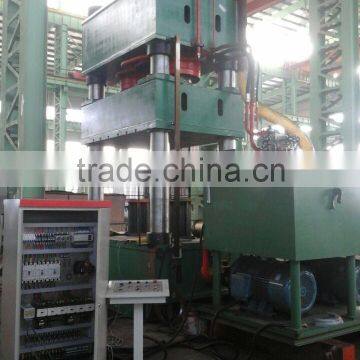

hydraulic press brick making machine
hydraulic press brick making machine
This hydraulic machine is suitable for pressure processing of plastic, metal and all kinds of matericals.
This machine is suitable for pressure processing of plastic matericals; it is used in fitting, bending, side bending and sheet metal drawing ect. It can be also used for correcting, pressing, grinding wheel modularizing, cold extrusion of metal parts, and plastic, sintered and insulating material compacting.
Stamping buffer device
moving table
oil heating & cooling device
stroke sensor
industrial touched screen
floating guide and rolling racket for die changing
die illuminating device
tool quick clamp device
slide locking device
proportional pressure & speed adjusting device for slide
light curtain
ejcting device(hudraulic or mechanical)
PLC imported PLC
Power socket
die changing dolly
manipulator
imported seal
die
top located hydraulic system
die protecting device
TECHNICAL SPECIFICATIONS:
features
This machine adopts advanced design technology of three-dimensional computer controlled and three beams-four columns body structure which makes it classic, contracted and utility.
The separated hydraulic motive power mechanism and electric system ensure the visual performance and convenient service.
The centralized pushbutton control allows adjustment, hand operation and semi-automatic operation.
Working pressure, pressing speed and stroke limit of the press can be adjusted according to process requirement. Two methods of processing operation forming with fixed pressure and forming with fixed stroke can be accomplished. For forming foxed pressure the press can perform pressure holding and delayed automatic return after pressing process.
The hydraulic control system is composed of plug-in integrated valve which possess the high efficiency. The spool performance makes low noise and reduce the connecting pipeline and leak spot.
The pressure adjusted in this hydraulic control system is overflow valve which increase the precision and facility of the pressure adjusted.
The
Technical data |
Unit |
315 |
400 |
500 |
500A |
630 |
800 |
800A |
1000 |
||||||
Rated pressure |
Kn |
3150 |
4000 |
5000 |
5000 |
6300 |
8000 |
8000 |
10000 |
||||||
Working pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
||||||
Block max stroke |
Mm |
100 |
800 |
900 |
1000 |
900 |
1000 |
1200 |
1000 |
||||||
Hydraulic cushion force |
Kn |
1600 |
1000 |
2000 |
2500 |
2500 |
3000 |
3500 |
4000 |
||||||
Hydraulic cushion stroke |
Mm |
300 |
300 |
300 |
350 |
350 |
350 |
400 |
350 |
||||||
Open height |
Mm |
1250 |
1250 |
1500 |
1600 |
1500 |
1600 |
1800 |
1600 |
||||||
Speed of slide |
Mm/s |
100 |
100 |
100 |
150-200 |
150-200 |
150-200 |
150-200 |
150-200 |
||||||
Mm/ |
8-12 |
6-10 |
10-15 |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
|||||||
Mm/s |
60 |
55 |
70 |
100 |
70 |
70 |
120 |
100 |
|||||||
Effective table size |
Mm |
2600 |
1600 |
2400 |
4000 |
3000 |
3600 |
4500 |
3000 |
||||||
Mm |
1500 |
1200 |
1400 |
2200 |
1500 |
2400 |
2500 |
2000 |
|||||||
Machine size |
Mm |
2000 |
1200 |
1900 |
3300 |
2200 |
2900 |
3800 |
2300 |
||||||
Mm |
950 |
800 |
1000 |
1500 |
1000 |
1750 |
1750 |
1250 |
|||||||
Motor |
Kw |
22 |
22 |
2-22 |
45 |
45 |
45+22 |
2*45 |
2*45 |
||||||
hydraulic oil filter, system are equipped on the machine.
Aprogrammable controller is used in the electric control system which makes the performance reliable.
The machine possesses less area, have compact construction and attractive appearance.
technical date:
