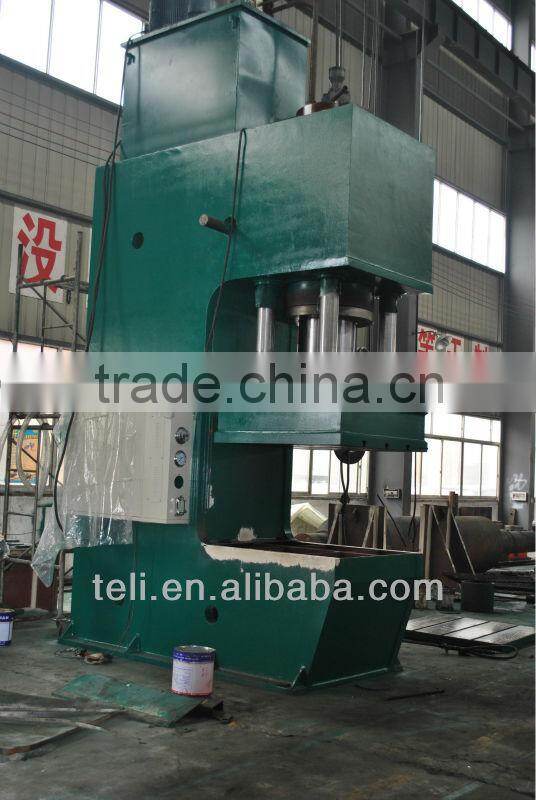

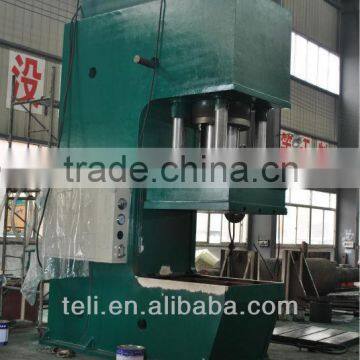

Help CenterHydraulic Press Machine 100 Ton
Related Products
-
Big Size Hydraulic Press Machine PriceUS$ 12,000 - 30,000MOQ: 1 Piece -
Hydraulic Press Brick Making MachineUS$ 40,000 - 56,000MOQ: 1 Piece
-
Hydraulic Press Brick Making MachineUS$ 40,000 - 56,000MOQ: 1 Piece
-
Hydraulic Tile Press MachineUS$ 8,200 - 56,000MOQ: 1 Piece
-
Small Hydraulic Press MachineUS$ 8,200 - 56,000MOQ: 1 Piece
This machine is suitable for pressure processing of plastic matericals; it is used in fitting, bending, side bending and sheet metal drawing ect. It can be also used for correcting, pressing, grinding wheel modularizing, cold extrusion of metal parts, and plastic, sintered and insulating material compacting.
Technical data:
max working pressure 2500Kn
max distance between slide and working table correct 560mm
press and put 1000mm
max storke of slide 500mm
max down speed of slide less than 20mm
max return speed of slide less than 70mm./s
working speed 10mm/s
throat depth 325mm
working table size press and put 850*660 mm
correct 2500*600mm
diameter for cutting hole 150mm
main motor 18.5kw
Stamping buffer device
moving table
oil heating & cooling device
stroke sensor
industrial touched screen
floating guide and rolling racket for die changing
die illuminating device
tool quick clamp device
slide locking device
proportional pressure & speed adjusting device for slide
light curtain
ejcting device(hudraulic or mechanical)
PLC imported PLC
Power socket
die changing dolly
manipulator
imported seal
die
top located hydraulic system
die protecting device
