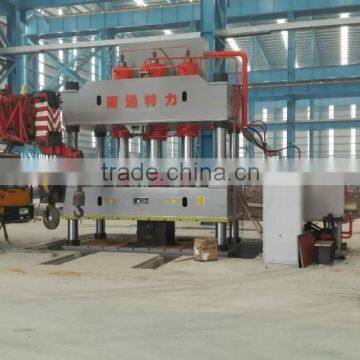

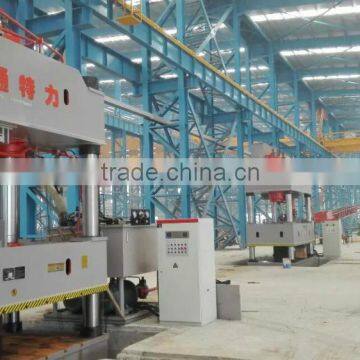

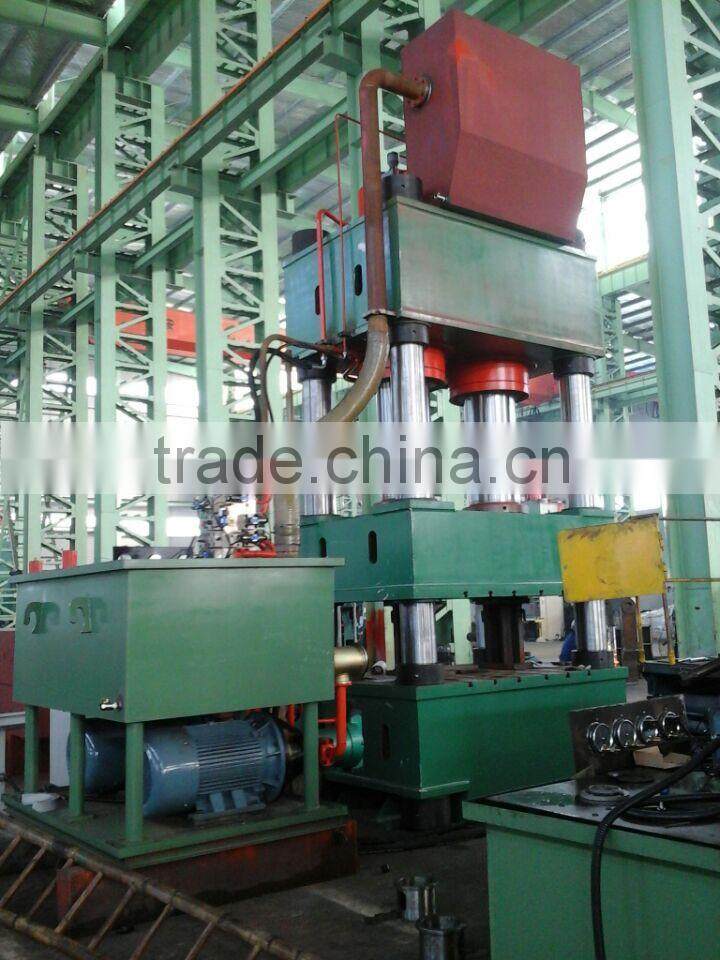

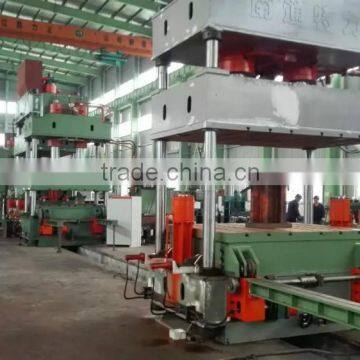

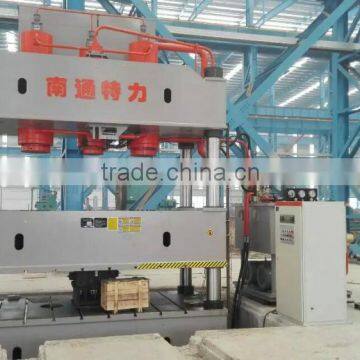

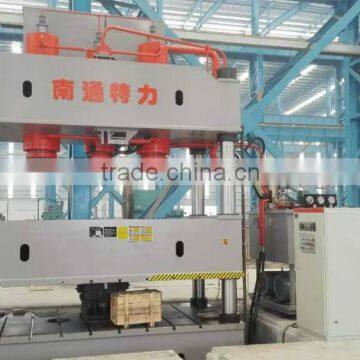

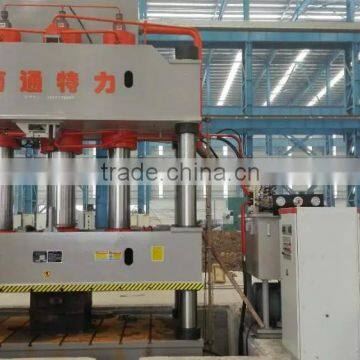

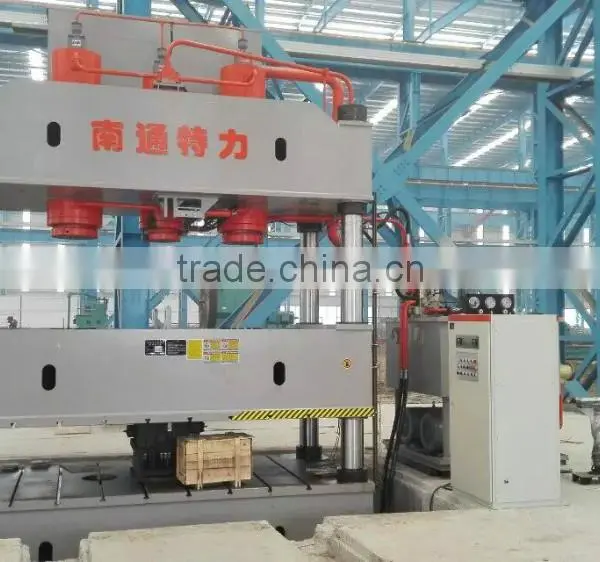

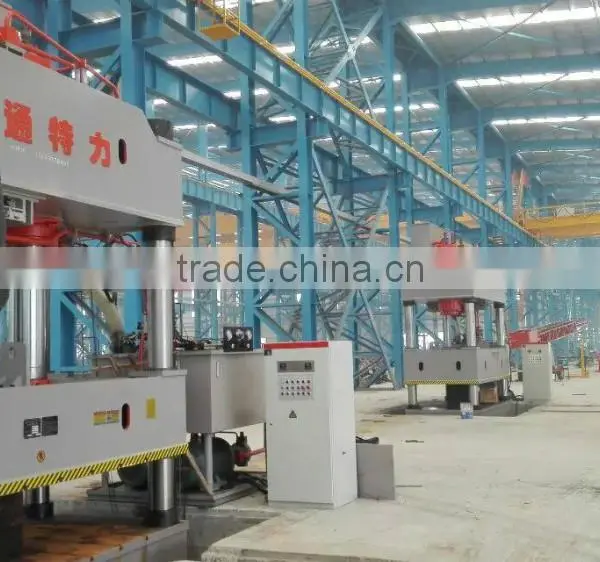

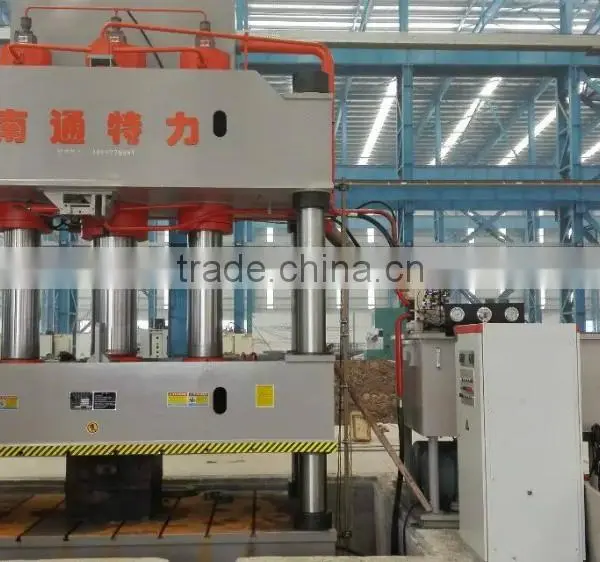

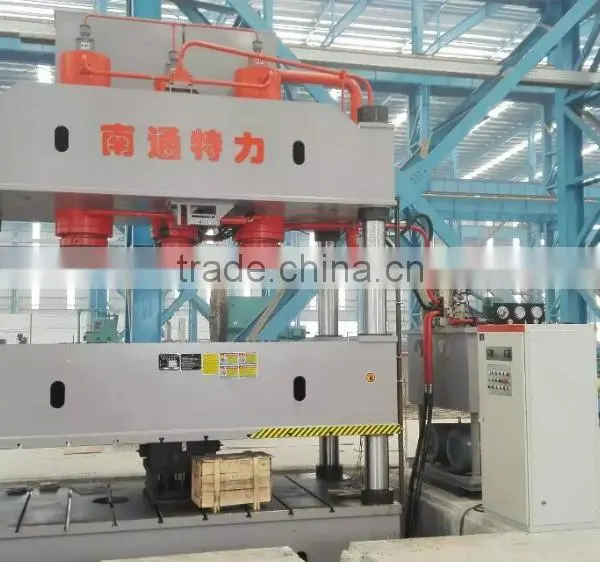

Y32 Series Portable Hydraulic Press Machine

This machine is suitable for pressure processing of plastic matericals; it is used in fitting, bending, side bending and sheet metal drawing ect. It can be also used for correcting, pressing, grinding wheel modularizing, cold extrusion of metal parts, and plastic, sintered and insulating material compacting.

Stamping buffer device

moving table

oil heating & cooling device

stroke sensor

industrial touched screen

floating guide and rolling racket for die changing

die illuminating device

tool quick clamp device

slide locking device

proportional pressure & speed adjusting device for slide

light curtain

ejcting device(hudraulic or mechanical)

PLC imported PLC

Power socket

die changing dolly

manipulator

imported seal

die

top located hydraulic system

die protecting device

TECHNICAL SPECIFICATIONS:

features

This machine adopts advanced design technology of three-dimensional computer controlled and three beams-four columns body structure which makes it classic, contracted and utility.

The separated hydraulic motive power mechanism and electric system ensure the visual performance and convenient service.

The centralized pushbutton control allows adjustment, hand operation and semi-automatic operation.

Working pressure, pressing speed and stroke limit of the press can be adjusted according to process requirement. Two methods of processing operation forming with fixed pressure and forming with fixed stroke can be accomplished. For forming foxed pressure the press can perform pressure holding and delayed automatic return after pressing process.

The hydraulic control system is composed of plug-in integrated valve which possess the high efficiency. The spool performance makes low noise and reduce the connecting pipeline and leak spot.

The pressure adjusted in this hydraulic control system is overflow valve which increase the precision and facility of the pressure adjusted.

The hydraulic oil filter, system are equipped on the machine.

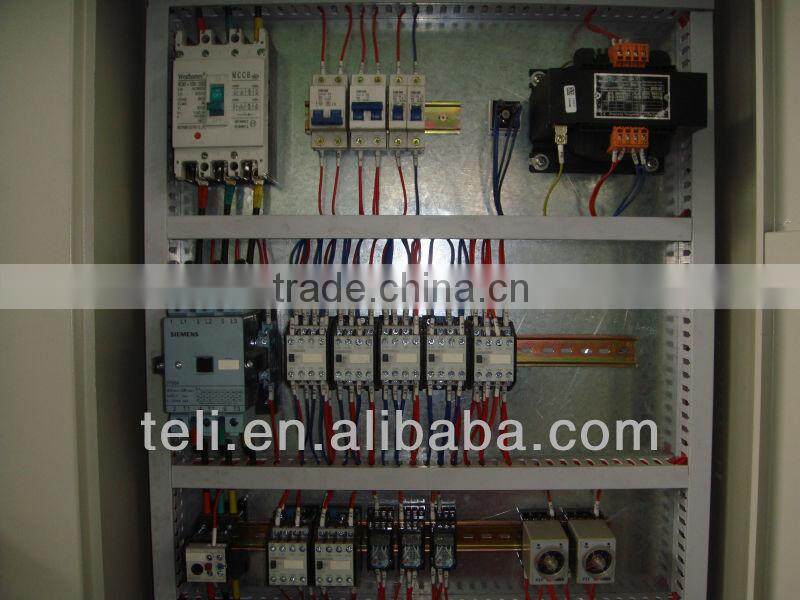

Aprogrammable controller is used in the electric control system which makes the performance reliable.

The machine possesses less area, have compact construction and attractive appearance.
