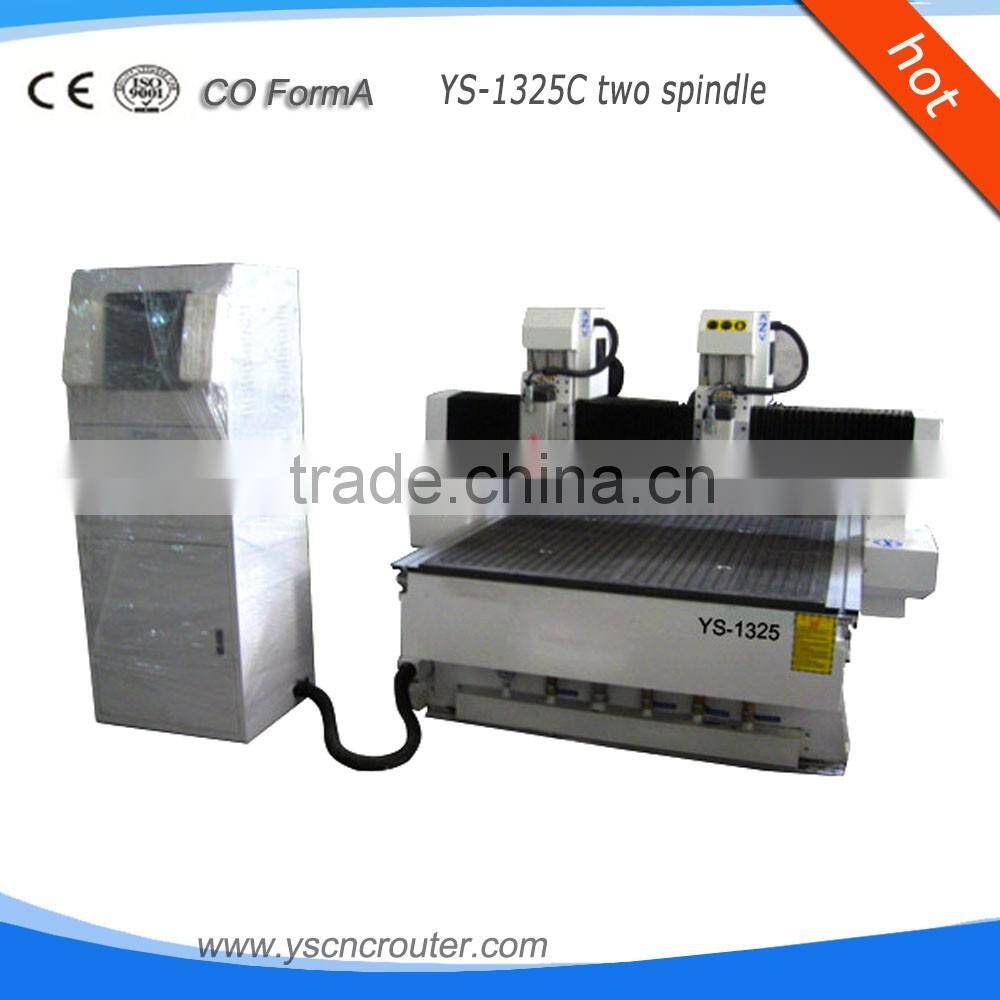

Professional manual woodworking cnc router machine with low price 1300mm*2500mm 3-axis Double woodworking cnc router machine factory
Model NO | YS-1325C-2 Wood CNC Router |
Table Size | 1440×3000mm |
X Y Z Traveling Area | 1300x2500*200mm |
Table Structure | Vacuum Table |
X Y Transmisson | Rack Gear |
Z Transmission | Germany Neef Ball Screws |
X Y Z Guide Rail | TAIWAN HIWIN Square Rail |
Spindle Power | Double 3.0 kw Italy HSD Air Cooling Spindle |
Driving System | Japanese YASKAWA Servo Motor |
Max Spindle speed | 18000r/ min |
Max Traveling speed | 45m/s |
Max Working speed | 38m/s |
Processiong Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Working Voltage | 380V 50Hz |
Work-holding | T-slot Clamping |
Processor | Windows /100MHz |
Interface | PCI |
Command | G*.u00*.mmg*.plt |
Operation system | DSP |
Power(not include the spindle) | 500W |
Net weight /Gross Weight | 1100KGS /1200KGS |
Package dimension | 3200*1840*1900mm |
Double woodworking cnc routerFunctional Characteristics
1. Vacuum table with 6 vacuum zones, which can absorb different size materials, no oil vacuum pump, high suction, more convenient, stable capability.
2. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
3. Double 3.0 kw Italy HSD Air Cooling Spindle, Max speed is 25m/min. With water cooling spindle highly upgrade the processing speed.
4. The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
5. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.
6. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
1300mm*2500mm woodworking cnc router machine
Apply to industry and materials
Furniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production
1.2 year for the whole machine.
2.Detailed manual and video to guide the uses how to use the machine and maintena
nce, also supply the specification settings for the speed and power to engrave or cut
various material.
3.Important parts like the control card, we need you send the broken one to us and
we reback you a new one in warranty period.
4.If you meet the problems, we can solve it with pictures, videos etc, communication
online/calling, if necessary, offer door-door service. But you should pay some fees like tickets etc.
1. Q:Are you a factory or trading company?
A:We are a manufacturer with export license
2. Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance toquality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and
packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
3: Q::If we do not know how to use the machine,can you teach us?
A:Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.
4. Q:How about your after-sales service?
A:We offer professional and timely aftersale 24 hours online service via phone,Whatsapp, Skype or MSN.
Jinan Yishun CNC Machinery Co.,Ltd is a famous CNC equipment manufacturer inChina for 9 years history, with register money RMB 10000,000, mainly focus on CNCrouter producing, marketing and service. Realize the potential growth by supplying CNC processing equipments, service and customized solutions to the customers all over the world. Continuously create long-time value for customers.
