900mm*1500mm stone cnc router atc stone cnc price desktop cnc router

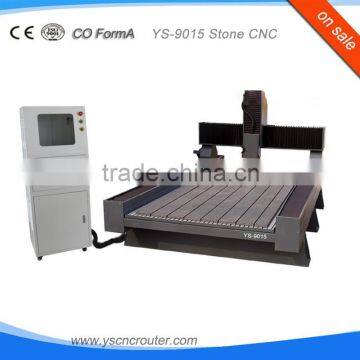

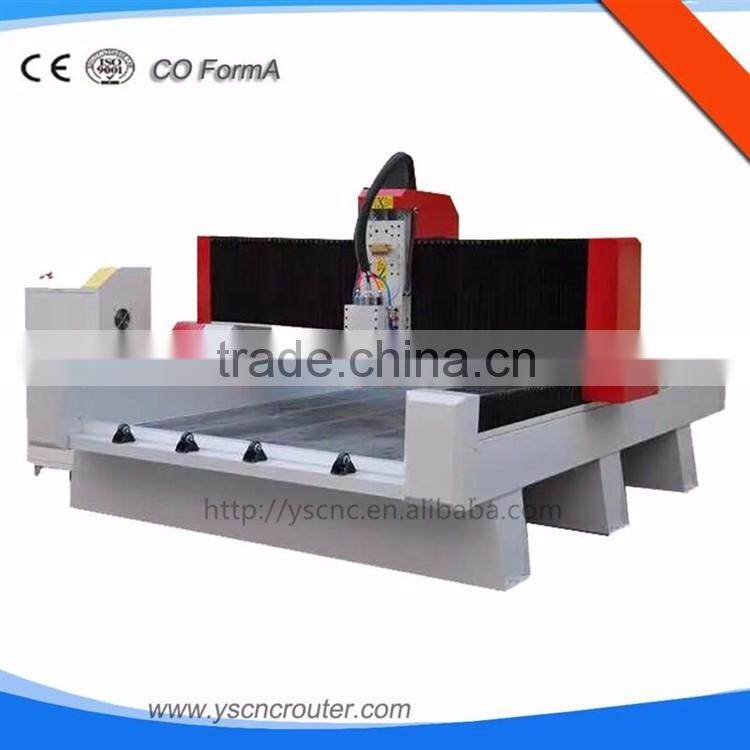

YS-9015 Marble Stone cnc router
Apply to industry and materials
This series of models are mainly used for heavy weight of the tile, blue stone,marble, granite,
white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and
engraving melting material.
Functional Characteristics
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dust proof system
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt Taiwan transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg
Performance Index
Model NO | YS-9015 Marble /Stone cnc router |
X,Y,Z Axis working area | 900mm*1500mm*300mm |
Table structure | Aluminum T-slot |
X Y transmission | Rack Gear |
Z Transmission | German Neef Ball Screws |
X Y Z guide rail | TAIWAN HINWIN Square rail |
Spindle power | 3.0kw spindle, 4.5kw, 5.5kw water cooling optional |
Max Spindle speed | 24000r/min |
Max traveling speed | 25m/s |
Max. working Speed | 18m/s |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Driving system | Stepper motor |
Command language | HPGL, G code |
Operation system | NCSTUDIO |
Working voltage | AC380V /50HZ |
Interface | USB |
Power(not include spindle) | 1840W |
Net weight/Gross weight | 1200KGS /1400KGS |
Package dimension | 1900mm*2700mm*1600 |
WORKING SAMPLE

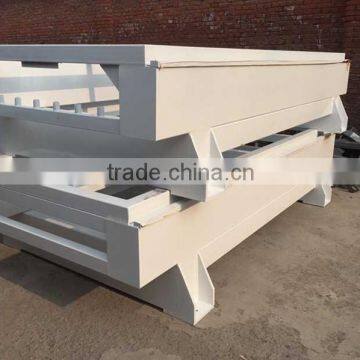

MACHINE PARTS
♦ 24 hours technical support online.
♦ We offer detailed User Manual together with machine
♦ We offer machine operation video free
♦ We offer training in our factory free
♦ Engineers available to service machinery overseas
Shandong Yishun CNC Machinery Co., Ltd. is the manufacture of CNC Router, Plasma Machine and Laser machinewith well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Looking for agents all over the world!
Q1: How to get the most suitable machine and best price
Please tell us:
1.the material you wanna handle
2.the Max size of these materials(length,width and thickness)
3.the work you wanna handle with this machine(Engraving ?Cutting ?Or others?)
Q2: Do you have the manual of machine.
Yes,we can provide manual,CD software and video to help you operate the machine expertly.
Q3: If we do not know how to use the machine,can you teach us?Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.
Q4.How about your after-sales service?
We offer professional and timely after-sale 24 hours online service via phone,Skype or MSN.
Q5.How about your guarantee period?
2 years.
