Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Plate Rolling Machine for Ships

Plate Rolling Machine for Ships

Name: Plate Rolling Machine for Ships
Brand: haiwei
SKU: 100727487
Availability: InStock

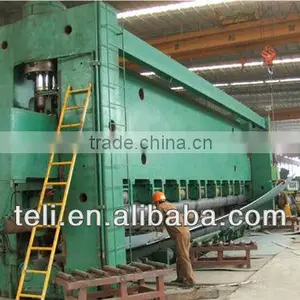

Plate Rolling Machine for Ships thumbnail-1

US$ 60,000 - 90,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

haiwei

Model Number:

W11 series

Contact Supplier Request Quote Chat Now

Nantong Teli Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name haiwei

Model Number W11 series

Machine Type Roller-Bending Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services Other, Piercing & Punching

Certification Other, SGS

Specifications

1,advanced Japanese advanced system
2,max thickness:25mm
3,max width:125000mm
4,high precision and working efficiency

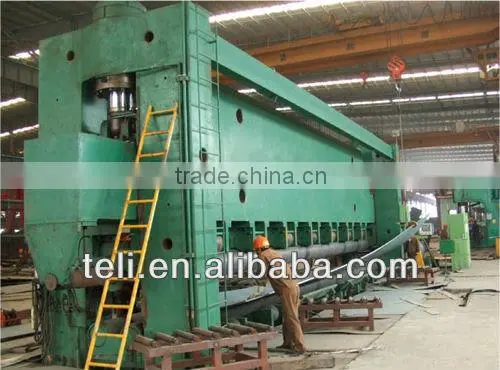

W11-20*12500 rolling machine for ships.

summarize:

This machine used to coil plate into different sharps such as cylindrical form, conic form and arc, it adopted Japan hydraulic technical.

1, main technical data:

upper roller adding pressure: 490T

Max width of roll board 12500mm

The length of working rolls 12600mm

Up roll diameter Φ380mm

Down roll diameter Φ320mm

Up Support roll diameter: Φ350mm

Down support roll diameter: Φ270mm

Distance between two down rolls 440mm

Support rolls group: 7

No rolls of each group: 2 upper/ 4 down

Drive speed about 3.5m/min

Upper roll move speed while add pressure: 150mm/min

Max capacity of coiled board : T20*B125008R500(σs≤345Mpa)

Max stroke of upper roll: 410mm

Hydraulic system working pressure: 19.5MPa

Hydraulic motor 22KW

Main motor 55KW

Power: 380V50HZ

plate rolling machine for ships adopts a 3-roller symmetrical structure. the upper roller makes vertical movement at a symmetrical position in the center between the two lower rollers. the hydraulic driving is achieved through the action of the oil in the hydraulic cylinder on the posion. the two lower rollers make rotation and provide the plates with torque through the engagement between the gear of the moderator and gear of the lower roller.several groups of support rollers are devised on the lower side of the two lower rollers to enhance the rigidity of the lower rollers and enables vertical adjustment.on the upper side of the upper roller. there is a rigid beam. and between the beam and the upper roller, there are several groups of support rollers to enhance the rigidity of the upper roller. the machine is fit for bending the work-piece in arc shape and with excessive width.
