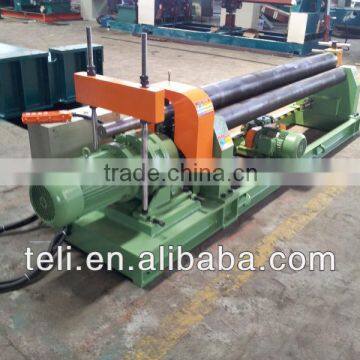

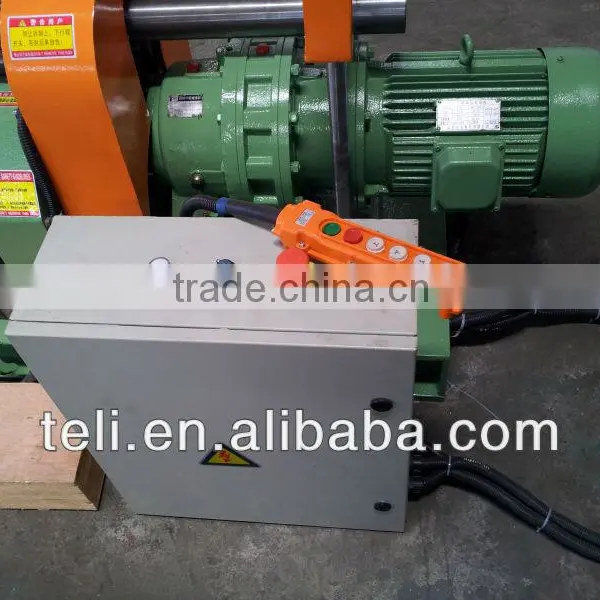

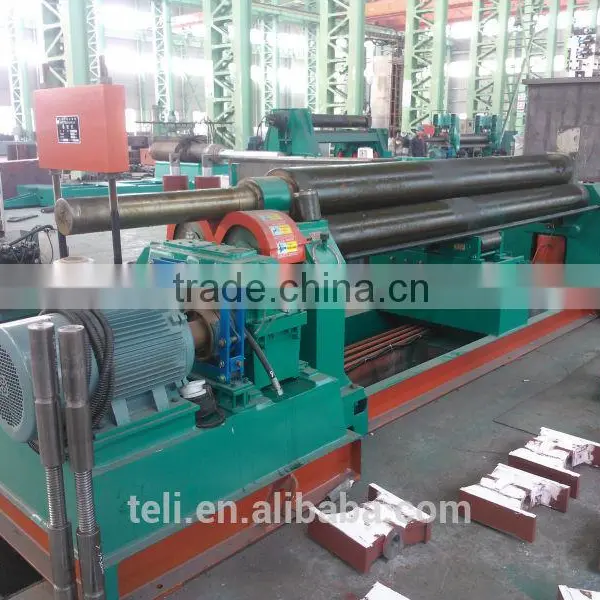

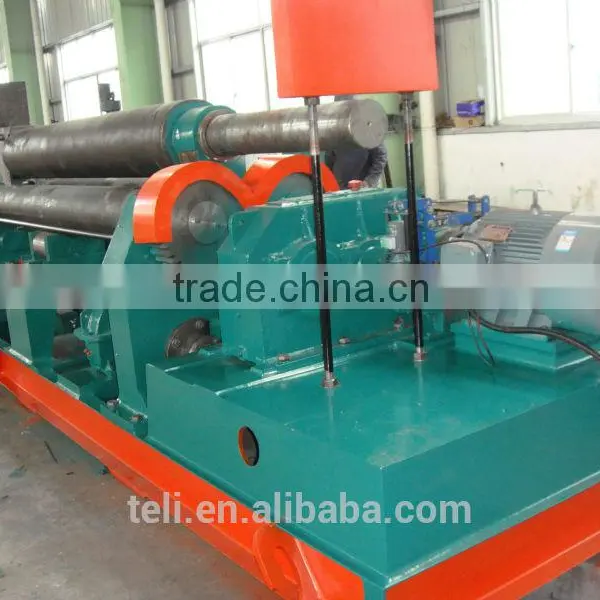

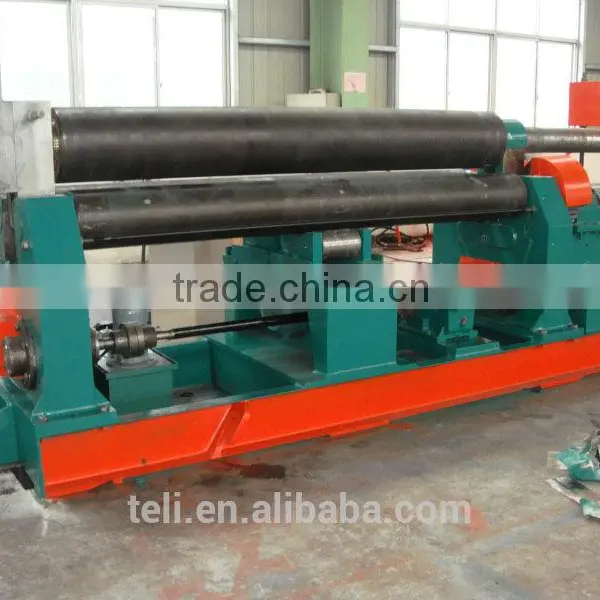

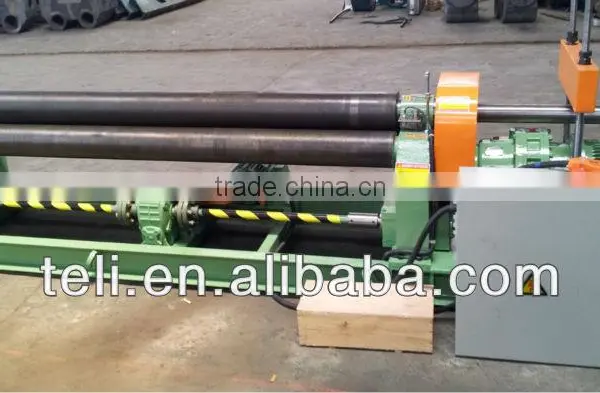

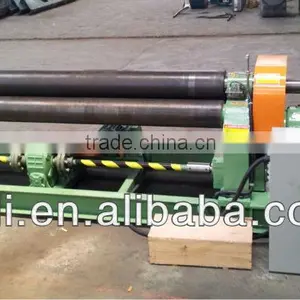

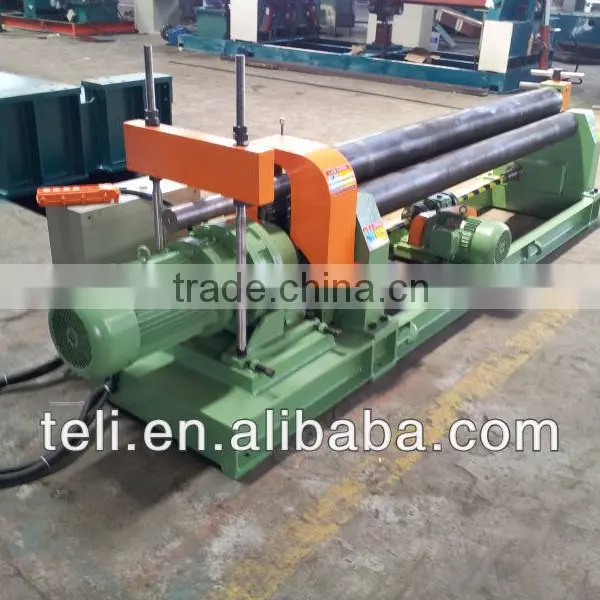

W11-6×3000 Rolling Machine
Ⅰ Machine usage range:
This equipment is three rolls machine, upper roller can adjust. It is used to bend different diameter of steel into circle sharp. And it is widely used in chemical industry, ships industry and so on.
Ⅱ Main technical data:
Max thickness of plate |
6mm |
Min thickness of plate |
1 mm |
Max width of roll board |
3000mm |
Min diameter of bending circle |
Φ350mm |
Up roll diameter |
Φ250mm |
Down roll diameter |
Φ145mm |
The distance of two down rolls |
200mm |
Yield limit of sheet metal |
σs≤245Mpa |
Drive speed |
about 4.5m/min |
Main motor |
11kw |
Lifting motor |
5,5 kw |
Main speed reducer gear |
ZSY180 |
Vice speed reducer gear |
ZQ250 |
Dimension(length*width*height) |
4600mm*1300mm*1200mm |
weight |
3.8Tons |
Ⅲ Main structure and working principle :
3-1,this machine is upper roller adjust type, and upper roller in middle of two down rolls and drove by lead screw to move up/down and to bend the steel plate.
3-2 the equipment composed of working parts and drive system two parts. The working parts composed of right and left bearing plate , one upper roll, two down rolls (these three rolls material is 45# steel with heat treatment. ), lifting screw and worm wheel and other accessory parts. Down rolls drive upper rolls to move. Upper rolls can adjust up/down. Drive system composed of main motor, main speed reducer gear and other accessory parts.
3-3 down rolls were drove by main motor and main speed reducer gear, the spindle of main speed reducer drive two down rolls by one group gears, the direction adjusted by the main motor.
3-4 upper rolls lifted by accessory motor and vice speed reducer drive worm pole and worm where of right/left rolls bearing plate.
3-5 unloading device is used for bending circle type to remove the work piece. while unloading the upper rolls move to up limit position, the balance device on upper rolls ends hit upper rolls to remove the work piece.
Main parts:
4-1 working rolls NANGANG
4-2 main motor SIEMENS
4-3 main electrical parts SIEMENS
4-4 main speed reducer JIN TAIXIN
