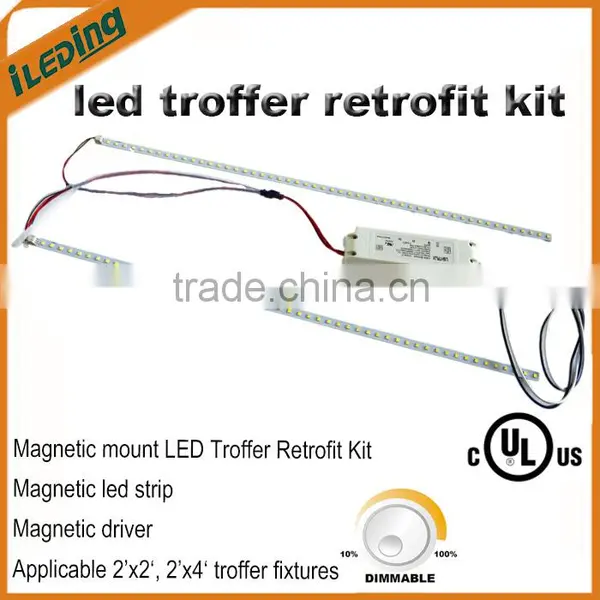

20W 40W 5000K 100-277V Magnetic Mount Strip Retrofit Kit
ILEDING’s LED Linear Troffer Retrofit Kit Strips are economic LED replacements
for 1’x4’, 2'x2' and 2'x4' existing recessed troffers in drop-in ceilings. The kits are
easily field installed using simple hand tools with minimum modification to the
existing housings.
Feature
• Voltage:100-277V/60Hz
• Lumen Efficiency:112-125Lm/W LED,96-105Lm/w Luminaire
• Power Factor:up to 0.998
• CCT:3000, 3500, 4000, 5000K
• CRI (Ra):82 nominal
• Mounting method:Magnetic led strips and driver, quick-connect
• Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” style fixtures
• Dimmable is also available
| Rated Power |
LED Strips Q’ty x Length |
Model No. | Lumen | Ra | CCT | Beam Angle |
Fits Fixture | Mounting |
| 20W | 2pcs x 550mm | RG-22TR20WXXK | 2500 | 82 | 5000K | 140° | 2’ x 2’ Troffer | Magnetic |
| 40W | 2pcs x 550mm | RG-22TR40WXK | 4500 | 2’ x 2’ Troffer | Magnetic | |||
| 40W | 2pcs x 1100mm | RG-14TR40WXXK | 4500 | 1’ x 4’ Troffer | Magnetic | |||
| 40W | 2pcs x 1100mm | RG-24TR40WKKX | 4500 | 2’ x 4’ Troffer | Magnetic | |||
| 40W | 4pcs x 550mm | RG-24TR4S40WXXK | 4500 | 2’ x 4’ Troffer | Magnetic |
