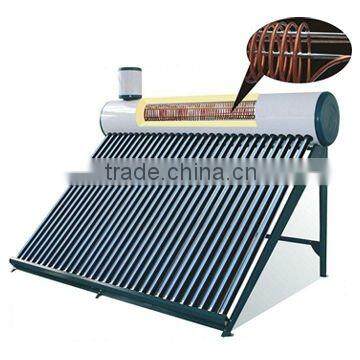

Preheated Integrated Solar Energy System

Specifications

preheated integrated solar energy system

Characteristic:

1. use in any time: it adopts advanced design idea and integrates with high efficiency preheated patent technique. So it can warm the cold water rapidly when it flows through special pipe. It can overcome the short of traditional solar water heater, such as slow heating, long waiting time.
2. more capacity: we adopt special exchanging heat mode, it avoids mixed effect. So cold water can be heated at any time.
3.  strong hydraulic pressure: the hydraulic pressure is same as tap water. It is very suitable for tired person.
4. economical and environmental protecting: there is no pollution when it is working since it depends on sunshine, green and economical
5. easy operation: it can supply water automatically, you can take it easy and enjoy good time
6. fashionable: the appearance is fashionable and it can great integrate with your fitment.

solar energy system Specification:

1. material of inner tank: SUS 304—2B stainless steel , with the thickness of 0.4mm
2. material of outer tank :color steel/ stainless steel, with the thickness of 0.4mm
3. frame: aluminum alloy/galvanized steel / stainless steel
4. heat exchanger: red copper with dia 12mm, thickness is 1mm
5. pressure: 6 bar
6. heat preservation:72—80h

um tube solar water heater

 Working principle:

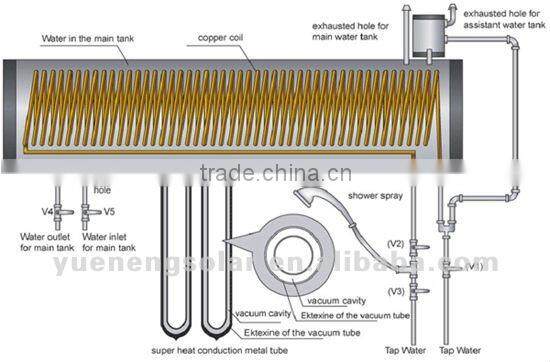

 preheated integrated solar energy system Working principle:

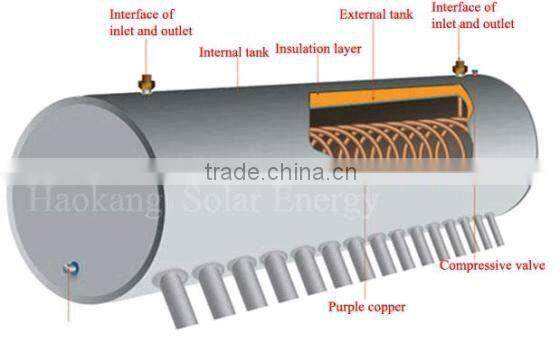

The vacuum tubes with heat pipe absorb solar energy and transfer heat into the tank.But the water in the tank is not to use,the tank just as a storage tank.One copper coil is installedin the tank as the heat exchanger. When water flows into the copper coil,it absorbs the heat of the water in tank via copper coil.

solar energy system Product display:
