Thermo-siphon Pre-heated Solar Water Heater

Specifications

Thermo-siphon pre-heated solar water heater
1)For 5years warranty
2)For 2% free spare parts!
3)Sample offer!
4)OEM service

Thermo-siphon pre-heated solar water heater specification:
1. Inner tank: 0.4mm-0.6mm thickness SUS 304-2B Stainless steel
2. Tank diameter: 470mm/480mm outer tank, 360mm/370mm inner tank
3. Vacuum tube: QB-AL-N/AL-47-1500mm/58-1800mm
4. Outer tank: 0.31mm-0.4mm thickness Wiredrawing Metal Plate/Fluorin Carbon Plate/Color Steel
5. Frame: 1.2mm thickness Aluminum Alloy/1.5mm thickness Galvanized Steel
6. The material of insulation: 55-60mm thickness Polyurethane
7. The reflector: Stainless steel /Aluminum plate
8. Working efficiency: >95%
9. Heat Preservation time: 72-96hours
10. Hail resistance: 25mm
11. Inlet/oulet size: 1/2'', 3/4''
12. Tank capacity: 100L/110L/115L/135L/150L/165L/200L/250L/285L/300L
13. Air vent: 100% copper vent

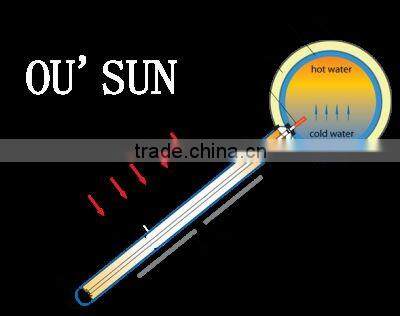

how pressurized solar water heater works

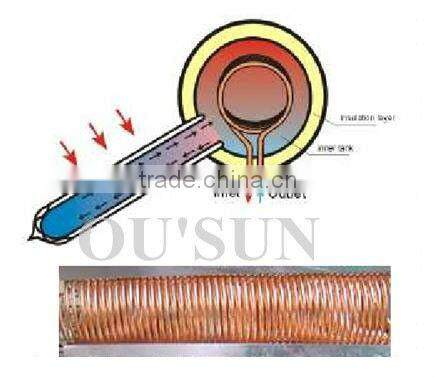

All the parts are the same to non pressure solar water heater, except adding a heat exchanger copper coil inside big tank. When cold water flows into the copper coil, it absorbs the heat of the water in big tank via the copper coil, to get hot water.  It can bear the pressure from tap water (6 bars), so there will be a more comfortable shower. Meantime hot water that we use not transfer in solar tank directly, the hot water is more clean and healthy.

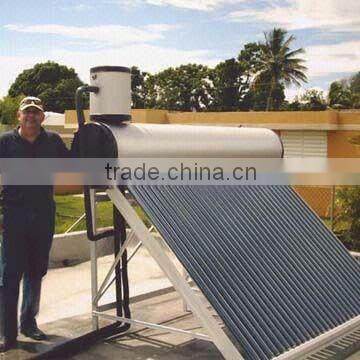

     This type, we need to install auxiliary tank, it just makes up some water into tank in case evaporating from air vent. Because we do not use water from the big tank, the tank just work as heat source to heat water inside copper coil. So after days or months, water will be less and less, auxiliary tank will auto feeding water into the big tank

 Pressurized solar water heater specification
