Compact Copper Coil Pressurized Solar Hot Water Geysers
Features:
1. Stable and reliable performance and well wind resistance.
2. Vacuum heat-collecting tubes at high temperature.
3. It can withstand pressure of tap water when it works, and copper coil in tank bear pressure.
4. Use in any time: it adopts advanced design idea and integrates with high efficiency preheated patent technique. So it can warm the cold water rapidly when it flows through special pipe. It can overcome the short of traditional solar water heater, such as slow heating, long waiting time.
5. More capacity: we adopt special exchanging heat mode, it avoids mixed effect. So cold water can be heated at any time.
6. Economical and environmental protecting: there is no pollution when it is working since it depends on sunshine, green and economical.
7. Easy operation: it can supply water automatically, you can take it easy and enjoy good time.
Specifications:
Vacuum tube: 47mm-1500mm, 58mm-1800mm co-axial structure high borosilicate 3.3 glass vacuum tube with tube wall thickness of 1.6mm.
Inner tank material: SUS304-2B Stainless Steel with thickness of 0.3-0.4mm.
Outer tank material: Color powder coating steel / Stainless steel.
Frame material: Galvanized steel plate with thickness of 1.5mm.
Frame optional angle: 0o,25o,38o,45o.
Capacity of water tank: 100L,150L,200L,240L,300L,360L. 40L/person for Max consumption.
Assistant tank: 5L,8L,10L,12L.
Copper coil: With dia of 12mm and wall thickness of 1.0mm.
Heat preservation layer: high pressure automatic polyurethane foaming layer
Heat preservation hours: 72 hours.
Tube size | 47mm*1500mm | 58mm*1800mm | |||||||||||||
Vacuum tube Qty | 10 | 15 | 17 | 20 | 25 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 32 | 35 |
Tank capacity( L ) | 60 | 90 | 100 | 120 | 150 | 80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 320 | 350 |

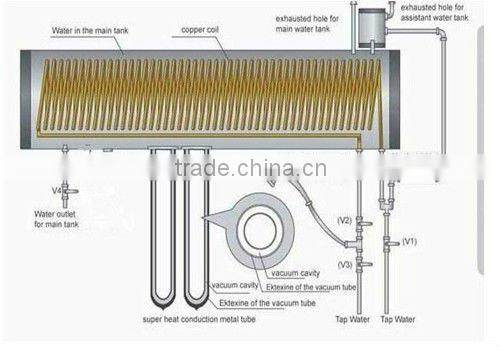

The water in water tank is for heat preservation and circulation. The vacuum tube collector absorbs sunshine to heat the water in water tank, when using the hot water, the cold water flows through the inlet, the copper coil absorbs heat then transfer to the cold water, so that temperature rise up ceaselessly, due to the original feature of the copper coil, the water temperature of the outlet is close to the water temperature of water tank(difference within 3 degree centigrade). Therefore, cold water flow via copper coil and absorbs much heat, when water flow past outlet, the temperature is usally hot enough to use.
Product show:
We Design, Manufacture and deliver the sun’s unlimited and cheapest energy to your daily life.OU’SUN Solar Energy Technology Co., Ltd, With more than 10 years development and technology bring in, Products are acceptable and popular in foreigner country with serious quality control, on time delivery and good export service.
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
1- What is your Delivery Time?
7days for samples load
10days for container load
2- Can you accept OEM ?
YES
3- What is your Payment Term?
We accept T/T, L/C at sight, Western Union and PayPal.
4-What is your MOQ?
1 sets
5-What is your Price Term?
FOB, CFR and CIF acceptable
