100L air source heat pump water heater

Specifications

air source heat pump water heater
1For 5 years warranty!
2.Free 2% spare parts!
3.Sample offer!
4.OEM is ok!

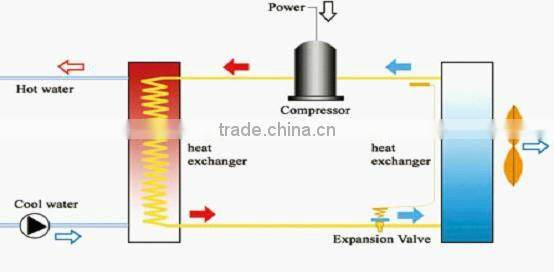

 working principle:

A heat pump is a device that uses a small amount of energy to move heat from one location to another. Heat

pumps are usually used to pull heat out of the air or ground to heat a home or office building, or they can be

switched into reverse to cool a building. If you know how an air conditioner works, you already know a lot about

how a heat pump works, because heat pumps and air conditioners operate in very similar ways.





characteristics:

1.Safety, the electricity is completely separated from water, without any poisonous gas, liquid or trash letting

while running.

2. Save energy , saving more energy by 70% comparing with ordinary water heater.

3. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate

 the ozonosphere. So it benefits the society.

4. Supply water anytime, and not be affected by geographical and weather changing.

5. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

6. Using module design, it is very easy to install. It can be put on the roof, in the balcony, in the courtyard,

indoors, etc. And it can be composed with the building perfectly.



Specification:

Type		OSHP-A01
Rated input power		W		1500
Rated heat volume		W		5000
Rated electricity		A		8
Rated power of fan		W		40
Water tank of capacity		L		300
Pressure of water tank		Mpa		≤60
Working condition				-10°C~40°C
Source of voltage				220V/50Hz
color				ash,purple,golden
Rated hot water			L/h	130
Max. Tem of water			°C	60
Dimension (longth*wideth*high)	Outside unit		Mm	750×260×550
	Water tank		Mm	570×1750
Waterproof grade			IP×4
Noise			DB(A)	≤60
Weight	Outside unit		Kg	47
	Water tank		Kg	87

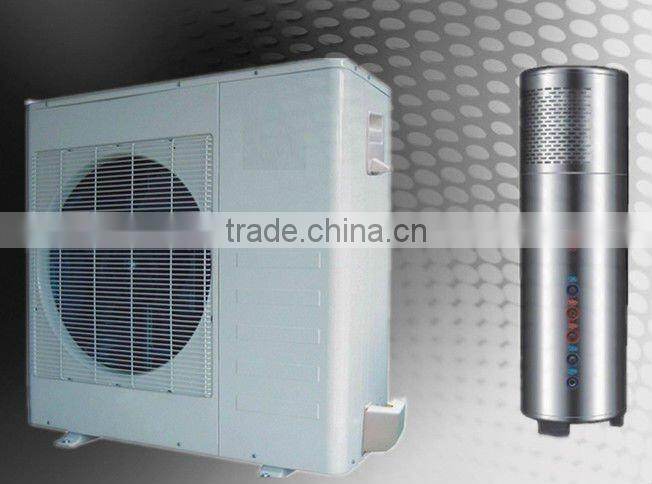

 Picture display:
