Adjustable Handle

Adjustable Handle thumbnail-1
Adjustable Handle photo-1
US$ 0.1 - 5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hygoal
Model Number:
HG-C-176
Contact Supplier Request Quote Chat Now
Ningbo Yinzhou Hygoal Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Hygoal
Model Number HG-C-176
Material Plastic
Usage Cabinet, Drawer, Dresser, Wardrobe

Specifications

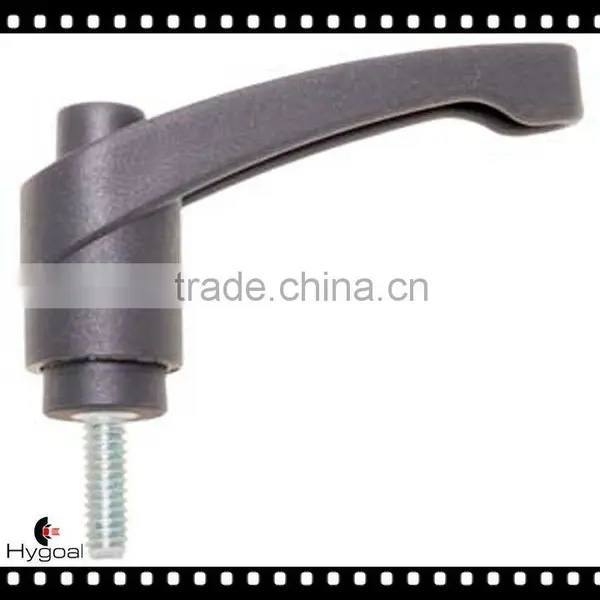

1Black Thermoplastic Adjustable Handle.
2Available with Plated Steel Stud insert.
3Different thread size are available.

Adjustable handle,Adjustable Clamping handle, adjustable clamp handle.Male clamp handle.



Hygoal supply all kinds of clamp handle.



These adjustable handles act as a standard clamping lever yet can adjust to several positions. Pulling up on the handle disengages it, while the insert or stud remains stationary, allowing you to adjust the handle to the desired position. Releasing the handle reengages it for tightening and loosening . Allows for convenient positioning for maximum leverage, as well as saving space and keeping the handle out of the way. Available with stainless steel insert or stainless steel stud. Body is black thermoplastic.



Base Diameter

0.51 inch

Component Material

Steel

Handle Length (From Mount Center)

1.69 inch

Handle Material

Thermoplastic

Handle Style

Teardrop Design

Measurement System

Inch

Mount Type

Threaded Stud

Overall Body Height

1.30 Inch

Overall Height

1.50 Inch

Stud Length

0.75 Inch

Stud Thread Size

10-24

ROHS Compliance

Yes



 Adjustable Handle

Line Drawing:

A

10-20

B

0.75 Inch

D

0.51 Inch

H

1.50 Inch

J

1.30 Inch

L

1.69 Inch

Black Thermoplastic Adjustable Handle Plated Steel Stud Inch:



A B D H J L Item No.
10-24 0.750 0.510 1.500 1.300 1.690 HG-C-176
1/4-20 0.500 0.510 1.500 1.300 1.690 HG-C-177
1/4-20 0.750 0.510 1.500 1.300 1.690 HG-C-178
1/4-20 1.000 0.510 1.500 1.300 1.690 HG-C-179
1/4-20 1.250 0.510 1.500 1.300 1.690 HG-C-180
1/4-20 0.750 0.590 1.890 1.610 2.560 HG-C-181
1/4-20 1.000 0.590 1.890 1.610 2.560 HG-C-182
1/4-20 1.500 0.590 1.890 1.610 2.560 HG-C-183
5/16-18 0.750 0.590 1.890 1.610 2.560 HG-C-184
5/16-18 1.000 0.590 1.890 1.610 2.560 HG-C-185
5/16-18 1.500 0.590 1.890 1.610 2.560 HG-C-186
3/8-16 1.000 0.590 1.890 1.610 2.560 HG-C-187
3/8-16 1.500 0.590 1.890 1.610 2.560 HG-C-188
5/16-18 0.750 0.710 2.480 1.970 3.350 HG-C-189
5/16-18 1.000 0.710 2.480 1.970 3.350 HG-C-190
5/16-18 1.500 0.710 2.480 1.970 3.350 HG-C-191
3/8-16 1.000 0.710 2.480 1.970 3.350 HG-C-192
3/8-16 1.500 0.710 2.480 1.970 3.350 HG-C-193
3/8-16 1.750 0.710 2.480 1.970 3.350 HG-C-194
3/8-16 2.000 0.710 2.480 1.970 3.350 HG-C-195
1/2-13 1.500 0.710 2.480 1.970 3.350 HG-C-196
1/2-13 2.000 0.710 2.480 1.970 3.350 HG-C-197





 Adjustable Handle
