Specifications

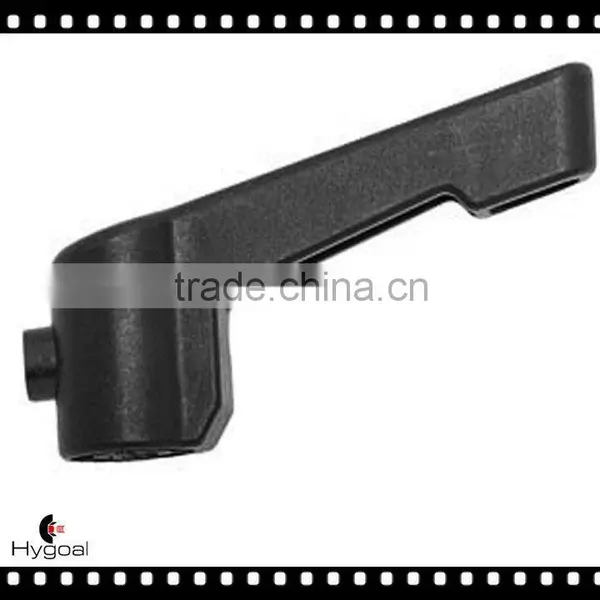

1Black Thermoplastic Adjustable Handle.2Adjustable Handle Thru-Hole.
3Different thread size are available.
Adjustable handle,Adjustable Clamping handle, adjustable clamp handle.Female clamp handle.
Hygoal supply all kinds of clamp handle.

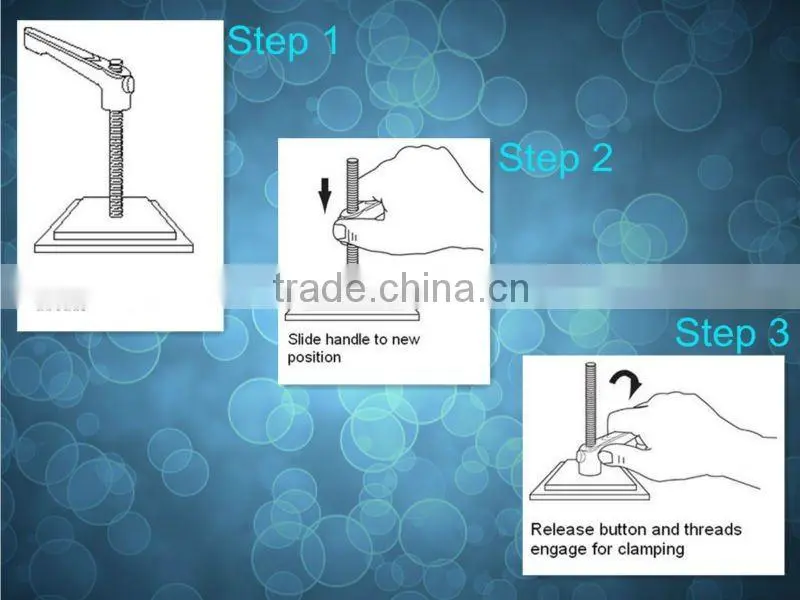

The thru-hole allows for quick clamping . Ideal for repetitive tightening oprations.The handles are
available in die-cast zinc or plastic. Internal thread mechanism is made from carbon steel. Metric
threads available as special order. Please call for price and delivery.
Body Diameter |
13/16 inch |
Component Material |
Steel |
Handle Length (From Mount Center) |
2-9/16 inch |
Handle Material |
Plastic |
Handle Style |
Teardrop Design |
Hole Thread Size |
1/4-20 |
Measurement System |
Inch |
Mount Type |
Button Thread/Through Hole |
Overall Body Height |
1 Inch |
Overall Height |
1-3/4 Inch |
ROHS Compliance |
Yes |
Line Drawing: | |
B |
13/16 Inch |
C |
1 Inch |
D |
2-9/16 Inch |
E |
1-3/4 Inch |
Black Thermoplastic Adjustable Handle Thru-Hole Inch:
Plastic |
Die Cast |
|||||
Thread |
B |
C |
D |
E |
Item No. |
Item No. |
1/4-20 |
13/16 |
1 |
29/16 |
13/4 |
HG-C-165 |
HG-C-170 |
5/16-18 |
15/16 |
11/8 |
31/16 |
23/16 |
HG-C-166 |
HG-C-171 |
3/8-16 |
15/16 |
11/8 |
31/16 |
23/16 |
HG-C-167 |
HG-C-172 |
1/2-13 |
11/4 |
11/2 |
41/4 |
215/16 |
HG-C-168 |
HG-C-173 |
5/8-11 |
11/4 |
11/2 |
41/4 |
215/16 |
HG-C-169 |
HG-C-174 |
