Ground Truck-Mounted Screw Electric Drilling Rigs

Specifications

   Ground Truck-Mounted Screw Electric Drilling Rigs

1.  General Description

Nanjing Roadsky Traffic Facility Co., Ltd specializes in manufacturing Solar Crawler Screw Electric Drilling Rigs and Truck-Mounted Screw Electric Drilling Rigs. It has fast traveling speed and excellent performance, because of installing lifting steel ball motor and adopting chain-type hydraulic system. High torque of power output, high speed and efficiency of piling and pile extracting. This machine adapts to various soil, which can one-time complete when piling holes in pebbles geology, without secondary pound.

Self generating power and external connection power are both suitable for this machine, which makes wide applications to piling work of construction industry, highway, power construction areas etc.

There are two series(ST Series, SC Series) of the machines, each series has two models, Trucked-mounted Screw Drilling Rig( ST1, ST2) and Crawler Screw Drilling Rig( SC1, SC2). You can choose according to your requirements.

2. Specifications

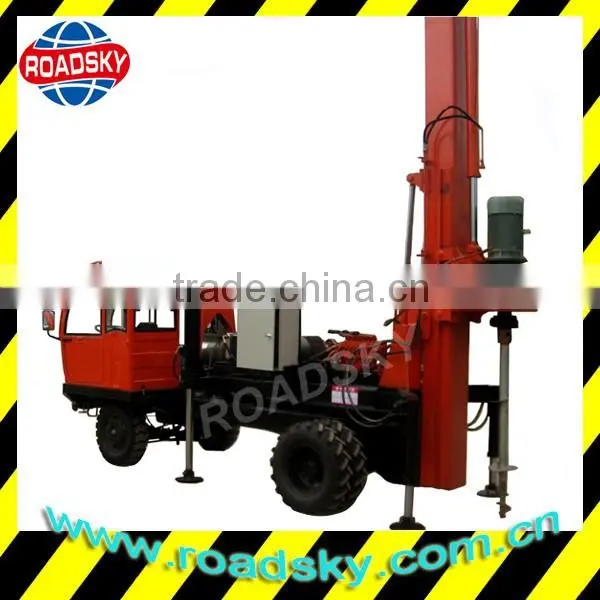

ST Series Truck-mounted Screw Electric Drilling Rigs

 (1) It adopts hydraulic system, adapt to various ground condition, one-time complete in

      pebbles geology.

 (2) Self generating power and external connection power are both suitable

 (3) Wide applications to piling work of construction industry, highway, power

      construction areas etc.

 (4) Power head reducer adopts Tricyclic Reducer which is dedicated in piling machines,

 (5) Dual Motor input at the same time, output power 22-30kw, hoist lifting 3

      tons, generator power 40-50kw, and the directions is controlled by hydraulic system.

 (6) High output torque, fast positioning and piling, high efficiency

SC Series Crawler Screw Electric Drilling Rigs

 (1)It can rotate 360°and can stretch forward and backward in a fixed position.

 (2)It adopts Japan Komatsu wide crawler chassis and hydraulic systems,

 (3)high torque hydraulic motor of SAI GM series with low speed,

 (4)It has fast and stable traveling speed and strong gradeability.

 (5)Installing a plow in front of the widen crawler chassis, which will be more stability when working.

 (6)Deploy high-power turbo power, high output torque of engine, using hydraulic system when it is drilling working.

3. Common Performance

Solar Screw Electric Drilling Rigs is specially designed for piling work at WIND FARM, SOLAR and PHOTOVOLTAIC POWER GENERATION construction and etc.

The piling diameter ranges from 150 mm to 800 mm while drilling depth from 1 m-15 m. The machine is equipped with 47KW diesel engine, which drives generator and output 40-50 kw power, which will:

 (1) drive the power head for rotation and drilling.

 (2) drive hoist for working with 7.5-11KW power;

 (3) drive the hydraulic system for working.

4.  Common Advantages

(1)High efficiency: Advanced technology in rotating drilling, no need to increase the load when drilling deeper, The power head has the characters of stable operation, high torque, high efficiency.

(2)Adapt to various ground condition and different geological conditions, meet a variety of construction requirements.

(3)Compact design, flexible operation and quickly moving are convenient for your works. You can choose the Truck-mounted or crawler-mounted models according to your requirements.

(4)You can match with different screw drilling rods according to your requirements, the range of holes’ diameter is 150-800mm and the range of holes’ depth is 1-15m.

(5) The models are on the basis of excavator technology, facilitate the maintenance of the machine in the future. This rotary drilling rig has low center of gravity, very steady and safe for moving and working.

(6)Low investment with high return. Our rotary rig has the exquisite design, economical price, reliable performance, no need people to clean the soil, save lots of labor, it is the best choice to replace the manual hole digger and big pile drivers in certain ranges.

  5.  Transportation

6.  Working at site

7.  Our service

Why Us?

 * Professional engineers team and Rich manufacturing experience

 * Prompt reply and Timely delivery

 * High quality & Competitive price

Any interests about Screw Electric Drilling Rigs, please feel free to send us inquiry or call us directly, we will be there to serve your needs timely.

Sincerely hope to establish good business relations with you, our distinguished client!
