Help CenterTank Truck
Negotiable
MOQ: 20 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tank Wagon
Preload:
31 - 50t
Dimensions (L x W x H) (mm):
As per client's requiremnt
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Tank Wagon
Preload
31 - 50t
Dimensions (L x W x H) (mm)
As per client's requiremnt
Material
Weather resisting steel
Place of Origin
China
Brand Name
MEC
Model Number
None
Product description:

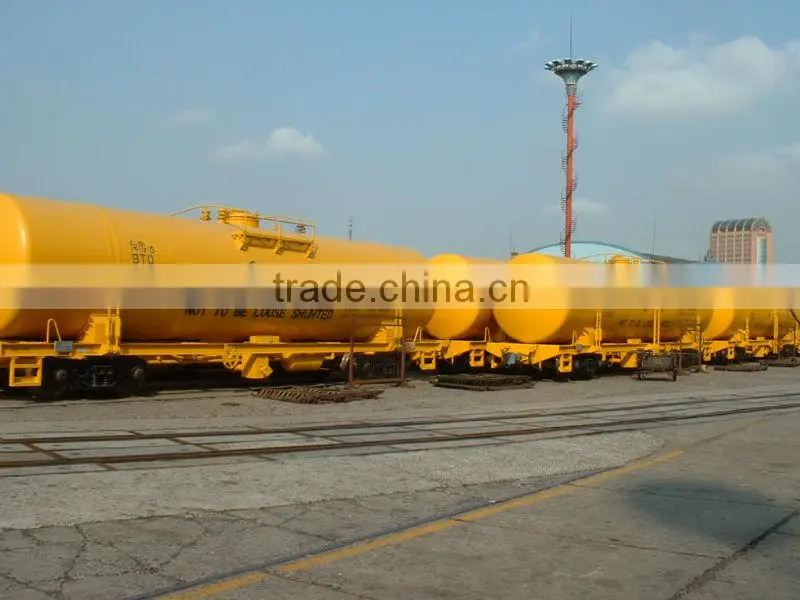

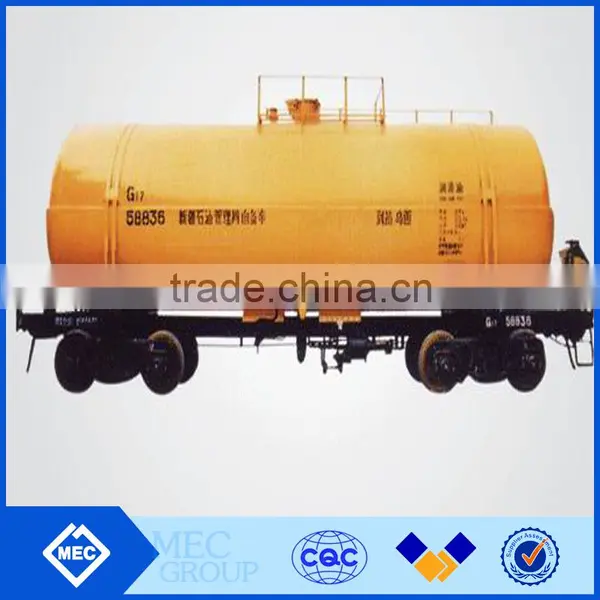

The oil tank truck is mainly used to deliver such chemical medium as gasoline, kerosene oil and diesel oil, sulfuric acid etc.
The car body is designed with bottom frame. The body mainly consists of tank barrel assembly, under frame assembly, air brake device, hand brake device, meter gauge bogie, oil drain device, coupler and draft gear etc. In the middle of the wagon body there are ladders and platform.
Main technical parameters:
| 1. | Tare weight |
62t |
| 2. | Loading capacity | 20.2t |
| 3. | Total volume/effective volume |
72/69.7m3 |
| 4. | Speed |
120km/h |
| 5. | Working pressure of tank body |
0.15Mpa |
| 6. | Minimum curve radius | 145m |
| 7. | Tank body dimensionL×Inner diameter |
10700×3000mm |
