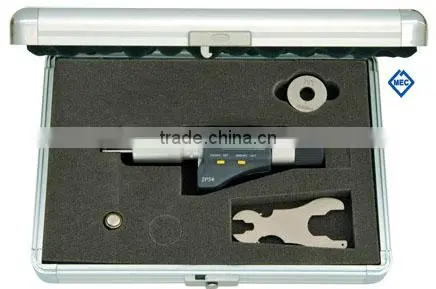

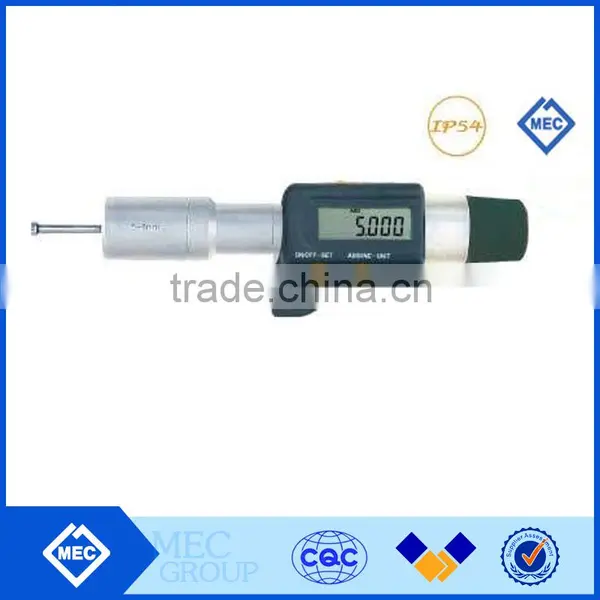

Electronic Three-point Inside Micrometers
- CHINA DALIAN
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | MEC | |
| Model Number | 385-05-920 |
Product Description
l Range 2-6mm without extension rods.
l Measurement can be taken closer to the bottom of the blind bore,
and can be taken into a deep hole with an extension rod.
l Highly durable because of carbide-tipped contact points; Ratchet stop.
l Protection level IP54.
l Criterion:DIN40050/IEC529.
l RS232 data output. Connecting cable: P1102(Optional).
Electronic system same as 132-XX-5X4 electronic outside micrometers
l Within 100mm/4″:Supplied with setting rings
l Range 2-6mm/0.08-0.28″; Two point models for very small holes.
l Range 6-12/0.275-0.5”; Without carbide-tipped contact points.
| Order No. | Range | Accuracy | Setting rings | L |
| Metric | ||||
| 385-01-920 | 2-2.5mm | 0.004mm | Φ2.5mm | 12.5mm |
| 385-02-920 | 2.5-3mm | 0.004mm | Φ2.5mm | 12.5mm |
| 385-03-920 | 3-4mm | 0.004mm | Φ4mm | 22.5mm |
| 385-04-920 | 4-5mm | 0.004mm | Φ5mm | 22.5mm |
| 385-05-920 | 5-6mm | 0.004mm | Φ6mm | 22.5mm |
| Inch | ||||
| 385-01-921 | 0.08-0.1" | 0.00016" | 0.1" | 0.5" |
| 385-02-921 | 0.1-0.12" | 0.00016" | 0.1" | 0.5" |
| 385-03-921 | 0.12-0.16" | 0.00016" | 0.16" | 0.9" |
| 385-04-921 | 0.16-0.2" | 0.00016" | 0.16" | 0.9" |
| 385-05-921 | 0.2-0.24" | 0.00016" | 0.24" | 0.9" |
| 385-06-921 | 0.24-0.28" | 0.00016" | 0.25" | 0.9" |
| Order No. | Range | Accuracy | Setting rings | L | A | Extension rods |
| Metric | ||||||
| 335-01-820 | 6-8mm | 0.004mm | Φ6mm | 53.5mm | 0.5mm | 100mm |
| 335-02-820 | 8-10mm | 0.004mm | Φ8mm | 53.5mm | 0.5mm | 100mm |
| 335-03-820 | 10-12mm | 0.004mm | Φ10mm | 53.5mm | 0.5mm | 100mm |
| Inch | ||||||
| 335-01-821 | 0.275-0.35" | 0.00016" | 0.275" | 2.14" | 0.02" | 4" |
| 335-02-821 | 0.35-0.425" | 0.00016" | 0.35" | 2.14" | 0.02" | 4" |
| 335-03-821 | 0.425-0.5" | 0.00016" | 0.5" | 2.14" | 0.02" | 4" |
